NSN 5985-00-773-3437 175B, 36039, 00-773-3437
Product Details | VARIABLE ATTENUATOR
5985-00-773-3437 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: 175B, 36039, 5985-00-773-3437, 00-773-3437, 5985007733437, 007733437
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-773-3437 | 00838 ( ATTENUATOR, VARIABLE ) |

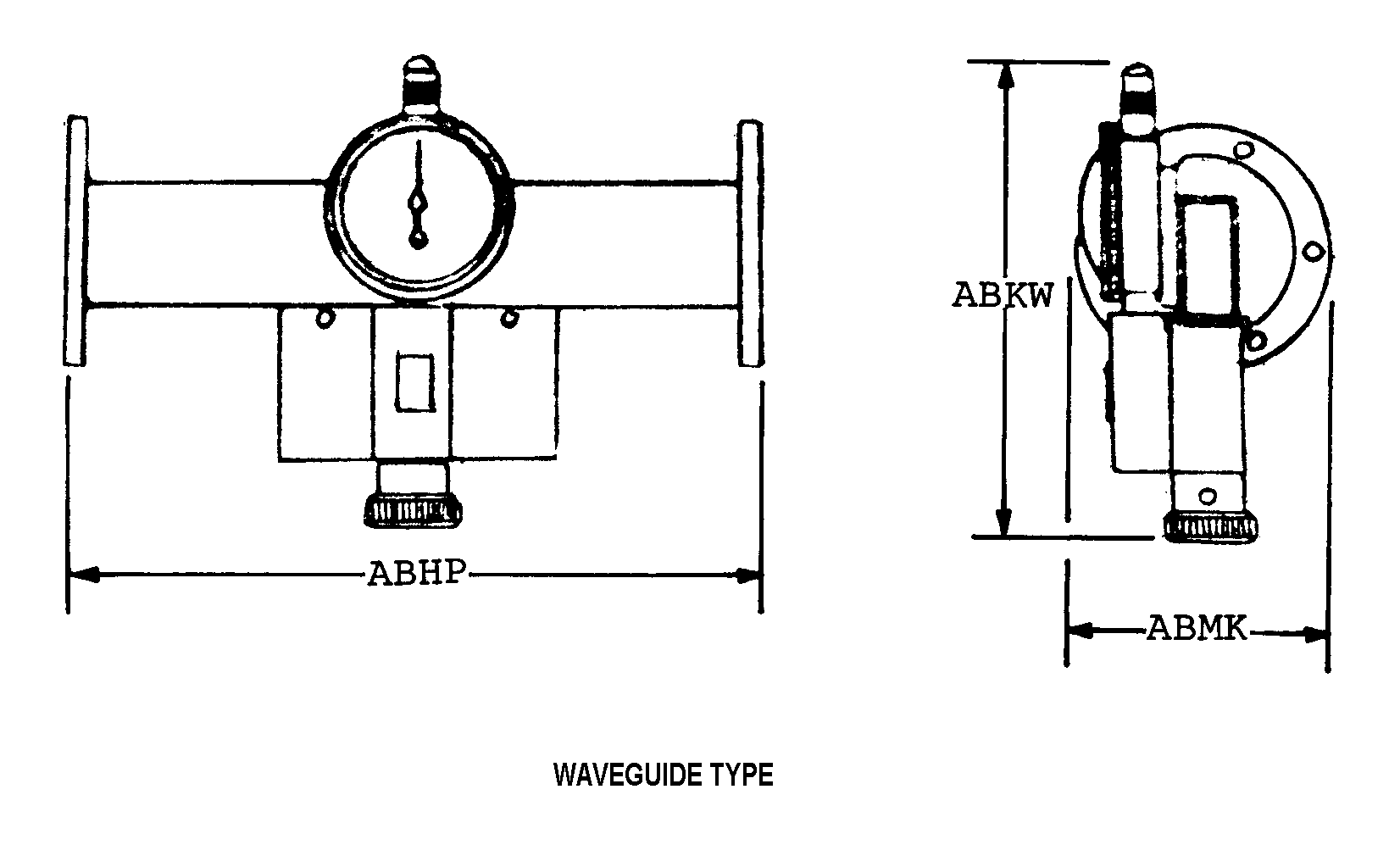

Drawings & Photos | NSN 5985-00-773-3437
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-773-3437
Technical Data | NSN 5985-00-773-3437
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 100.0 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 100 |
| ATTENUATION PER STEP IN DECIBELS | 1.0 |
| BODY STYLE | 6A WAVEGUIDE TYPE |
| OVERALL LENGTH | 17.000 INCHES NOMINAL |
| OVERALL HEIGHT | 5.312 INCHES NOMINAL |
| OVERALL WIDTH | 8.000 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 KNOB |
| TERMINAL TYPE AND QUANTITY | 2 FLANGE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL W/MOUNTING HOLES |
| MOUNTING FACILITY PATTERN | EIGHT POSITION CIRCULAR |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.265 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 4.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5985-00-773-3437
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
