NSN 5985-00-777-6370 20883810002, 2088381-0002, 20883812
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-777-6370 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 20883810002, 2088381-0002, 20883812, 2088381-2, 550004, 5985-00-777-6370, 00-777-6370, 5985007776370, 007776370, 385125902
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-777-6370 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-777-6370
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-777-6370
Related Products | NSN 5985-00-777-6370
Technical Data | NSN 5985-00-777-6370
| Characteristic | Specifications |
|---|---|
| ACTUATOR VOLTAGE IN VOLTS | 27.5 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 4 SOLDER STUD |
| COAXIAL CONNECTOR SERIES DESIGNATION | BN |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |

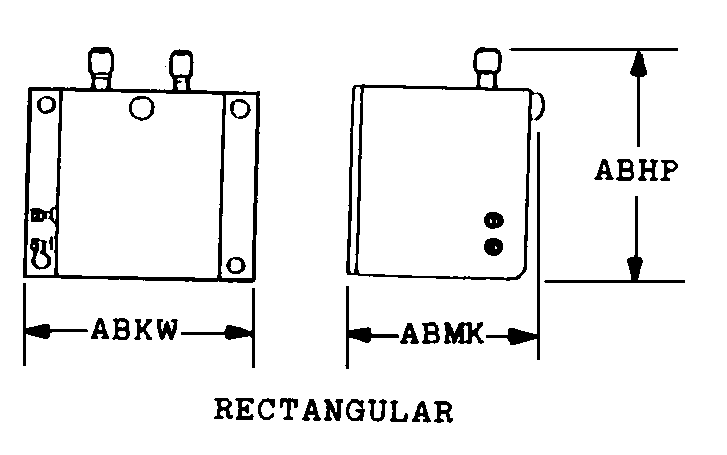

| BODY STYLE | 45B RECTANGULAR |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -65.0 TO 125.0 DEG CELSIUS |
