Product Details | VARIABLE ATTENUATOR
5985-00-837-6338 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: WL500, 5985-00-837-6338, 00-837-6338, 5985008376338, 008376338
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 DEC 1966 | 00-837-6338 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-837-6338
Cross Reference | NSN 5985-00-837-6338
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WL500 | 71590 | CRL COMPONENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-837-6338
Technical Data | NSN 5985-00-837-6338
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |

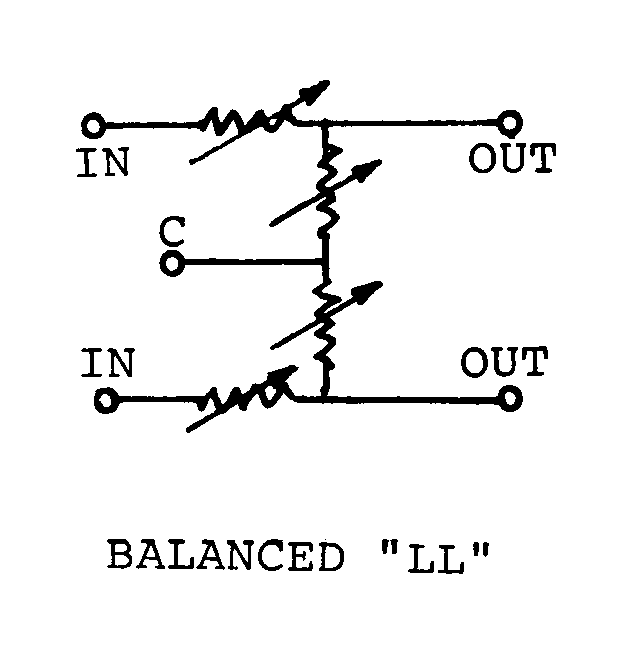

| SCHEMATIC DIAGRAM DESIGNATOR | 9D BALANCED LL |
| IMPEDANCE RATING IN OHMS | 500.0 INPUT-OUTPUT |
| POWER RATING | 20.0 WATTS AVERAGE |
| OVERALL ATTENUATION RANGE IN DECIBELS | ANY ACCEPTABLE |
| ATTENUATION VARIATION METHOD | CONTINUOUS |
| BODY STYLE | 33A CYLINDRICAL W/SIDE TERMINALS |
| OVERALL LENGTH | 3.078 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| BODY DIAMETER | 1.156 INCHES NOMINAL |
| BUSHING LENGTH | 0.375 INCHES NOMINAL |
| BODY LENGTH | 1.203 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 1.875 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNEF |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.375 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
