Product Details | VARIABLE ATTENUATOR
5985-00-883-3308 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: 5498916003, 549-8916-003, 5985-00-883-3308, 00-883-3308, 5985008833308, 008833308
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 APR 1980 | 00-883-3308 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-883-3308
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5985-00-883-3308
5985-00-883-5997, 5985-00-883-7243, 5985-00-883-7248, 5985-00-883-8463, 5985-00-883-9092
Technical Data | NSN 5985-00-883-3308
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |

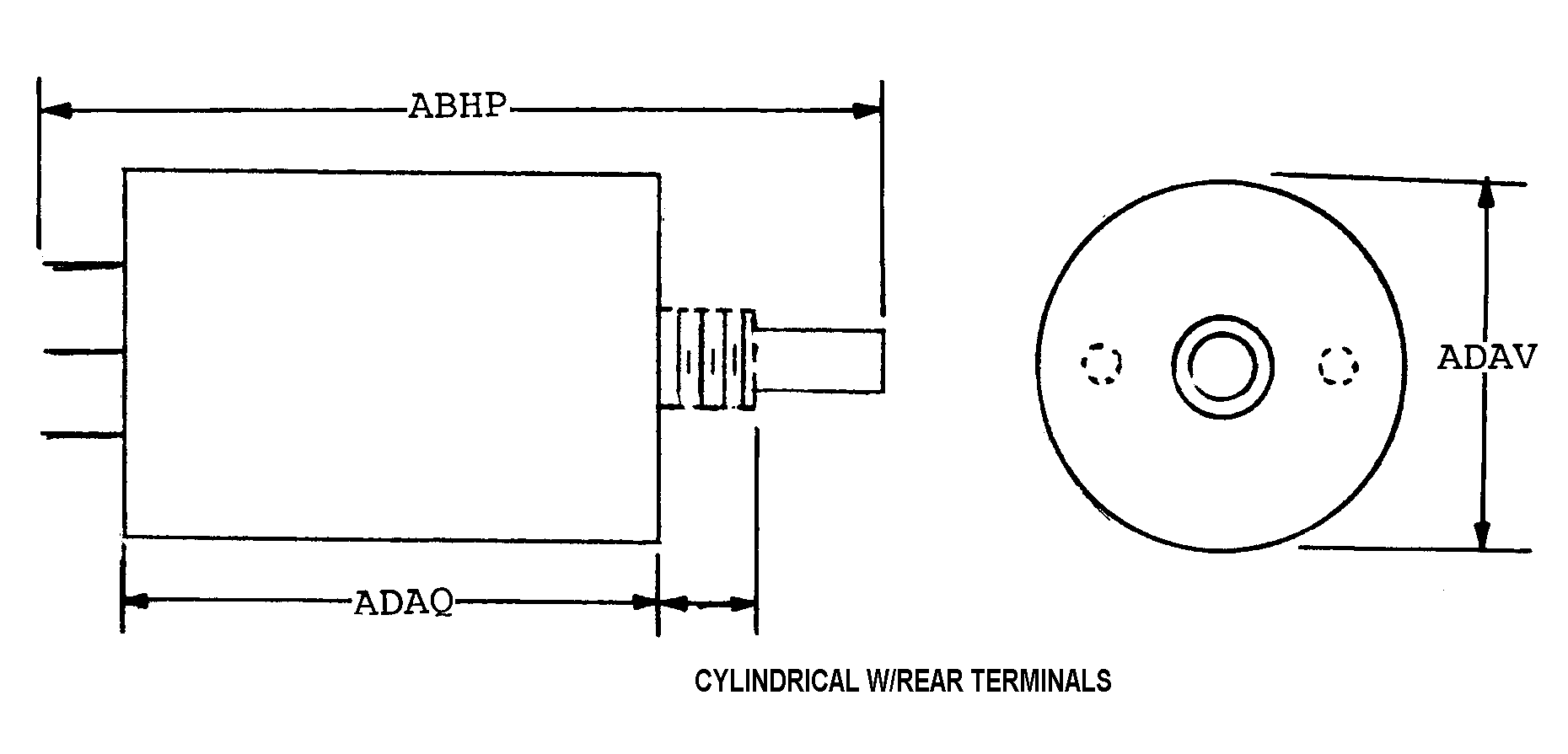

| BODY STYLE | 34A CYLINDRICAL W/REAR TERMINALS |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| BODY LENGTH | 2.344 INCHES NOMINAL |
| OVERALL DIAMETER | 2.343 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| III END ITEM IDENTIFICATION | DATA COMM GROUP AN/TYQ-19 |
| MANUFACTURERS CODE | 95105 |
| DESIGN CONTROL REFERENCE | 549-8916-003 |
Restrictions/Controls & Freight Information | NSN 5985-00-883-3308
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
