Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-891-8142 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: P752000100, 5985-00-891-8142, 00-891-8142, 5985008918142, 008918142
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-891-8142 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-891-8142
Cross Reference | NSN 5985-00-891-8142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P752000100 | 16786 | F E L CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-891-8142
Technical Data | NSN 5985-00-891-8142
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 50.0 MEGAHERTZ MINIMUM AND 200.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY VOLTAGE STANDING WAVE RATIO 20.0 MEGAHERTZ MINIMUM AND 200.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY INSERTION LOSS REFERENCE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 1.0 AC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 117.0 MINIMUM |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 1 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | MALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 1.0 SECONDS |

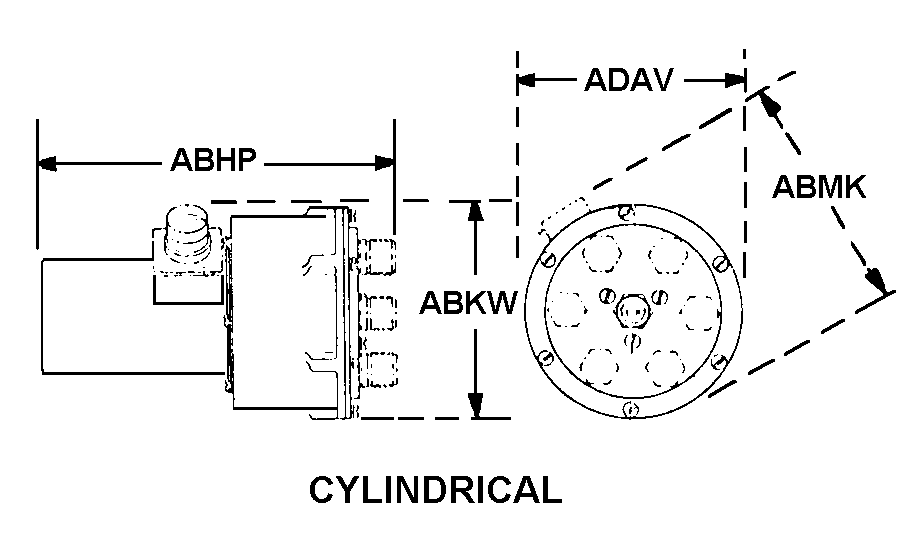

| BODY STYLE | 5B CYLINDRICAL |
| OVERALL HEIGHT | 5.500 INCHES NOMINAL |
| OVERALL WIDTH | 7.489 INCHES NOMINAL |
| SPECIAL FEATURES | ROTOR BLADE COIN SILVER CONTAINING 90 PER CENT SILVER |
| III OPERATING TEMP RANGE | -0.0 TO 50.0 DEG CELSIUS |
| MANUFACTURERS CODE | 16786 |
| DESIGN CONTROL REFERENCE | P752000100 |
