NSN 5985-00-932-4257 M83739/1-01, M83739101, SA-1474/A

Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH

5985-00-932-4257 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000

Part Alternates: M83739/1-01, M83739101, SA-1474/A, SA1474A, SA-1474A/A, SA1474AA, SA498A, MIL-DTL-83739/1, MILDTL837391, MIL-S-83739/1, MILS837391, D0DA1MS66358, D0DA1MS66-358, 70D10100, 20790, 35112010, 351-12010, 0011012858, 001-1012858, 5985-00-932-4257, 00-932-4257, 5985009324257, 009324257

Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	13 FEB 1967	00-932-4257	05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE )

Drawings & Photos | NSN 5985-00-932-4257

Part Number	Request Date	QTY	Origin
5985-00-932-4257	2024-10-275	1	United States
5985-00-932-4257	2023-09-271	20	US
SA1474A	2013-06-157	1	PH
5985-00-932-4257	2011-12-336	2	MANUAL
0011012858	2007-11-318	1	IT
5985-00-932-4257	2007-02-53	14	DIBBS
5985-00-932-4257	2007-02-47	13	DIBBS

Cross Reference | NSN 5985-00-932-4257

Part Number	Cage Code	Manufacturer
001-1012858	22887	OAI ELECTRONICS, LLC
20790	82152	L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES
351-12010	74868	AMPHENOL CORPORATION
70D10100	82152	L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES
D0DA1MS66-358	96412	DEPARTMENT OF DEFENSE
M83739/1-01	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-83739/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-83739/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SA-1474/A	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
SA-1474A/A	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
SA498A	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5985-00-932-4257

Compare

Related Products | NSN 5985-00-932-4257

5985-00-932-4531, 5985-00-932-4820, 5985-00-932-5333, 5985-00-932-6632, 5985-00-932-7623

Technical Data | NSN 5985-00-932-4257

Characteristic	Specifications
FREQUENCY RATING	1.02 GIGAHERTZ MINIMUM AND 1.1 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING
INSERTION LOSS IN DECIBELS	0.50 SINGLE
MINIMUM CROSSTALK RATING IN DECIBELS	30.0 SINGLE
ACTUATOR OPERATING METHOD	MANUAL
ACTUATOR VOLTAGE IN VOLTS	115.0 NOMINAL
SWITCH TYPE	TRANSFER
POLE QUANTITY	1
THROW QUANTITY	2
COUPLING POSITION QUANTITY	3
TERMINAL TYPE AND QUANTITY	1 CONNECTOR, RECEPTACLE AND 3 RECEPTACLE, COAXIAL
COAXIAL CONNECTOR SERIES DESIGNATION	HN
CONNECTOR END DESIGN	FEMALE
SWITCH OPERATION SEQUENCE	MAKES BEFORE BREAKS
SWITCHING TIME	25.0 MILLISECONDS

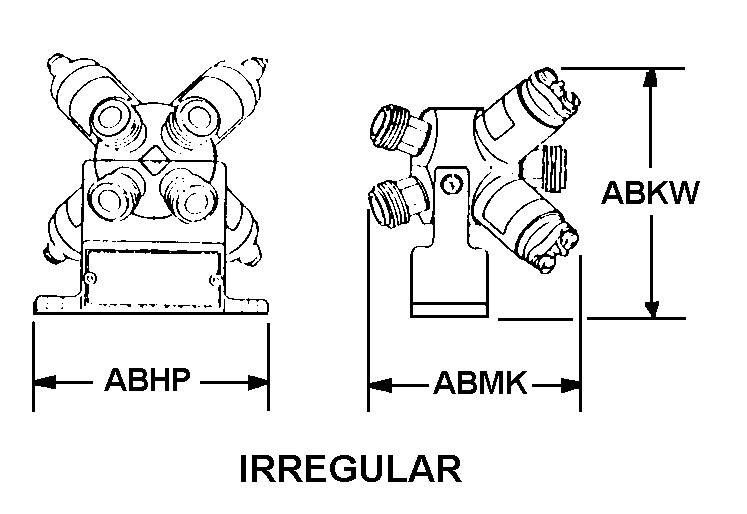

BODY STYLE	9B IRREGULAR
OVERALL LENGTH	4.500 INCHES NOMINAL
OVERALL HEIGHT	3.500 INCHES NOMINAL
OVERALL WIDTH	3.060 INCHES MAXIMUM
MATERIAL	ALUMINUM BODY
MOUNTING FACILITY TYPE AND QUANTITY	2 THREADED HOLE
MOUNTING FACILITY PATTERN	TWO POSITION IN-LINE SINGLE MOUNTING FACILITY PATTERN
DISTANCE BETWEEN MOUNTING FACILITY CENTERS	0.200 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN
THREAD SERIES DESIGNATOR	UNC MOUNTING FACILITY HOLE
NOMINAL THREAD SIZE	0.190 INCHES MOUNTING FACILITY HOLE
THREAD CLASS	2B MOUNTING FACILITY HOLE
TEST DATA DOCUMENT	81349-MIL-S-83739 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-S-83739/1 GOVERNMENT SPECIFICATION
III OPERATING TEMP RANGE	-65.0 TO 125.0 DEG CELSIUS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-83739/1
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83739/1-01
