NSN 5985-01-032-6609 01-032-6609, 010326609
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-032-6609 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 5985-01-032-6609, 01-032-6609, 5985010326609, 010326609
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-032-6609 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-032-6609
Demand History | NSN 5985-01-032-6609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-032-6609 | 2007-11-320 | 1 | US |
| 5985-01-032-6609 | 2006-04-109 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-032-6609
Technical Data | NSN 5985-01-032-6609
| Characteristic | Specifications |
|---|---|
| RF POWER HANDLING CAPABILITY | 0.4 WATTS AVERAGE 1ST 40.0 WATTS PEAK 2ND |
| VOLTAGE STANDING WAVE RATIO | 2.00 1ST 3.50 2ND |
| MINIMUM CROSSTALK RATING IN DECIBELS | 32.0 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 3 |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 4 RECEPTACLE, COAXIAL AND 4 SOLDER STUD AND 1 TURRET |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 5.0 MICROSECONDS |

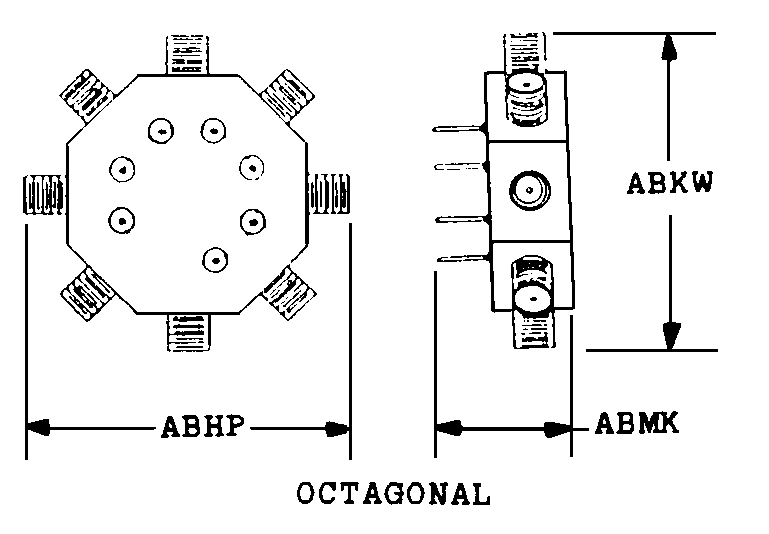

| BODY STYLE | 117B OCTAGONAL |
| OVERALL LENGTH | 1.995 INCHES NOMINAL |
| OVERALL WIDTH | 0.800 INCHES NOMINAL |
| SURFACE TREATMENT | PAINT BODY OUTSIDE SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-E-5400 MIL SPEC SINGLE TREATMENT RESPONSE BODY OUTSIDE SURFACES |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY PATTERN |
| MOUNTING FACILITY CIRCLE RADIUS | 1.340 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| THREAD SERIES DESIGNATOR | UNC MOUNTING FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.112 INCHES MOUNTING FACILITY HOLE |
| THREAD CLASS | 2B MOUNTING FACILITY HOLE |
| III OPERATING TEMP RANGE | -54.0 TO 95.0 DEG CELSIUS |
| III MAXIMUM OPERATING ALTITUDE RATING | 70000.0 FEET |
| MANUFACTURERS CODE | 81413 |
| MFR SOURCE CONTROLLING REFERENCE | 202062-002 |
Restrictions/Controls & Freight Information | NSN 5985-01-032-6609
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
