Product Details | VARIABLE ATTENUATOR
5985-01-054-4758 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: 5518438, 5518438G001, 5985-01-054-4758, 01-054-4758, 5985010544758, 010544758
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 JAN 1978 | 01-054-4758 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-01-054-4758
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-01-054-4758
Related Products | NSN 5985-01-054-4758
5985-01-054-5241, 5985-01-054-5314, 5985-01-054-5525, 5985-01-054-5526, 5985-01-054-5528
Technical Data | NSN 5985-01-054-4758
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 0.000 GIGAHERTZ MINIMUM AND 1.200 GIGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.20 |
| POWER RATING | 1.0 KILOWATTS PEAK |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.3 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 100.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -1.00 TO 5.00 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 10 |
| ATTENUATION PER STEP IN DECIBELS | 1.0 |

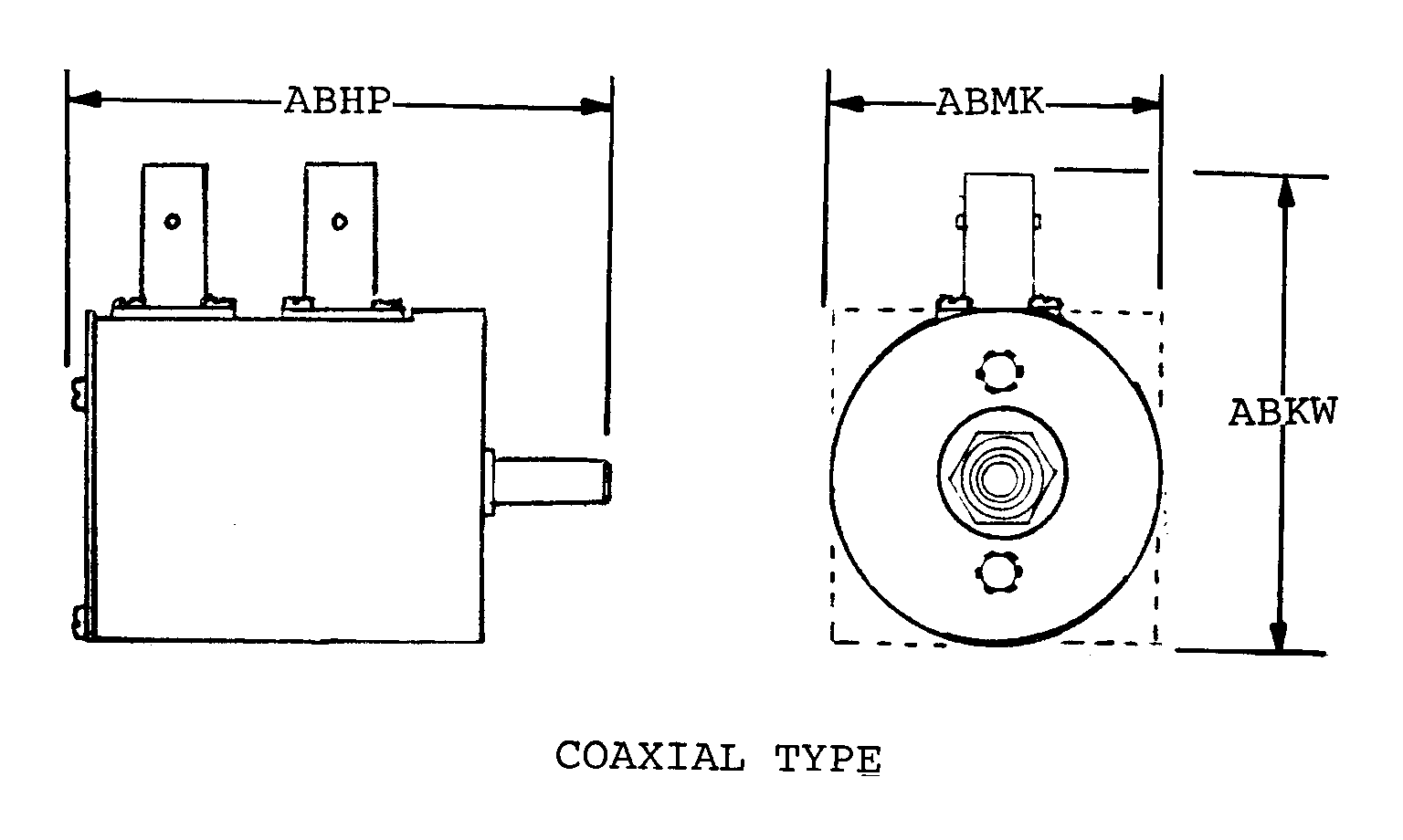

| BODY STYLE | 10A COAXIAL TYPE |
| OVERALL LENGTH | 3.690 INCHES NOMINAL |
| OVERALL HEIGHT | 2.590 INCHES NOMINAL |
| OVERALL WIDTH | 1.870 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.750 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, MALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.164 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.120 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.120 INCHES NOMINAL |
| III SCALE LINEARITY | LINEAR |
| III SCALE DIVISION QUANTITY | 100 |
| III VERNIER SCALE DIVISION QUANTITY | 10 |
Restrictions/Controls & Freight Information | NSN 5985-01-054-4758
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-054-4758
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
