NSN 5985-01-069-5025 AF117A6912, AF117A-69-12, AF117A6922
Product Details | VARIABLE ATTENUATOR
5985-01-069-5025 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: AF117A6912, AF117A-69-12, AF117A6922, AF117A-69-22, 5985-01-069-5025, 01-069-5025, 5985010695025, 010695025
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 DEC 1978 | 01-069-5025 | 00838 ( ATTENUATOR, VARIABLE ) |

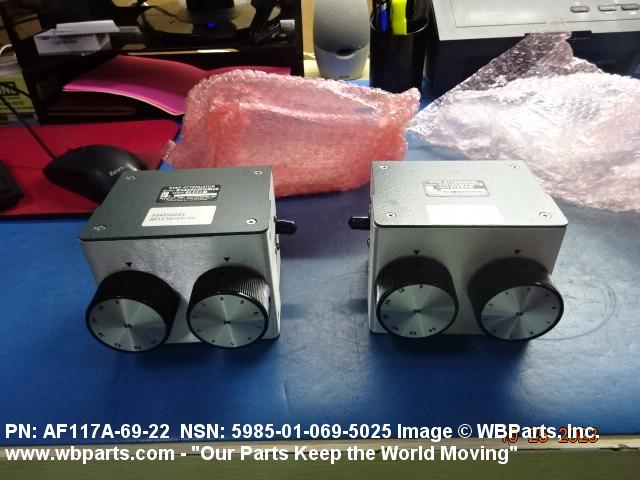

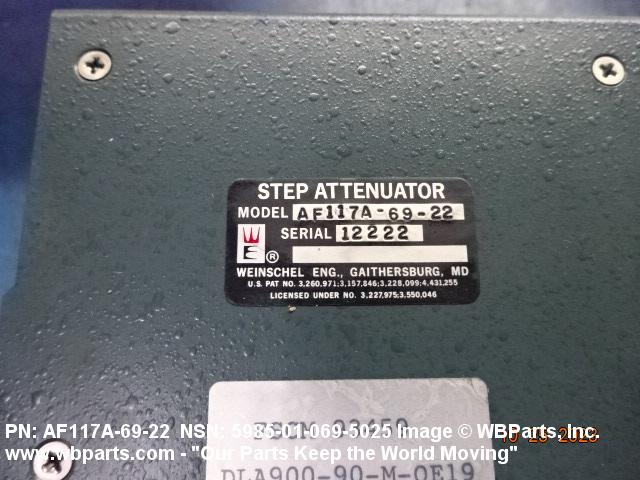

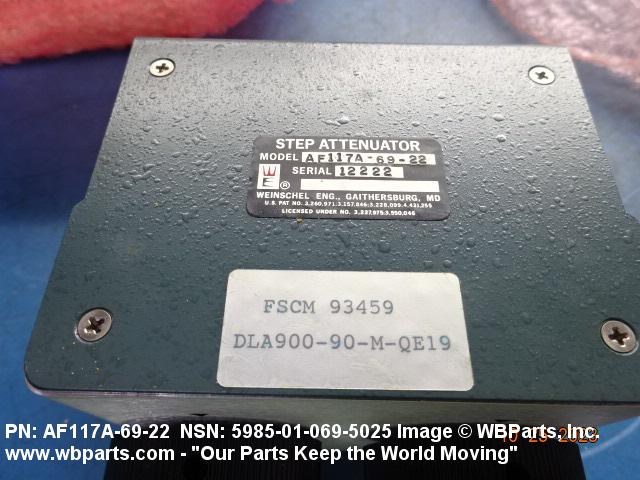

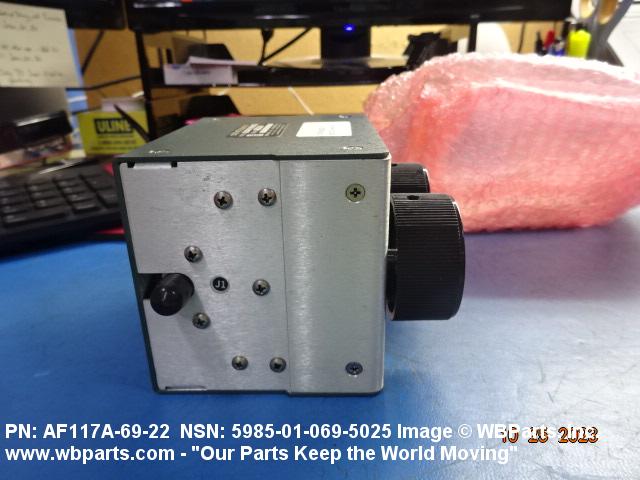

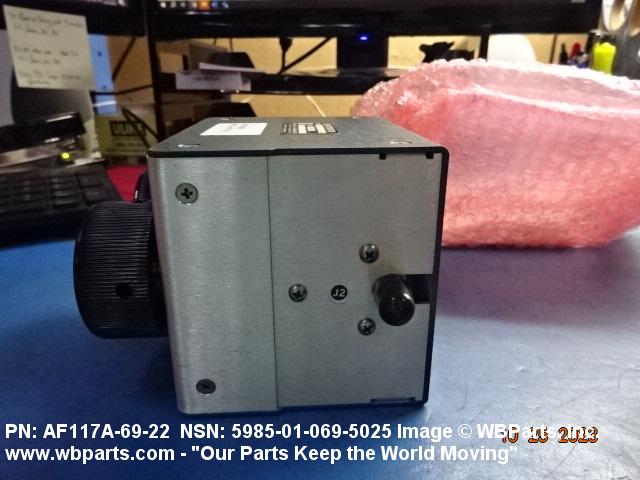

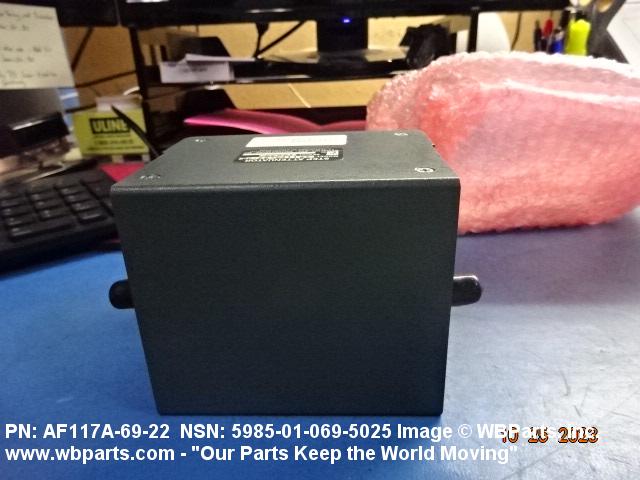

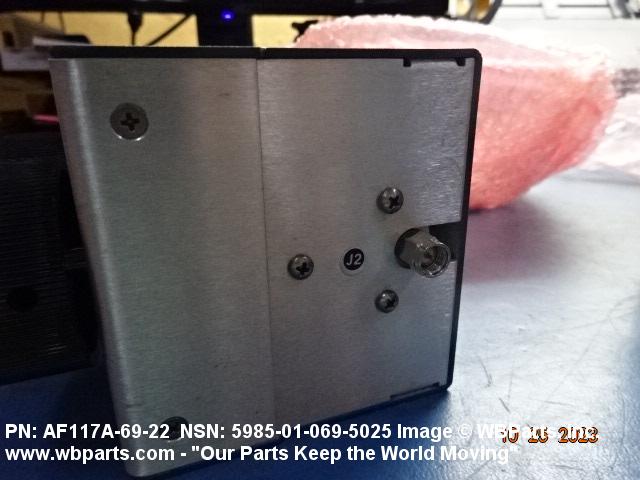

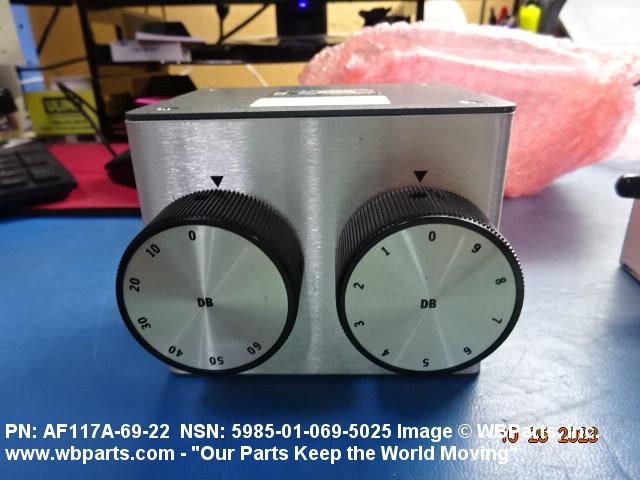

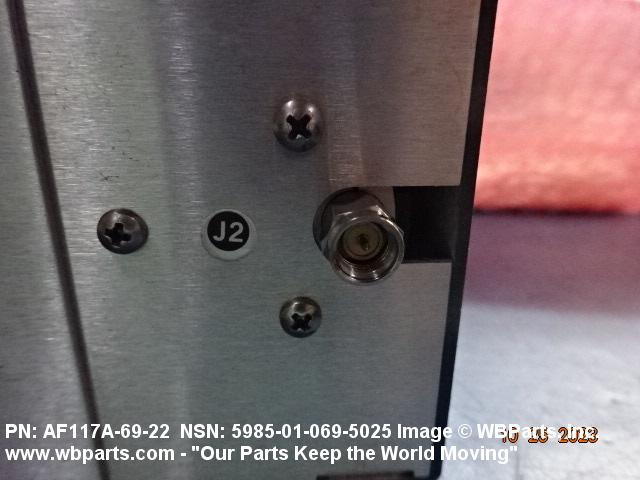

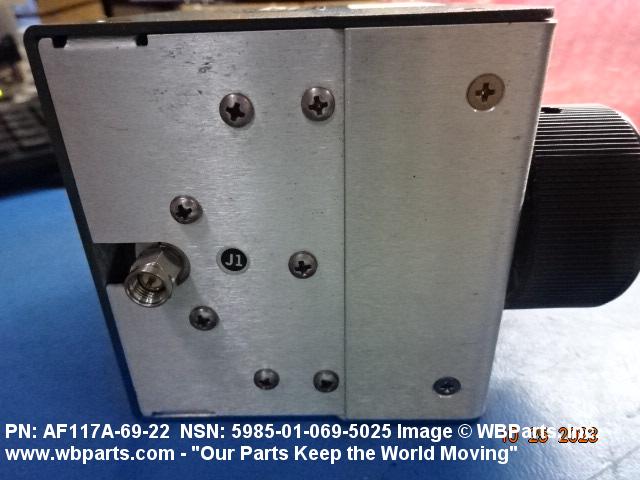

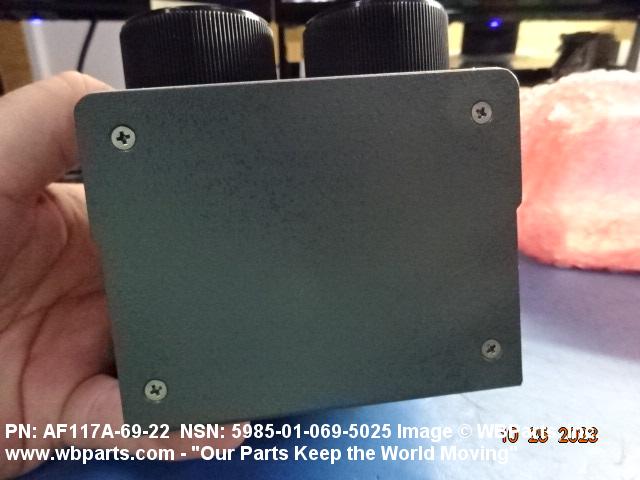

Drawings & Photos | NSN 5985-01-069-5025
Demand History | NSN 5985-01-069-5025
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AF117A6922 | 2023-09-248 | 2 | Greece |
| 5985-01-069-5025 | 2007-07-197 | 3 | India |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-069-5025
Related Products | NSN 5985-01-069-5025
Technical Data | NSN 5985-01-069-5025
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 0.000 GIGAHERTZ MINIMUM AND 18.000 GIGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.60 |
| POWER RATING | 2.0 WATTS AVERAGE AND 200.0 WATTS PEAK |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 1.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 69.0 |
| SEGMENT ATTENUATION RANGE IN DECIBELS | 0.00 TO 9.00 AND 10.00 TO 19.00 AND 20.00 TO 29.00 AND 30.00 TO 39.00 AND 40.00 TO 49.00 AND 50.00 TO 59.00 AND 60.00 TO 69.00 |
| SEGMENT ATTENUATION ACCURACY IN DECIBELS | -0.50 TO 0.50 AND -1.00 TO 1.00 AND -1.20 TO 1.20 AND -1.40 TO 1.40 AND -1.50 TO 1.50 AND -1.70 TO 1.70 AND -1.90 TO 1.90 |
| ATTENUATION ACCURACY REFERENCE FREQUENCY | 18.0 GIGAHERTZ |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 69 |
| ATTENUATION PER STEP IN DECIBELS | 1.0 |
| BODY STYLE | 22A COAXIAL TYPE |
| OVERALL LENGTH | 4.168 INCHES NOMINAL |
| OVERALL HEIGHT | 3.870 INCHES NOMINAL |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 2 SHAFT |
| SHAFT TYPE | ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.750 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, MALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | WPN |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.112 INCHES |
| MOUNTING THREAD QUANTITY | 40 PER INCH |
| III OPERATING TEMP RANGE | -0.0 TO 54.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5985-01-069-5025
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-069-5025
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
