NSN 5985-01-091-7026 CS37S6C12, CS-37S6C-12, CS37S6C13
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-091-7026 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: CS37S6C12, CS-37S6C-12, CS37S6C13, CS-37S6C-13, SW200, SW-200, T4413H21, T4-413H2-1, T4413X21, T4-413X2-1, RSTMDL, RSTM-D-L, 21319003, 2131900-3, 21319004, 2131900-4, 5985-01-091-7026, 01-091-7026, 5985010917026, 010917026
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1980 | 01-091-7026 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

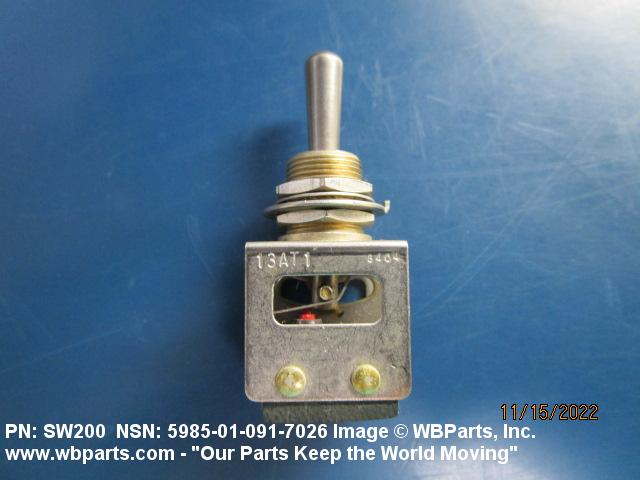

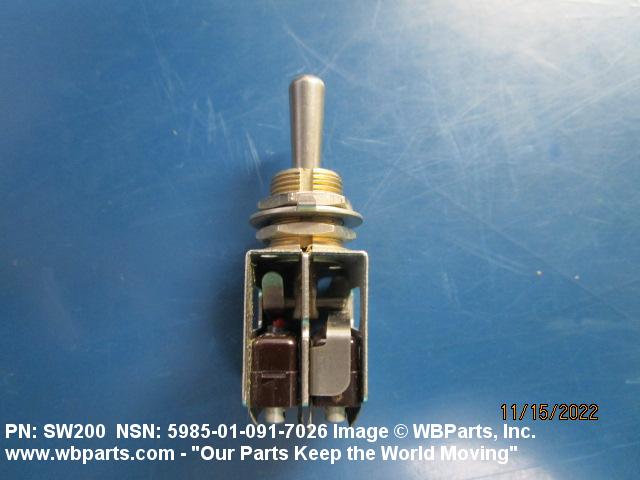

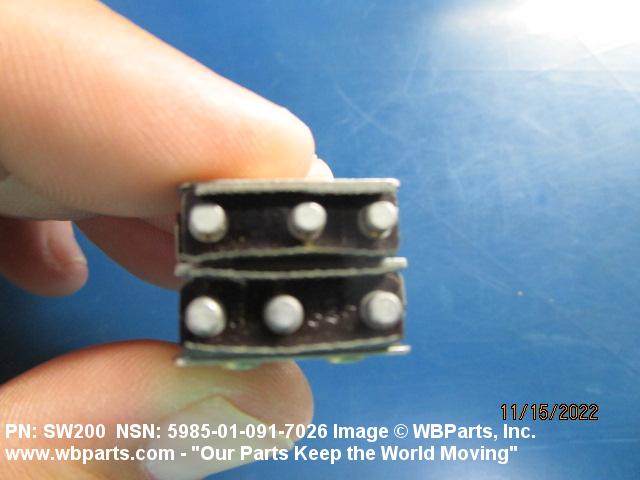

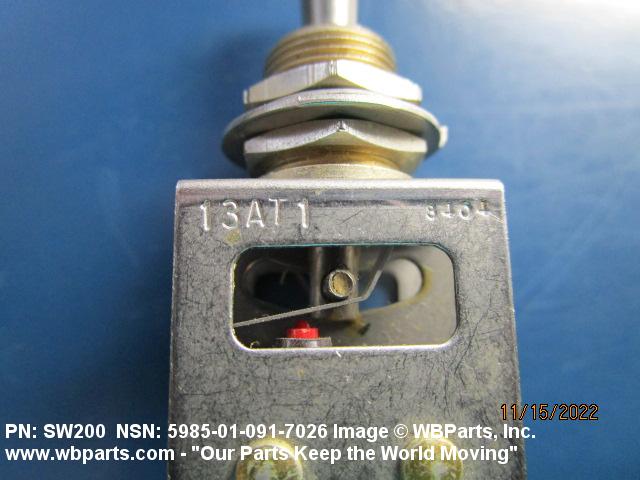

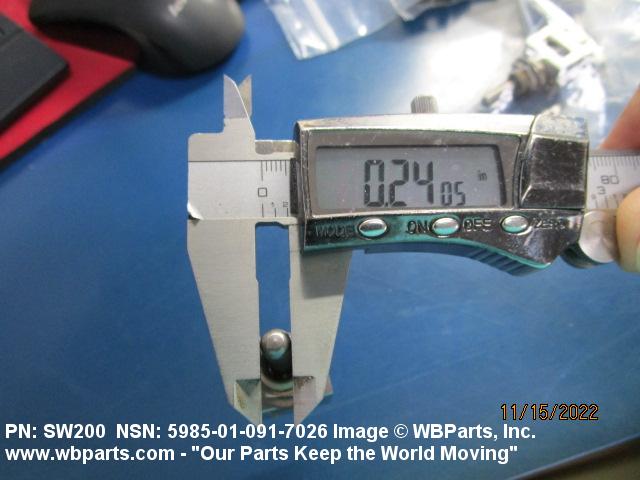

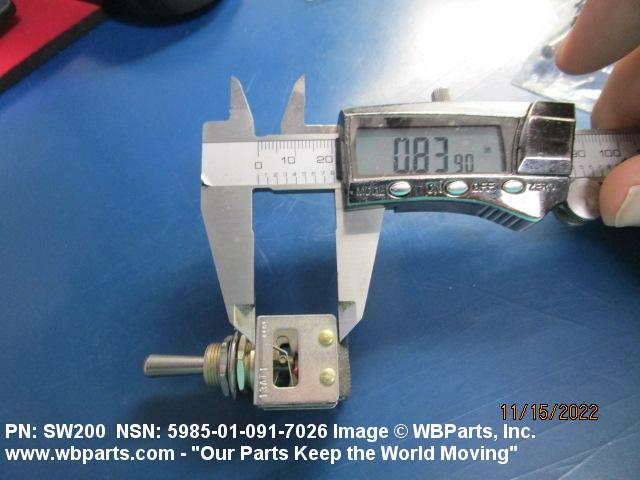

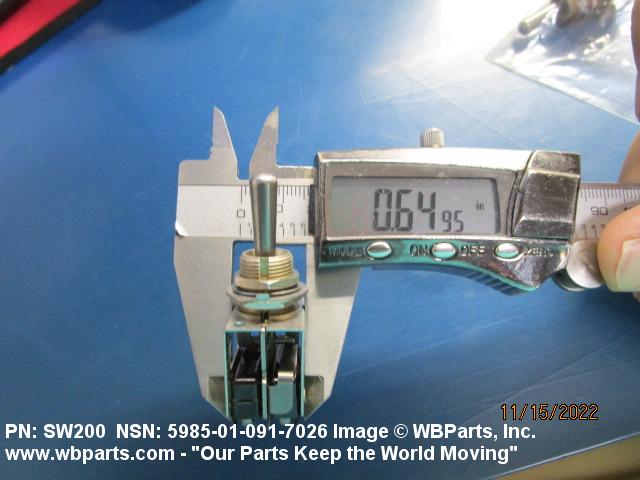

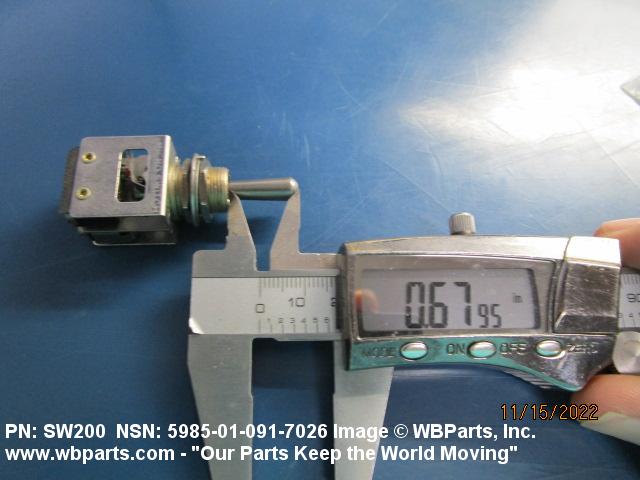

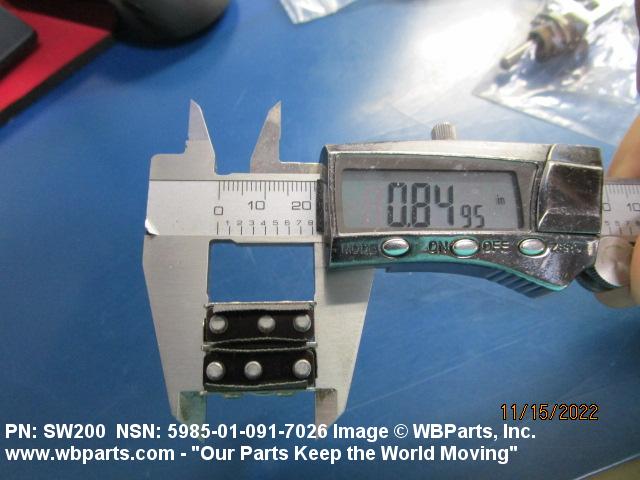

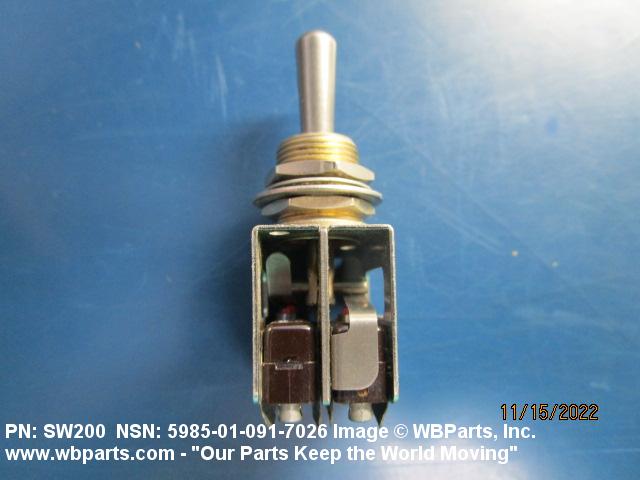

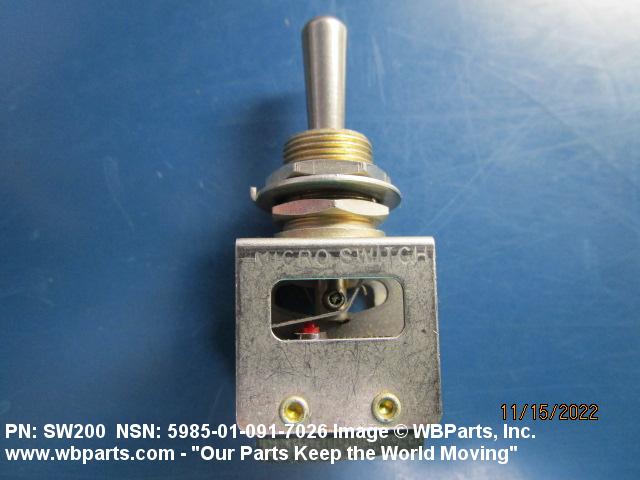

Drawings & Photos | NSN 5985-01-091-7026
Demand History | NSN 5985-01-091-7026
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| T4413H21 | 2022-10-277 | 9 | us |
| 5985-01-091-7026 | 2022-09-265 | 9 | United States |
| 5985-01-091-7026 | 2022-06-167 | 9 | United States |
| 5985-01-091-7026 | 2013-03-78 | 10 | US |
Cross Reference | NSN 5985-01-091-7026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2131900-3 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 2131900-4 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| CS-37S6C-12 | 24022 | TELEDYNE WIRELESS, LLC DBA TELEDYNE MICROWAVE SOLUTIONS |
| CS-37S6C-13 | 24022 | TELEDYNE WIRELESS, LLC DBA TELEDYNE MICROWAVE SOLUTIONS |
| RSTM-D-L | 54487 | MERCURY COMMERCIAL ELECTRONICS, INC. DBA MICRONETICS |
| SW-200 | 0RJ02 | RENAISSANCE ELECTRONICS & COMMUNICATIONS, LLC |
| SW-200 | 54487 | MERCURY COMMERCIAL ELECTRONICS, INC. DBA MICRONETICS |
| T4-413H2-1 | 08719 | DUCOMMUN LABARGE TECHNOLOGIES, INC DBA AMERICAN ELECTRONICS |
| T4-413X2-1 | 08719 | DUCOMMUN LABARGE TECHNOLOGIES, INC DBA AMERICAN ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-091-7026
Related Products | NSN 5985-01-091-7026
Technical Data | NSN 5985-01-091-7026
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 4.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY VOLTAGE STANDING WAVE RATIO 0.0 GIGAHERTZ MINIMUM AND 7.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY INSERTION LOSS REFERENCE 4.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM 2ND FREQUENCY VOLTAGE STANDING WAVE RATIO 7.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM 2ND FREQUENCY INSERTION LOSS REFERENCE |
| VOLTAGE STANDING WAVE RATIO | 1.20 1ST 1.40 2ND |
| INSERTION LOSS IN DECIBELS | 0.20 1ST 0.40 2ND |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.2 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| TERMINAL TYPE AND QUANTITY | 6 PIN AND 4 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 25.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | LATCHING |

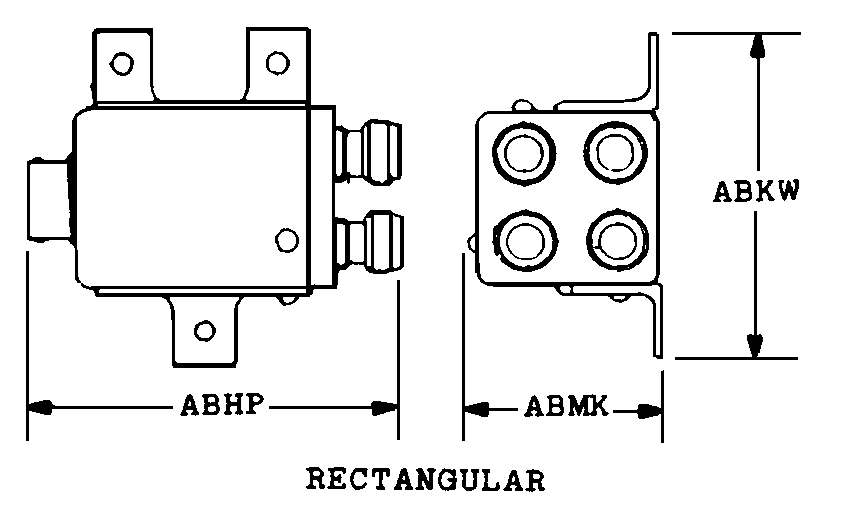

| BODY STYLE | 74B RECTANGULAR |
| OVERALL LENGTH | 2.850 INCHES NOMINAL |
| OVERALL HEIGHT | 1.970 INCHES NOMINAL |
| OVERALL WIDTH | 1.310 INCHES NOMINAL |
| MATERIAL | ALUMINUM BODY COPPER ALLOY CONTACT(S) |
| SURFACE TREATMENT | NICKEL BODY OUTSIDE SURFACES GOLD CONTACT(S) OUTSIDE SURFACES |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.149 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | ISOSCELES TRIANGLE SINGLE MOUNTING FACILITY PATTERN |
| SPECIFICATION/STANDARD DATA | 55974-2131900 GOVERNMENT SPECIFICATION |
| III OPERATING TEMP RANGE | 0.0 TO 71.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 55974 |
| MFR SOURCE CONTROLLING REFERENCE | 2131900-4 |
Restrictions/Controls & Freight Information | NSN 5985-01-091-7026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-091-7026
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
