NSN 5985-01-134-9987 011349987
Product Details | WAVEGUIDE CRYSTAL MIXER
5985-01-134-9987 An item consisting of a WAVEGUIDE ASSEMBLY having two frequency inputs, a crystal (any semiconductor device that provides rectification) and an output connection. It is employed to mix two frequencies, with the resultant output frequency being a composite of the two inputs. For items which also utilize electron tube(s), see MIXER STAGE, FREQUENCY. See also MIXER, CRYSTAL, COAXIAL.
Part Alternates: 011349987
Communication, Detection, and Coherent Radiation Equipment | Radar Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01-134-9987 | 22971 ( MIXER, CRYSTAL, WAVEGUIDE ) |

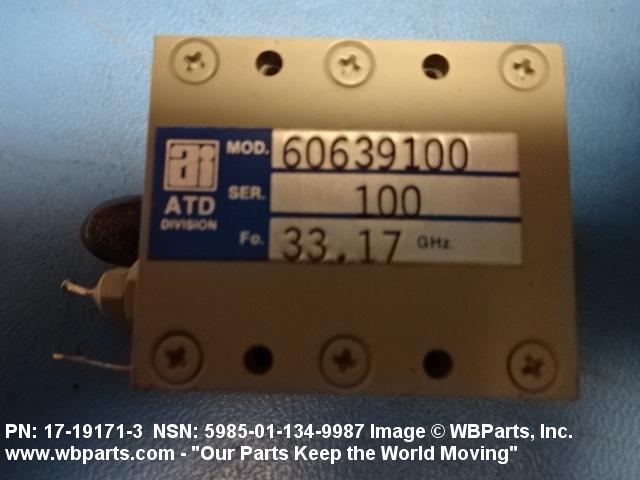

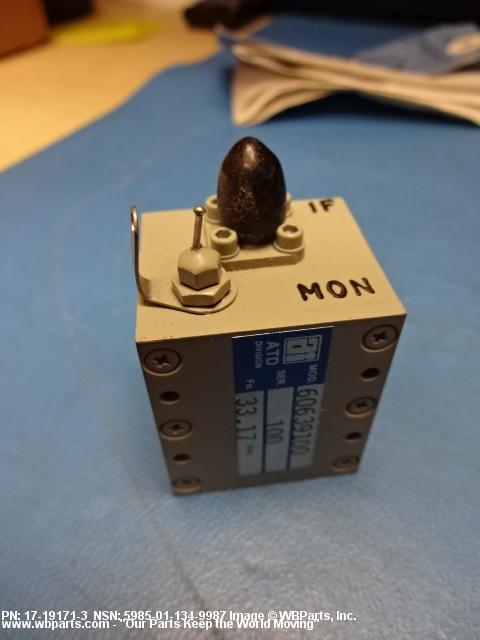

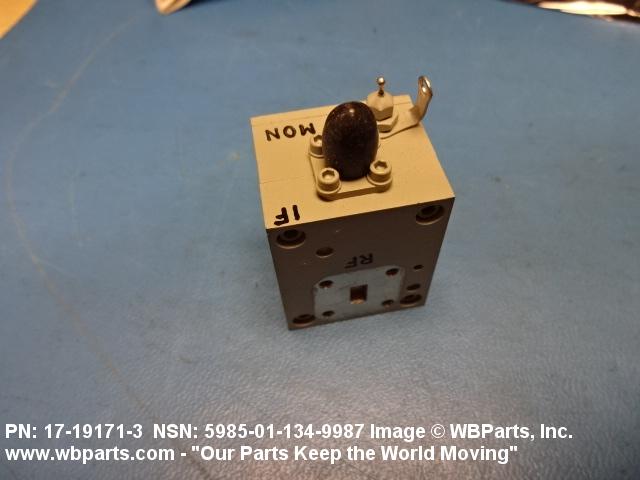

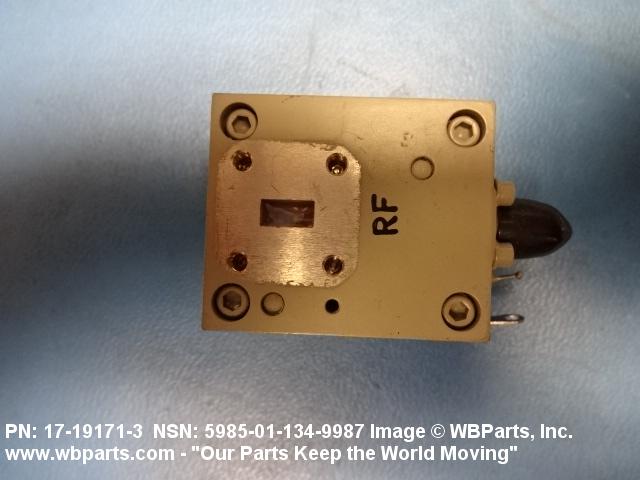

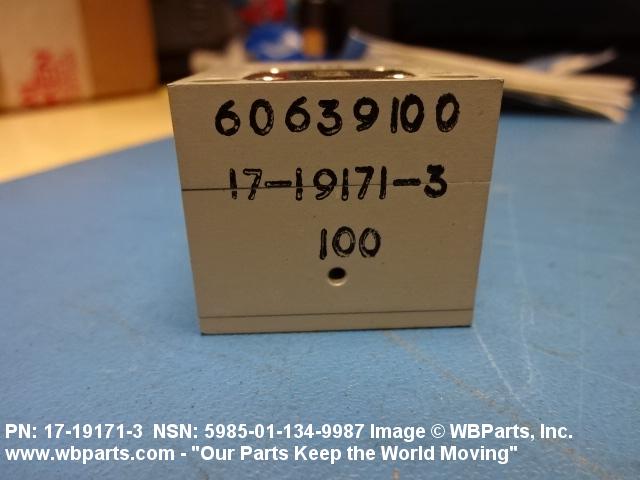

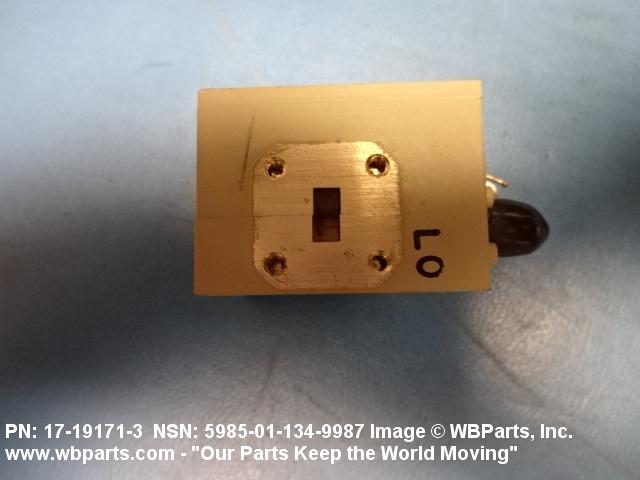

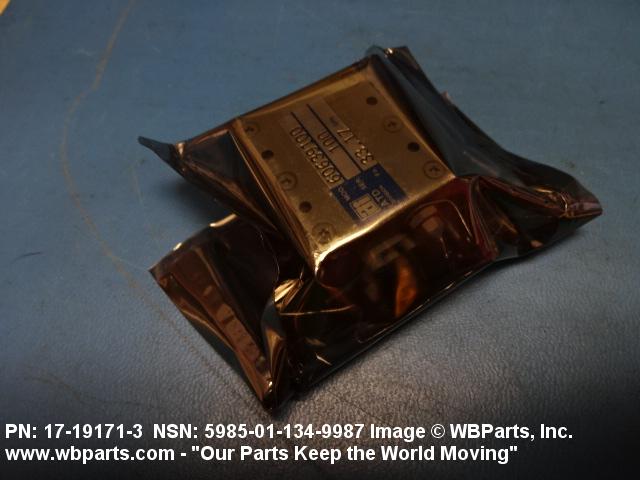

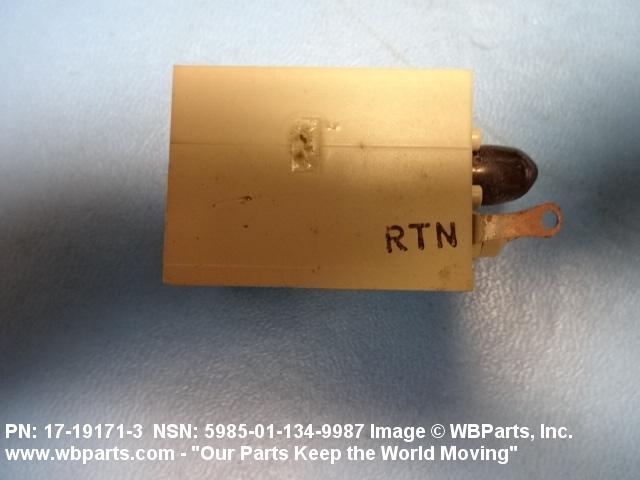

Drawings & Photos | NSN 5840-01-134-9987
Demand History | NSN 5985-01-134-9987
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 17-19171-3 | 2016-09-260 | 1 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-134-9987
Technical Data | NSN 5985-01-134-9987
| Characteristic | Specifications |
|---|---|
| FREQUENCY RANGE RATING | NOT RATED |
| CRYSTAL DESIGNATOR | BEAM LEAD SCHOTTKY DIODE |
| INSERTION LOSS IN DECIBELS | 8.0 |
| LOCAL OSCILLATOR INPUT ADJUSTABILITY | NONADJUSTABLE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.093 INCHES NOMINAL |
| MANUFACTURERS CODE | 17540 |
| DESIGN CONTROL REFERENCE | 60639100 |
Restrictions/Controls & Freight Information | NSN 5985-01-134-9987
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
