Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-149-9321 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 100C1331, 380-10251-1, 5985-01-149-9321, 01-149-9321, 5985011499321, 011499321, 380102511
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 MAR 1983 | 01-149-9321 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-149-9321
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5985-01-149-9321
5985-01-149-9890, 5985-01-150-0053, 5985-01-150-0745, 5985-01-150-0751, 5985-01-150-0756
Technical Data | NSN 5985-01-149-9321
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 10.0 MEGAHERTZ MINIMUM AND 200.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| VOLTAGE STANDING WAVE RATIO | 1.25 SINGLE |
| INSERTION LOSS IN DECIBELS | 1.50 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.1 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 5.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 1 |
| COUPLING POSITION QUANTITY | 2 |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 0.025 MICROSECONDS |

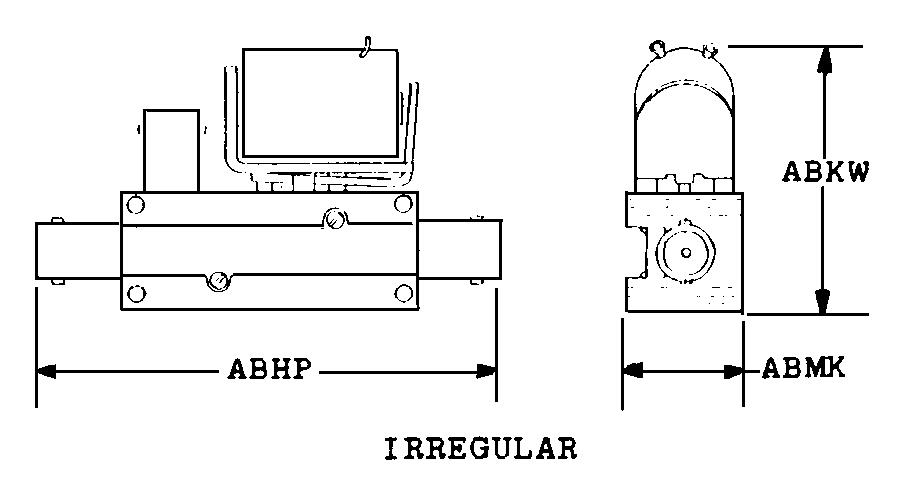

| BODY STYLE | 14B IRREGULAR |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
