Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-156-7914 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: M6425H201LLT, M6-425H201LLT, M6425H21LLT, M6-425H2-1LLT, 6NS0T4E12, 9262481C, 926248-1C, 5985-01-156-7914, 01-156-7914, 5985011567914, 011567914
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JUN 1983 | 01-156-7914 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-156-7914
Cross Reference | NSN 5985-01-156-7914
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6NS0T4E12 | 25656 | DBP MICROWAVE INC. DBA |
| 926248-1C | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| M6-425H2-1LLT | 08719 | DUCOMMUN LABARGE TECHNOLOGIES, INC DBA AMERICAN ELECTRONICS |
| M6-425H201LLT | 08719 | DUCOMMUN LABARGE TECHNOLOGIES, INC DBA AMERICAN ELECTRONICS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-01-156-7914
Related Products | NSN 5985-01-156-7914
5985-01-156-7915, 5985-01-156-7916, 5985-01-156-7921, 5985-01-156-7928, 5985-01-156-8031
Technical Data | NSN 5985-01-156-7914
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 3.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY VOLTAGE STANDING WAVE RATIO 0.0 GIGAHERTZ MINIMUM AND 3.0 GIGAHERTZ MAXIMUM 1ST FREQUENCY INSERTION LOSS REFERENCE 3.0 GIGAHERTZ MINIMUM AND 8.0 GIGAHERTZ MAXIMUM 2ND FREQUENCY VOLTAGE STANDING WAVE RATIO 3.0 GIGAHERTZ MINIMUM AND 8.0 GIGAHERTZ MAXIMUM 2ND FREQUENCY INSERTION LOSS REFERENCE 8.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM 3RD FREQUENCY VOLTAGE STANDING WAVE RATIO 8.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM 3RD FREQUENCY INSERTION LOSS REFERENCE |
| VOLTAGE STANDING WAVE RATIO | 1.20 1ST 1.30 2ND 1.40 3RD |
| INSERTION LOSS IN DECIBELS | 0.20 1ST 0.30 2ND 0.40 3RD |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 6 |
| COUPLING POSITION QUANTITY | 8 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 7 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 30.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

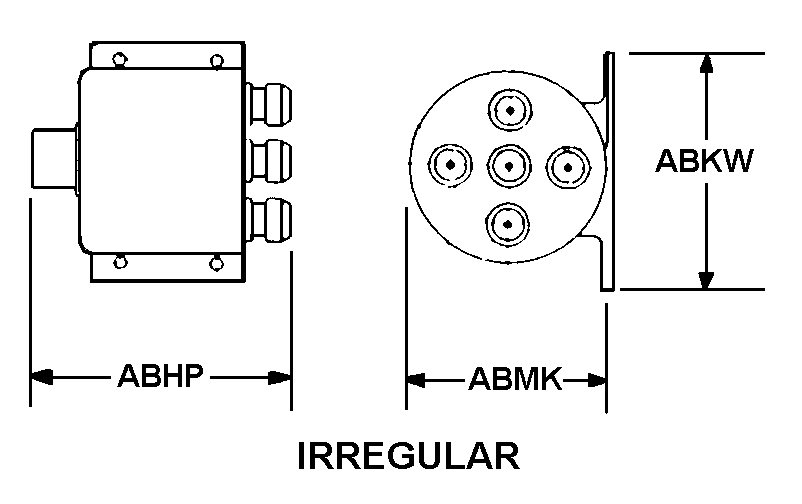

| BODY STYLE | 104B IRREGULAR |
| OVERALL LENGTH | 3.653 INCHES MINIMUM AND 3.673 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.570 INCHES MINIMUM AND 3.630 INCHES MAXIMUM |
| OVERALL WIDTH | 3.270 INCHES MINIMUM AND 3.330 INCHES MAXIMUM |
| MATERIAL | ALUMINUM BODY COPPER ALLOY CONTACT(S) |
| SURFACE TREATMENT | NICKEL BODY OUTSIDE SURFACES GOLD CONTACT(S) OUTSIDE SURFACES |
| III OPERATING TEMP RANGE | 0.0 TO 50.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | REEDS AND CENTER CONDUCTORS SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5985-01-156-7914
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-156-7914
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
