NSN 5985-01-246-7634 G330247S1, TS391SH, TS-391SH
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-246-7634 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: G330247S1, TS391SH, TS-391SH, 5985-01-246-7634, 01-246-7634, 5985012467634, 012467634
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 DEC 1986 | 01-246-7634 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-246-7634
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-246-7634
Technical Data | NSN 5985-01-246-7634
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 20.0 MEGAHERTZ MINIMUM AND 40.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| INSERTION LOSS IN DECIBELS | 1.50 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 90.0 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.10 DC MINIMUM AND 0.15 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 5.0 MINIMUM AND 15.0 MAXIMUM |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 3 SOLDER STUD AND 4 PLUG, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 50.0 MICROSECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

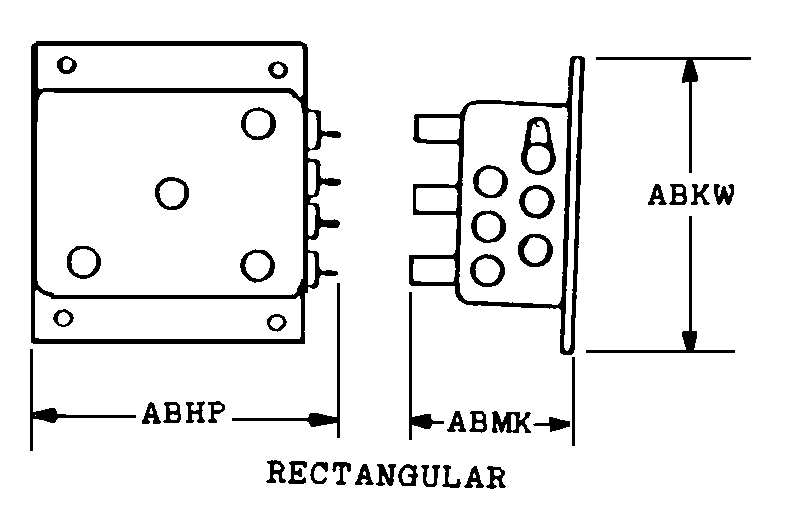

| BODY STYLE | 49B RECTANGULAR |
| OVERALL LENGTH | 2.300 INCHES NOMINAL |
| OVERALL HEIGHT | 2.600 INCHES NOMINAL |
| OVERALL WIDTH | 1.030 INCHES NOMINAL |
| MATERIAL | METAL BODY |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |
| III OPERATING TEMP RANGE | 0.0 TO 65.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5985-01-246-7634
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-246-7634
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
