NSN 5985-01-251-5103 CS31N106, CS31N10-6, 2832431
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-251-5103 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: CS31N106, CS31N10-6, 2832431, 5985-01-251-5103, 01-251-5103, 5985012515103, 012515103
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 MAR 1987 | 01-251-5103 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-251-5103
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-251-5103
Technical Data | NSN 5985-01-251-5103
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 3.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| VOLTAGE STANDING WAVE RATIO | 1.30 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.30 SINGLE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.4 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 22.0 MINIMUM |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER STUD |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

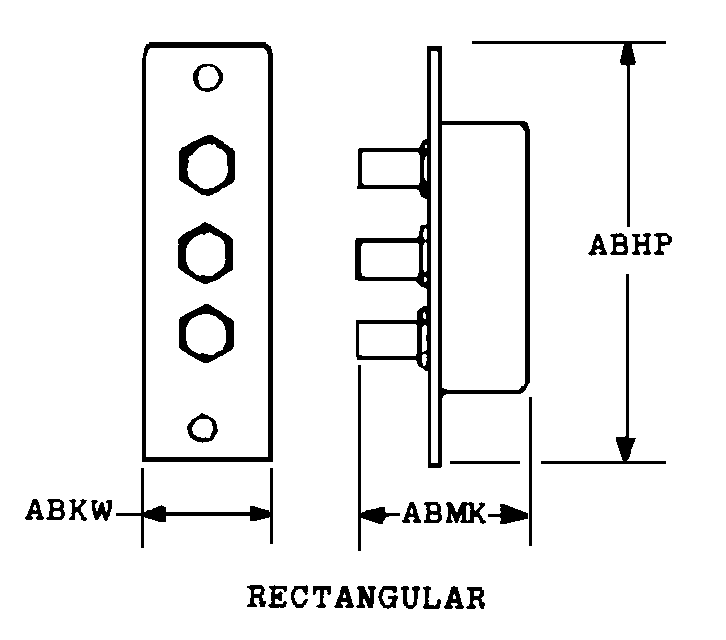

| BODY STYLE | 67B RECTANGULAR |
| OVERALL LENGTH | 2.875 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.850 INCHES MINIMUM AND 0.900 INCHES MAXIMUM |
| OVERALL WIDTH | 2.800 INCHES NOMINAL |
| MATERIAL | METAL BODY |
