NSN 5985-01-264-7923 AUM-15A/12895, AUM15A12895, 29127731
Product Details | VARIABLE ATTENUATOR
5985-01-264-7923 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: AUM-15A/12895, AUM15A12895, 29127731, 2912773-1, 5985-01-264-7923, 01-264-7923, 5985012647923, 012647923
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 OCT 1987 | 01-264-7923 | 00838 ( ATTENUATOR, VARIABLE ) |

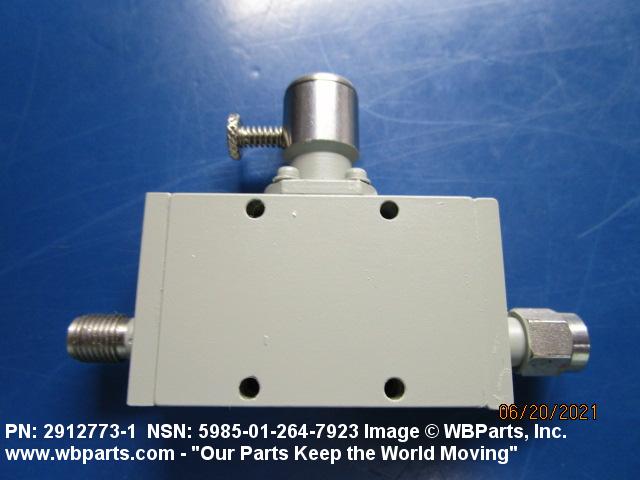

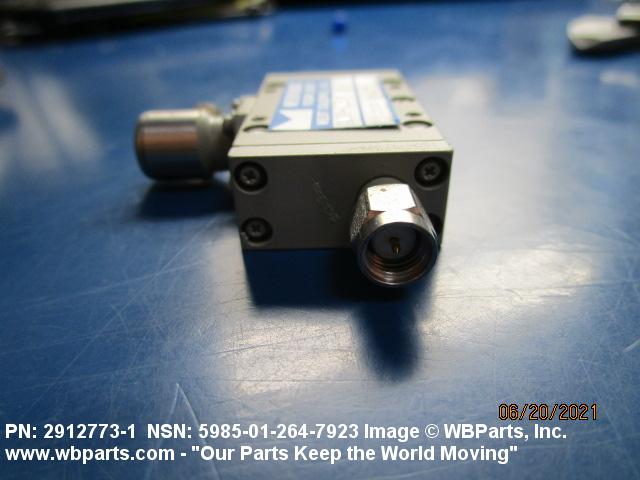

Drawings & Photos | NSN 5985-01-264-7923
Demand History | NSN 5985-01-264-7923
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2912773-1 | 2025-10-295 | 9 | DIBBS |
| 2912773-1 | 2025-09-261 | 24 | DIBBS |
| 2912773-1 | 2021-08-215 | 2 | DIBBS |
| 5985-01-264-7923 | 2021-06-166 | 1 | United States |
| 2912773-1 | 2021-05-140 | 3 | DIBBS |
| 2912773-1 | 2020-12-351 | 18 | DIBBS |
| 2912773-1 | 2020-10-299 | 6 | DIBBS |
| 2912773-1 | 2020-08-239 | 11 | DIBBS |
| 2912773-1 | 2020-06-181 | 10 | DIBBS |
| 2912773-1 | 2020-03-75 | 8 | DIBBS |
| 2912773-1 | 2020-01-09 | 7 | DIBBS |
| 5985-01-264-7923 | 2017-02-47 | 7 | DIBBS |
| 5985-01-264-7923 | 2017-02-36 | 7 | DIBBS |
| 5985-01-264-7923 | 2013-02-32 | 14 | DIBBS |
| 5985-01-264-7923 | 2012-11-307 | 10 | DIBBS |
| 5985-01-264-7923 | 2012-08-236 | 6 | DIBBS |
| 5985-01-264-7923 | 2012-07-208 | 10 | DIBBS |
| 5985-01-264-7923 | 2012-07-207 | 2 | DIBBS |
| 5985-01-264-7923 | 2012-05-152 | 2 | DIBBS |
| 5985-01-264-7923 | 2011-12-347 | 2 | DIBBS |
| 5985-01-264-7923 | 2011-09-273 | 2 | DIBBS |
| 5985-01-264-7923 | 2011-07-203 | 2 | DIBBS |
| 5985-01-264-7923 | 2011-06-153 | 2 | DIBBS |
| 5985-01-264-7923 | 2011-04-105 | 1 | DIBBS |
| 5985-01-264-7923 | 2010-08-242 | 3 | DIBBS |
| 5985-01-264-7923 | 2008-12-340 | 8 | DIBBS |
| 5985-01-264-7923 | 2008-04-94 | 5 | DIBBS |
| 5985-01-264-7923 | 2007-05-127 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-264-7923
Related Products | NSN 5985-01-264-7923
Technical Data | NSN 5985-01-264-7923
| Characteristic | Specifications |
|---|---|
| FREQUENCY RANGE | 3.000 GIGAHERTZ MINIMUM AND 4.000 GIGAHERTZ MAXIMUM |
| POWER RATING | 2.0 WATTS AVERAGE |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 18.0 |
| BODY STYLE | 22A COAXIAL TYPE |

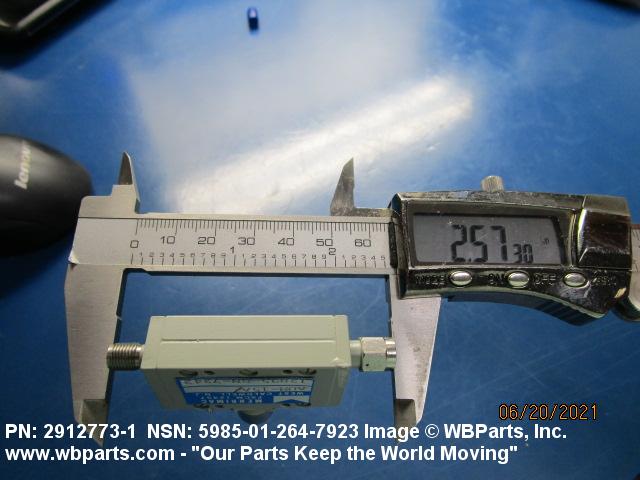

| OVERALL LENGTH | 2.650 INCHES MAXIMUM |

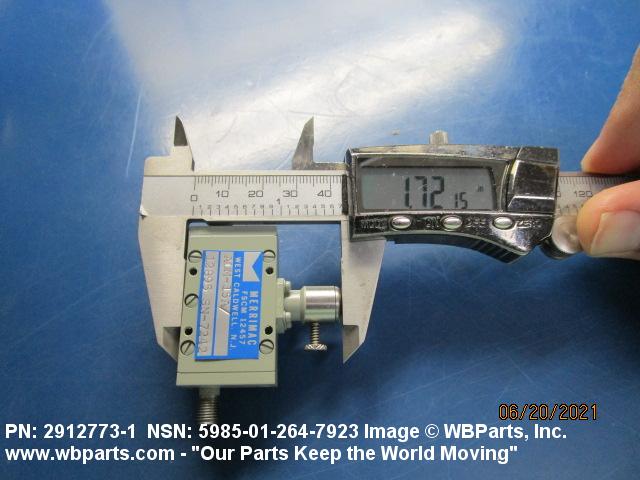

| OVERALL HEIGHT | 1.720 INCHES NOMINAL |

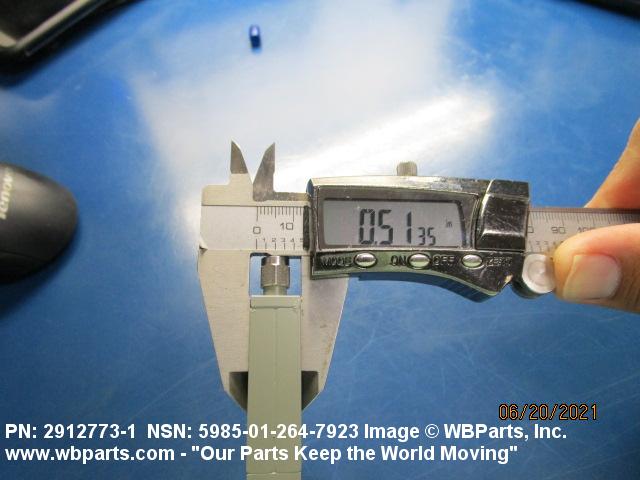

| OVERALL WIDTH | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |

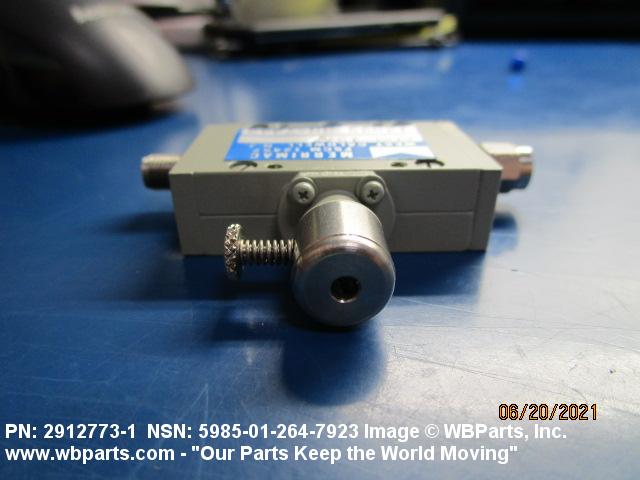

| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 THUMBSCREW AND 1 SLOTTED SCREW |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, COAXIAL, FEMALE AND 1 CONNECTOR, COAXIAL, MALE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 CONNECTOR |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |

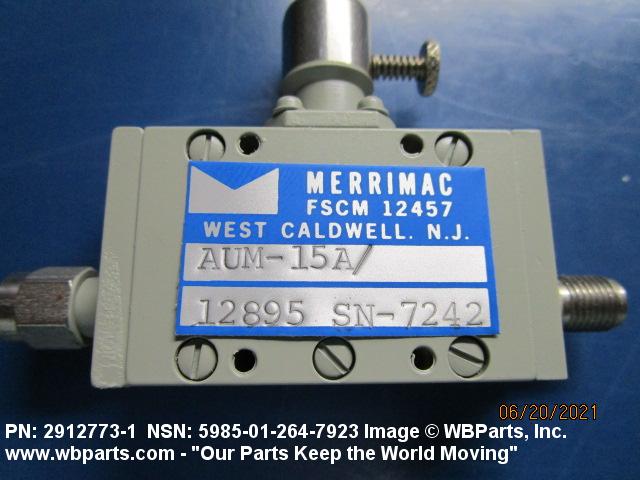

| MANUFACTURERS CODE | 12457 |
| DESIGN CONTROL REFERENCE | AUM-15A/12895 |
Restrictions/Controls & Freight Information | NSN 5985-01-264-7923
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-264-7923
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
