5985-01-267-0982 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: S4045B, S-4045B, 6011697002, 6011697-002, 5985-01-267-0982, 01-267-0982, 5985012670982, 012670982
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 NOV 1987 | 01-267-0982 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-267-0982
Demand History | NSN 5985-01-267-0982
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6011697-002 | 2022-03-31 | 3 | DIBBS |
| S-4045B | 2022-03-31 | 3 | DIBBS |
| 6011697-002 | 2019-03-07 | 3 | DIBBS |
| S-4045B | 2019-03-07 | 3 | DIBBS |
| 5985-01-267-0982 | 2014-04-08 | 2 | DIBBS |
| 5985-01-267-0982 | 2014-03-06 | 2 | DIBBS |
| 5985-01-267-0982 | 2012-12-13 | 2 | DIBBS |
| 5985-01-267-0982 | 2010-05-12 | 1 | DIBBS |
| 5985-01-267-0982 | 2010-04-15 | 5 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-01-267-0982
Related Products | NSN 5985-01-267-0982
5985-01-267-0983, 5985-01-267-1071, 5985-01-267-1345, 5985-01-267-1346, 5985-01-267-1347
Technical Data | NSN 5985-01-267-0982
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| RF POWER HANDLING CAPABILITY | 2.0 WATTS AVERAGE SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.135 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 7 |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG AND 7 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

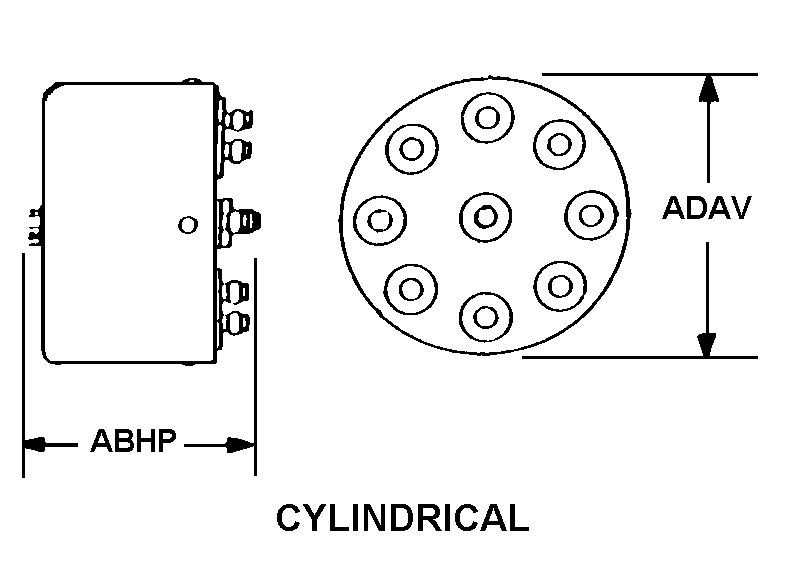

| BODY STYLE | 105B CYLINDRICAL |
| OVERALL LENGTH | 3.275 INCHES NOMINAL |
| OVERALL DIAMETER | 2.180 INCHES MINIMUM AND 2.220 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY COVER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 FED SPEC SINGLE MATERIAL RESPONSE COVER |
| SURFACE TREATMENT | NICKEL AND CHROMATE COVER OUTSIDE SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC 1ST TREATMENT RESPONSE AND MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE COVER OUTSIDE SURFACES |
| III OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |
| III UNPACKAGED UNIT WEIGHT | 8.000 OUNCES |
