NSN 5985-01-341-6989 133C51200, 01-341-6989, 013416989
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-341-6989 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 133C51200, 5985-01-341-6989, 01-341-6989, 5985013416989, 013416989
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 JUL 1991 | 01-341-6989 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-341-6989
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-341-6989
Technical Data | NSN 5985-01-341-6989
| Characteristic | Specifications |
|---|---|
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.17 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 22.0 MINIMUM AND 30.0 MAXIMUM |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 3 |
| COUPLING POSITION QUANTITY | 8 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 7 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 20.0 MILLISECONDS |

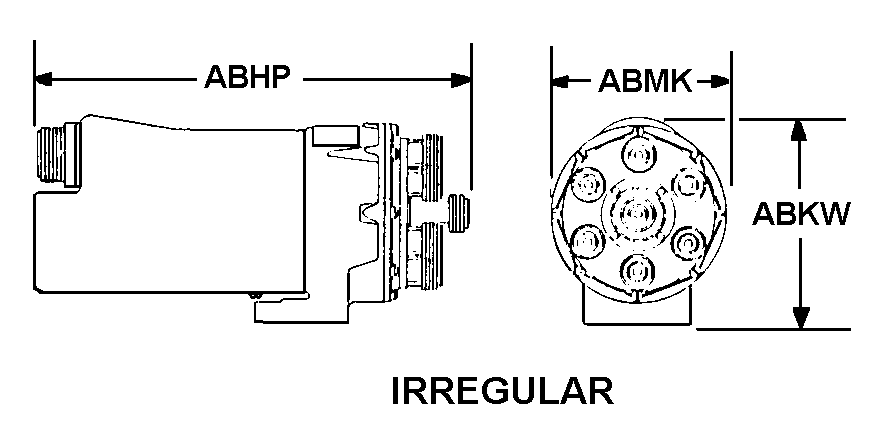

| BODY STYLE | 6B IRREGULAR |
| OVERALL LENGTH | 3.880 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.180 INCHES NOMINAL |
| OVERALL WIDTH | 3.750 INCHES NOMINAL |
| OVERALL DIAMETER | 3.060 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |
