NSN 5985-01-364-0142 M3433E002, M3-433E002, GA00047001
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-364-0142 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: M3433E002, M3-433E002, GA00047001, GA-00047-001, 5985-01-364-0142, 01-364-0142, 5985013640142, 013640142
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 SEP 1992 | 01-364-0142 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-364-0142
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-364-0142
Technical Data | NSN 5985-01-364-0142
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 18.0 GIGAHERTZ NOMINAL SINGLE FREQUENCY OPERATING |
| SWITCHING TIME | 15.0 MILLISECONDS |

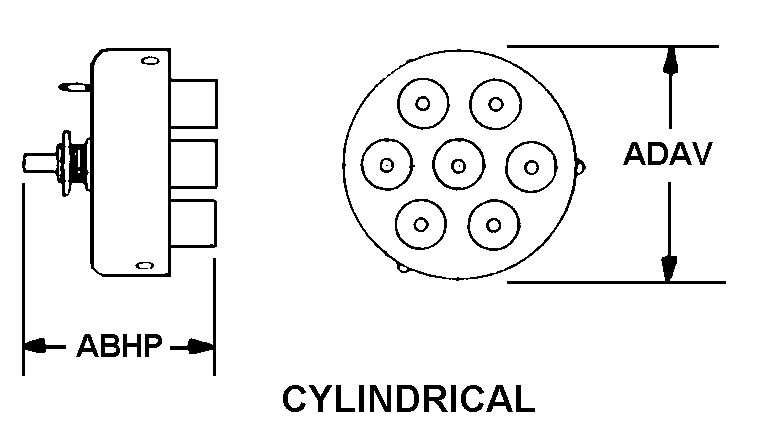

| BODY STYLE | 100B CYLINDRICAL |
| OVERALL LENGTH | 2.060 INCHES NOMINAL |
| OVERALL DIAMETER | 2.060 INCHES NOMINAL |
| SPECIAL FEATURES | ELECTROSTATIC DISCHARGE PROTECTION; TTL LOGIC HIGH; LATCHING AT 29 VDC AND 20 DEG.C.; INDICATOR CIRCUIT |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | SOLAR ELEC-OPTI NETWORK |
