NSN 5985-01-390-7952 MT753382, MT-7533-82, 312182-301
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-390-7952 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: MT753382, MT-7533-82, 312182-301, 5985-01-390-7952, 01-390-7952, 5985013907952, 312182301, 013907952
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 MAY 1994 | 01-390-7952 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-390-7952
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-390-7952
Related Products | NSN 5985-01-390-7952
Technical Data | NSN 5985-01-390-7952
| Characteristic | Specifications |
|---|---|
| VOLTAGE STANDING WAVE RATIO | 1.80 SINGLE |
| INSERTION LOSS IN DECIBELS | 1.60 SINGLE |
| TERMINAL TYPE AND QUANTITY | 4 CONNECTOR, RECEPTACLE AND 5 PIN |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |

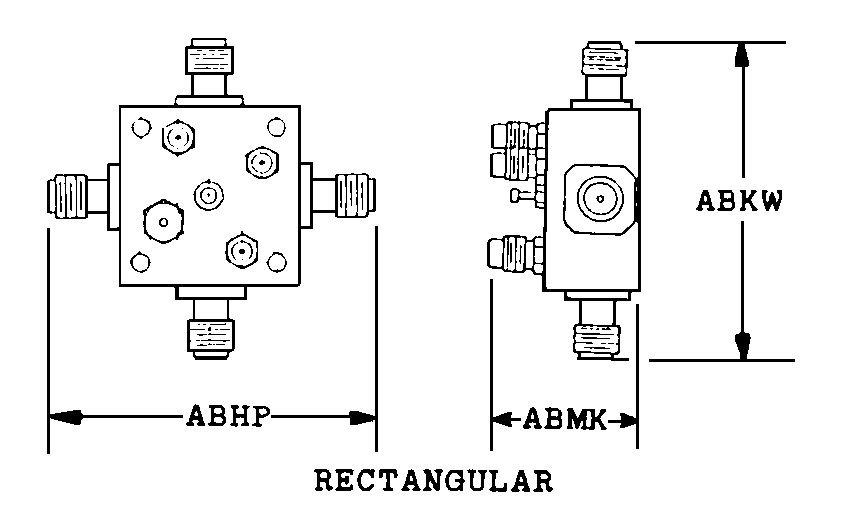

| BODY STYLE | 55B RECTANGULAR |
| OVERALL LENGTH | 2.140 INCHES NOMINAL |
| OVERALL HEIGHT | 2.040 INCHES NOMINAL |
| OVERALL WIDTH | 0.600 INCHES NOMINAL |
| SPECIAL FEATURES | INPUT/OUTPUT COMMECTORS, DC BLOCKED; ISOLATION, 60 DB MINIMUM; OPERATING INPUT POWER, 0 DBM MAXIMUM; 1.79 OZ.; -54 DEG.C. TO + 95 DEG.C. SEA LEVEL, TO 70,000 FT. EXCEPT OPERATION ABOVE +85 DEG.C. SHALL BE LIMITED TO 30 MIN. AT ANY ONE TIME |
| III END ITEM IDENTIFICATION | RADAR WARNING RECEIVER |
| MANUFACTURERS CODE | 81413 |
| MFR SOURCE CONTROLLING REFERENCE | 312182-301 |
Restrictions/Controls & Freight Information | NSN 5985-01-390-7952
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060535 | AERIAL/ANTENNAS DIRECTIONAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-390-7952
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | EW | TG:AIRBORNE ELECTRONIC WARFARE EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
