NSN 5985-01-411-9618 761550C, 7615-50-C, 01-411-9618
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-411-9618 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 761550C, 7615-50-C, 5985-01-411-9618, 01-411-9618, 5985014119618, 014119618
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 APR 1995 | 01-411-9618 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-411-9618
Cross Reference | NSN 5985-01-411-9618
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7615-50-C | 33281 | MATRIX SYSTEMS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-411-9618
Technical Data | NSN 5985-01-411-9618
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | SOLID STATE |
| TERMINAL TYPE AND QUANTITY | 15 RECEPTACLE, COAXIAL AND 1 CONNECTOR, RECEPTACLE |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTOR END DESIGN | FEMALE |

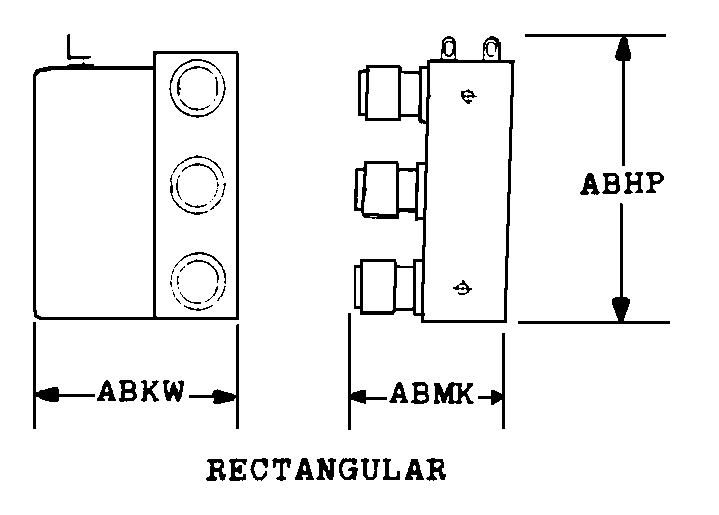

| BODY STYLE | 71B RECTANGULAR |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OVERALL HEIGHT | 11.000 INCHES NOMINAL |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| MATERIAL | STEEL BODY |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE AND 1 SLOT |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.188 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE SINGLE MOUNTING FACILITY PATTERN |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 11.000 INCHES NOMINAL SINGLE MOUNTING FACILITY PATTERN |
| SPECIAL FEATURES | P1 CONNECTOR MOUNTED ON ONE END WITH 17 PINS |
| III END ITEM IDENTIFICATION | QGT |
