NSN 5985-01-432-9003 G2540615V2, G254061-5V2, G2540615V3
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-432-9003 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: G2540615V2, G254061-5V2, G2540615V3, G254061-5V3, PCS5029, 1153K119, 1153-K119, 5985-01-432-9003, 01-432-9003, 5985014329003, 014329003
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-432-9003 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-432-9003
Cross Reference | NSN 5985-01-432-9003
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110-F103 | 1UJ73 | R.H. LABORATORIES, INC. |
| 1153-K119 | 62841 | ROBINSON LABORATORIES INC |
| 4258417-501 | 93346 | SENSOR AND ANTENNA SYSTEMS, LANSDALE, INC. |
| G254061-5V1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| G254061-5V1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| G254061-5V2 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| G254061-5V2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| G254061-5V3 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| G254061-5V4 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| PCS5029 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| PCS5029 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-432-9003
Technical Data | NSN 5985-01-432-9003
| Characteristic | Specifications |
|---|---|
| RF POWER HANDLING CAPABILITY | 20.0 DECIBELS AVERAGE SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.50 SINGLE |
| INSERTION LOSS IN DECIBELS | 1.20 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, RECEPTACLE |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | MALE |

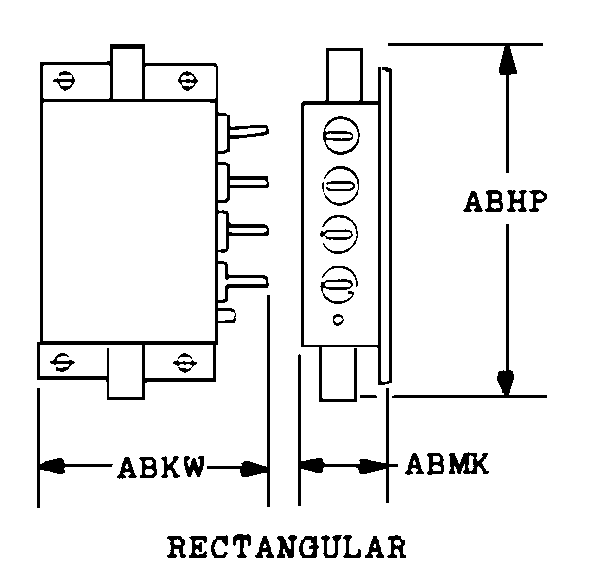

| BODY STYLE | 59B RECTANGULAR |
| OVERALL HEIGHT | 1.130 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| SPECIAL FEATURES | ELECTROSTATIC DISCHARGE SENSITIVE; VIDEO LEAKAGE, 100 MV; ALTITUDE, SEALEVEL TO 50,000 FEET; INPUT/OUTPUT IMPEDANCE, 50 OHMS; OPERATING TEMPERATURE, -54 DED.C. TO +95 DEG.C. |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AN/ALQ-184 (V) |
| MANUFACTURERS CODE | 49956 |
| MFR SOURCE CONTROLLING REFERENCE | G254061-5V3 |
Restrictions/Controls & Freight Information | NSN 5985-01-432-9003
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
