NSN 5985-01-453-1056 SEM163D, SEM-163D, 01-453-1056
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-453-1056 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: SEM163D, SEM-163D, 5985-01-453-1056, 01-453-1056, 5985014531056, 014531056
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-453-1056 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-453-1056
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-453-1056
Technical Data | NSN 5985-01-453-1056
| Characteristic | Specifications |
|---|---|
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 6 CONNECTOR, RECEPTACLE |
| SWITCH RETURN MECHANISM TYPE | LATCHING |

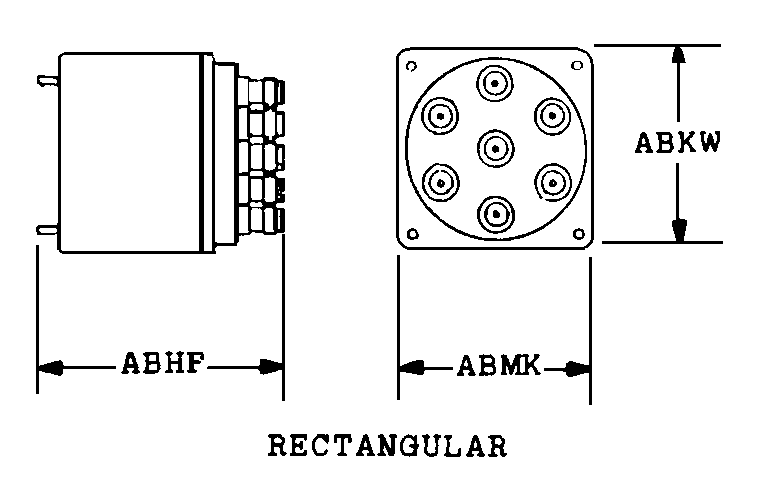

| BODY STYLE | 87B RECTANGULAR |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.558 INCHES NOMINAL |
| SPECIAL FEATURES | TTL LOGIC CONTROL |
Restrictions/Controls & Freight Information | NSN 5985-01-453-1056
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
