NSN 5985-01-475-2085 107637, 1081091, 108109-1
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-475-2085 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 107637, 1081091, 108109-1, 5985-01-475-2085, 01-475-2085, 5985014752085, 014752085
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAY 2000 | 01-475-2085 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-475-2085
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-475-2085
Related Products | NSN 5985-01-475-2085
Technical Data | NSN 5985-01-475-2085
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 1152.0 MEGAHERTZ MINIMUM AND 1728.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| RF POWER HANDLING CAPABILITY | 11.0 DECIBELS PEAK SINGLE |
| INSERTION LOSS IN DECIBELS | 0.50 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 0.50 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.125 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 12.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 10 PLUG, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BN |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 7.0 NANOSECONDS |

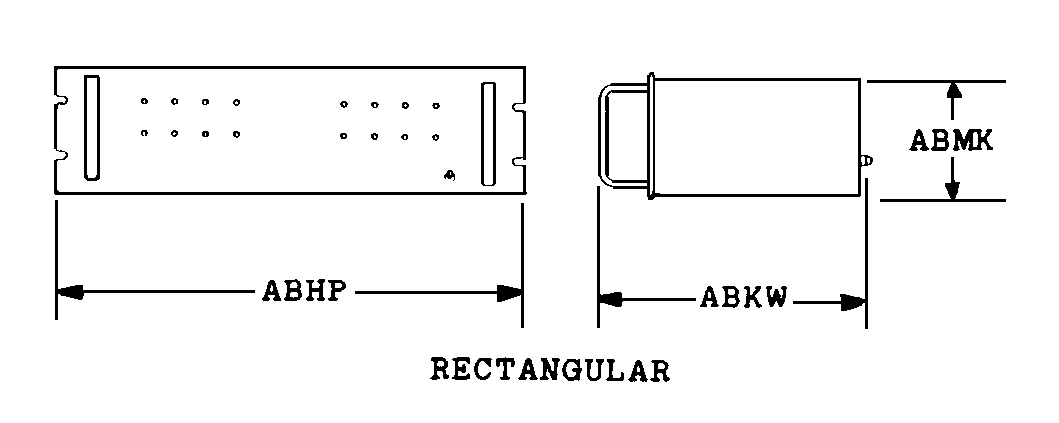

| BODY STYLE | 129B RECTANGULAR |
| OVERALL LENGTH | 3.678 INCHES NOMINAL |
| OVERALL HEIGHT | 0.698 INCHES NOMINAL |
| OVERALL WIDTH | 4.480 INCHES NOMINAL |
| MATERIAL | ALUMINUM BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-H-38534 MIL SPEC SINGLE MATERIAL RESPONSE BODY |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.300 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AN/ALQ-99,F/A18-E/F |
Restrictions/Controls & Freight Information | NSN 5985-01-475-2085
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | Y | COMMUNICATION/ELECTRONIC EQUIPMENT AND PARTS |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5985-01-475-2085
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | XE | I-CAP II peculiarAIRCRAFT(EA-6B) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 2 | Electrostatic Discharge (ESD)/Electromagnetic (EM) Sensitive Item |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | Y | COMMUNICATION/ELECTRONIC EQUIPMENT AND PARTS |
| Shelf Life Code | 0 | Nondeteriorative |
