NSN 5985-01-506-1465 F9150T, 01-506-1465, 015061465
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-506-1465 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: F9150T, 5985-01-506-1465, 01-506-1465, 5985015061465, 015061465
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 MAR 2003 | 01-506-1465 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-506-1465
Cross Reference | NSN 5985-01-506-1465
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F9150T | 11332 | GENERAL MICROWAVE CORPORATION DBA KRATOS GENERAL MICROWAVE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-506-1465
Technical Data | NSN 5985-01-506-1465
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 1.0 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| RF POWER HANDLING CAPABILITY | 1.0 WATTS AVERAGE SINGLE |
| INSERTION LOSS IN DECIBELS | 3.00 SINGLE |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 5 |
| THROW QUANTITY | 5 |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 6 PLUG, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| SWITCHING TIME | 500.0 NANOSECONDS |

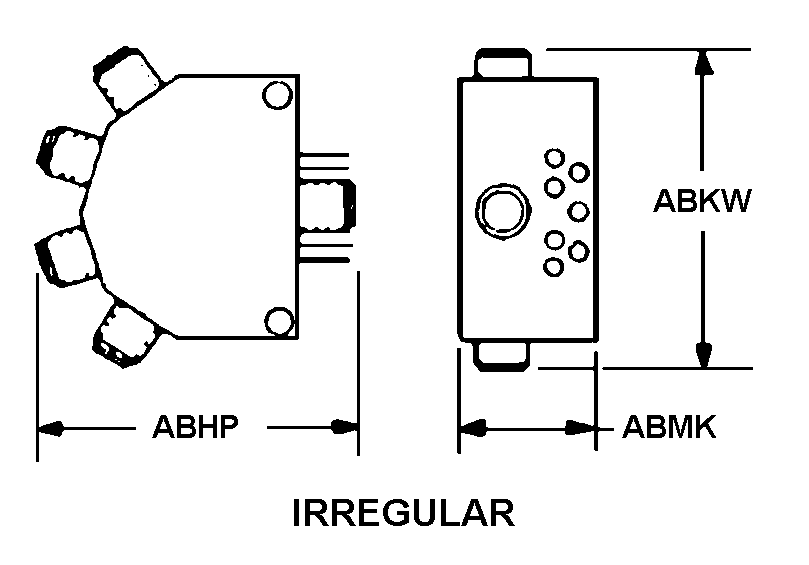

| BODY STYLE | 81B IRREGULAR |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.880 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
Restrictions/Controls & Freight Information | NSN 5985-01-506-1465
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
