Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-536-2226 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 440191, 4401911, 440191-1, 4401912, 440191-2, 8438S612, 8438-S612, 8438S738, 8438-S738, 5985-01-536-2226, 01-536-2226, 5985015362226, 015362226
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 DEC 2005 | 01-536-2226 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

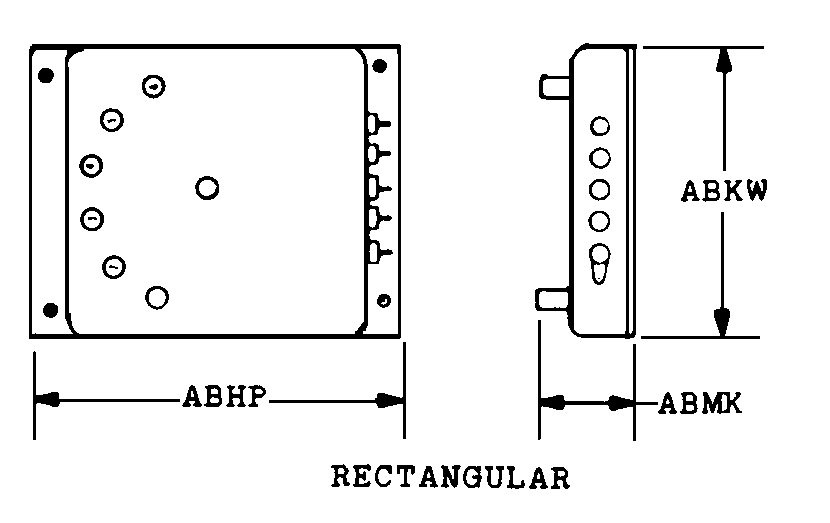

Drawings & Photos | NSN 5985-01-536-2226
Demand History | NSN 5985-01-536-2226
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-536-2226 | 2011-01-13 | 3 | US |
Cross Reference | NSN 5985-01-536-2226
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 440191 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
| 440191-1 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
| 440191-2 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
| 8438-S612 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
| 8438-S738 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-536-2226
Related Products | NSN 5985-01-536-2226
Technical Data | NSN 5985-01-536-2226
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 1.8 GIGAHERTZ MINIMUM AND 2.6 MEGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING |
| RF POWER HANDLING CAPABILITY | 20.0 DECIBELS AVERAGE SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.60 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 40.0 SINGLE |
| ACTUATOR OPERATING METHOD | SOLID STATE |
| SWITCH TYPE | TRANSFER |
| TERMINAL TYPE AND QUANTITY | 6 RECEPTACLE, COAXIAL AND 5 PIN |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 10.0 MICROSECONDS |
| BODY STYLE | 51B RECTANGULAR |
| OVERALL LENGTH | 3.280 INCHES NOMINAL |
| OVERALL HEIGHT | 1.160 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY PATTERN |
| SPECIAL FEATURES | ITEM IS CALLED "TRANSMITTER RF SWITCH/LIMITER ATTENUATOR |
| III UNPACKAGED UNIT WEIGHT | 15.000 OUNCES |
| III END ITEM IDENTIFICATION | AN/ALQ-161A |
