Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-563-5364 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: TSEMBITRANTS, TSE-MBITR-ANT-S, TSESWMBITR, TSE-SW-MBITR, 20137220, 2013-7220, 5985-01-563-5364, 01-563-5364, 5985015635364, 015635364
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 MAY 2008 | 01-563-5364 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-563-5364
Demand History | NSN 5985-01-563-5364
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-563-5364 | 2020-04-121 | 12 | GE |
| 5985-01-563-5364 | 2020-04-121 | 12 | US |
| 5985-01-563-5364 | 2014-05-132 | 2 | US |
| 5985-01-563-5364 | 2013-03-79 | 14 | US |
| 5985-01-563-5364 | 2012-10-290 | 100 | US |
| 5985-01-563-5364 | 2012-10-277 | 2 | United States |
| 5985-01-563-5364 | 2012-08-221 | 5 | US |
| 5985-01-563-5364 | 2011-11-313 | 26 | US |
| 5985-01-563-5364 | 2011-11-306 | 26 | US |
| 5985-01-563-5364 | 2011-06-165 | 50 | US |
| 5985-01-563-5364 | 2011-04-95 | 430 | United States |
| 5985-01-563-5364 | 2011-03-68 | 23 | US |
| TSEMBITRANTS | 2010-01-06 | 28 | US |
| 5985-01-563-5364 | 2009-10-300 | 90 | US |
Cross Reference | NSN 5985-01-563-5364
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-563-5364
Technical Data | NSN 5985-01-563-5364
| Characteristic | Specifications |
|---|---|
| RF POWER HANDLING CAPABILITY | 7.0 WATTS PEAK SINGLE |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 1 PLUG, COAXIAL AND 2 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC AND TNC |
| CONNECTOR END DESIGN | MALE AND FEMALE |

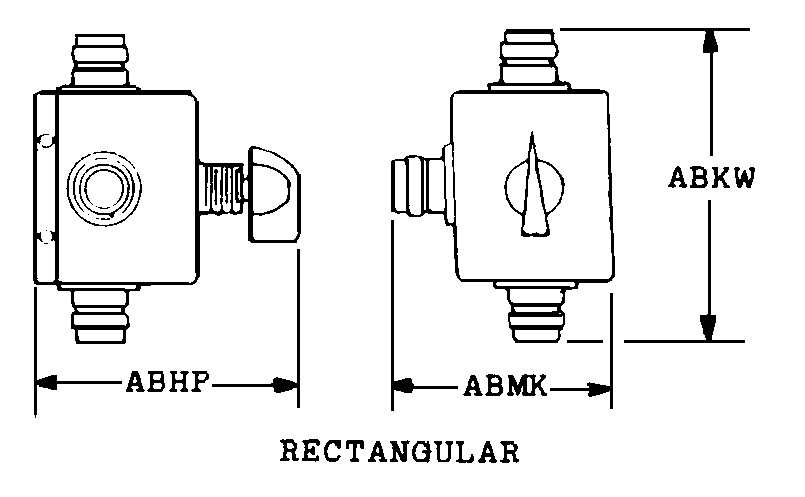

| BODY STYLE | 93B RECTANGULAR |
