NSN 5998-01-514-7449 1747M13, 1747-M13, 01-514-7449
Product Details | ELECTRONIC COMPONENTS ASSEMBLY
5998-01-514-7449 A grouping of two or more different types of electrical/electronic components mounted on a common mounting. It may include an assembly of electrical/electronic components mounted on multiple PRINTED WIRING BOARD(S) mounted back to back, stacked, and the like. The item is generally a component of a subassembly and cannot be assigned a more definite item name. Excludes items which may be identified as a subassembly. For an assembly of electrical/electronic components mounted on a single PRINTED WIRING BOARD, see CIRCUIT CARD ASSEEMBLY. Do not use if a more specific name applies.
Part Alternates: 1747M13, 1747-M13, 5998-01-514-7449, 01-514-7449, 5998015147449, 015147449
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 NOV 2003 | 01-514-7449 | 26088 ( ELECTRONIC COMPONENTS ASSEMBLY ) |

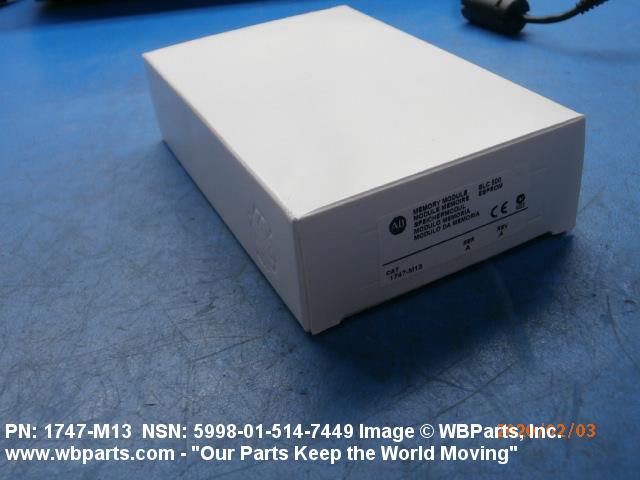

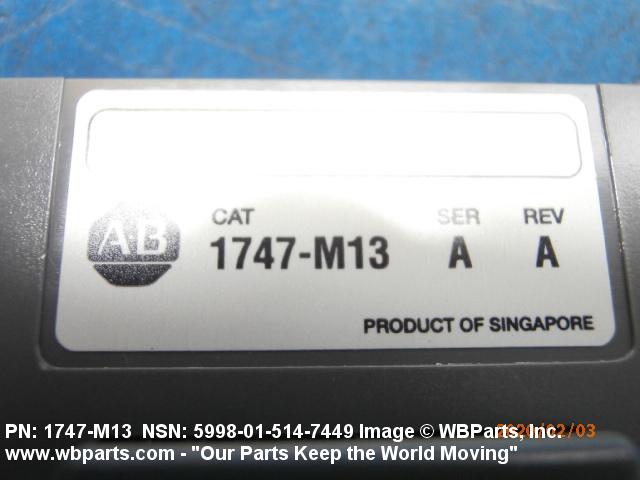

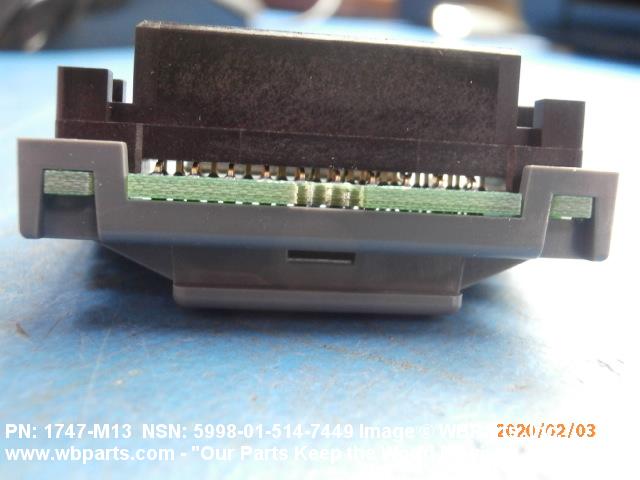

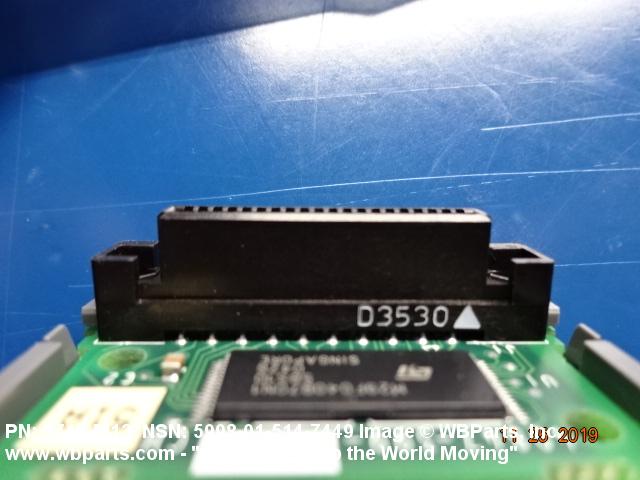

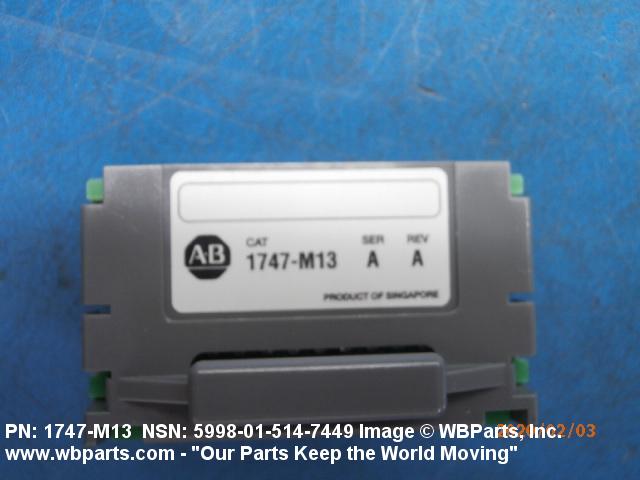

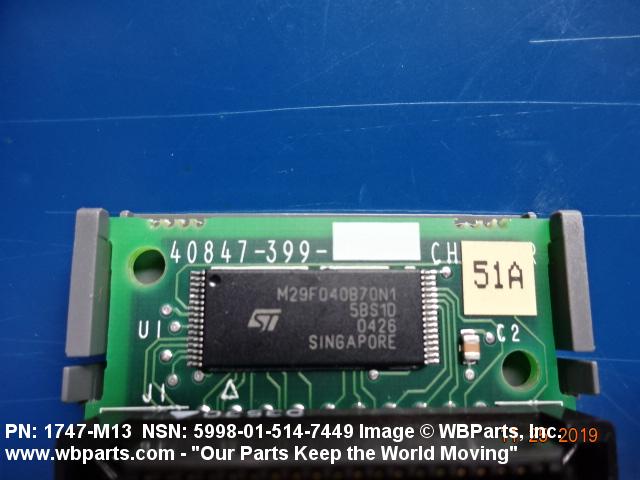

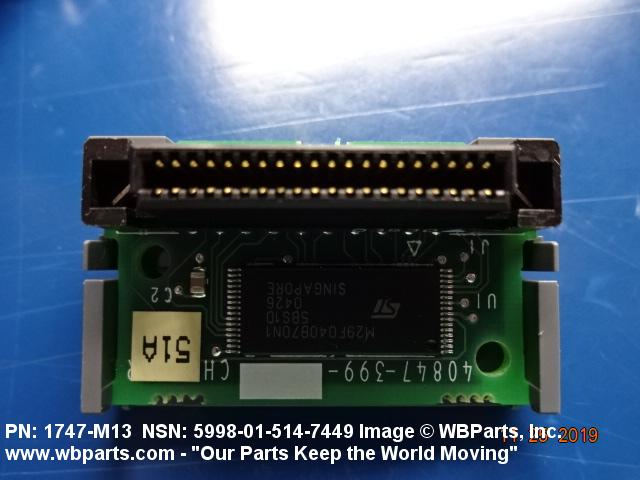

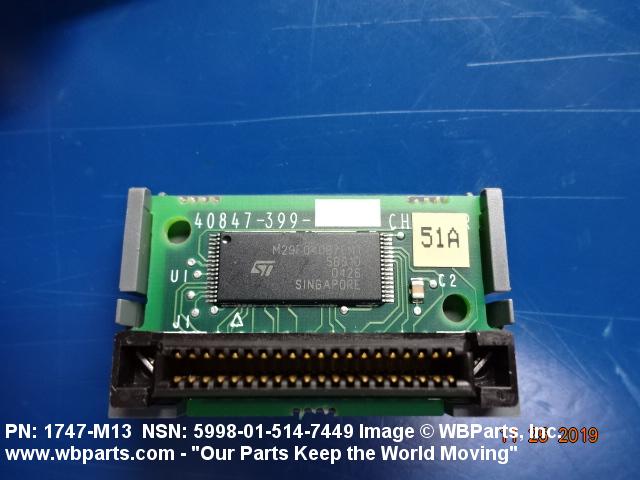

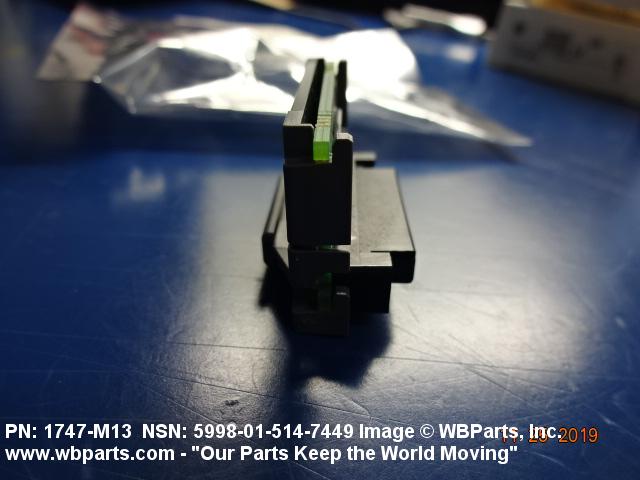

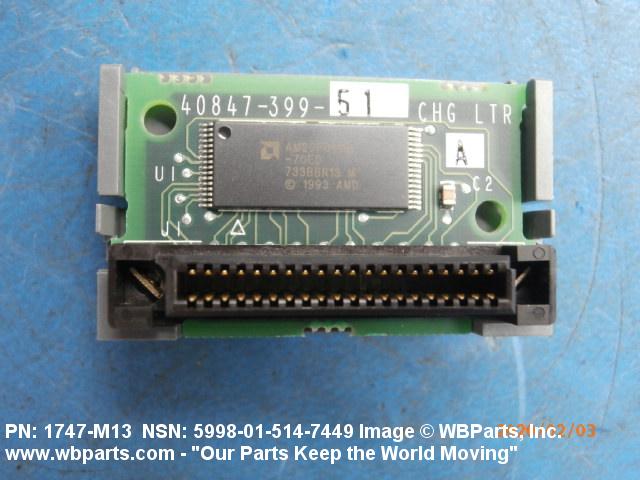

Drawings & Photos | NSN 5998-01-514-7449
Demand History | NSN 5998-01-514-7449
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1747M13 | 2020-01-29 | 2 | United States |
| 1747M13 | 2019-09-267 | 6 | United States |
| 5998-01-514-7449 | 2017-11-306 | 16 | DIBBS |
| 5998-01-514-7449 | 2016-09-263 | 4 | DIBBS |
| 5998-01-514-7449 | 2015-01-19 | 8 | DIBBS |
| 5998-01-514-7449 | 2014-11-330 | 8 | DIBBS |
| 5998-01-514-7449 | 2014-11-309 | 8 | DIBBS |
| 5998-01-514-7449 | 2014-05-121 | 1 | DIBBS |
| 5998-01-514-7449 | 2013-06-177 | 1 | DIBBS |
| 5998-01-514-7449 | 2010-06-163 | 1 | DIBBS |
| 5998-01-514-7449 | 2010-04-105 | 1 | DIBBS |
Cross Reference | NSN 5998-01-514-7449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1747-M13 | 01121 | ROCKWELL AUTOMATION, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5998-01-514-7449
Technical Data | NSN 5998-01-514-7449
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | MEMORY MODULE |
| END ITEM IDENTIFICATION | P/N 213082-M1 SHIPS SERVICE SWITCHBOARD ONBOARD 175 FT WLM COAST GUARD VESSELS |
| SPECIAL FEATURES | HUMIDITY - 5 TO 95 PERCENT W/O CONDENSATION |
| MANUFACTURERS CODE | 01121 |
| DESIGN CONTROL REFERENCE | 1747-M13 |
Restrictions/Controls & Freight Information | NSN 5998-01-514-7449
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XG | USCG Engineering Logistics Center Baltimore, MD 21226-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5998-01-514-7449
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
