NSN 5999-00-003-3515 25P18382B001, 7478, 74-78
Product Details | DELAY LINE
5999-00-003-3515 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 25P18382B001, 7478, 74-78, 5999-00-003-3515, 00-003-3515, 5999000033515, 000033515
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 MAY 1972 | 00-003-3515 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-00-003-3515
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-00-003-3515
Related Products | NSN 5999-00-003-3515
Technical Data | NSN 5999-00-003-3515
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | TAPPED |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 500.000 NANOSECONDS MAXIMUM SINGLE SECTION |
| SEGMENT QUANTITY PER SECTION | 2 SINGLE SECTION |
| OPERATING TEMP RANGE | -28.0 TO 80.0 DEG CELSIUS |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 500.000 OHMS |
| OUTPUT IMPEDANCE RATING | 500.000 OHMS |
| ATTENUATION IN DECIBELS | NOT RATED |
| VOLTAGE RATING | 1.000 VOLTS MINIMUM AND 75.000 VOLTS MAXIMUM |
| PULSE RISE TIME RATING | NOT RATED |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |
| BODY STYLE | 10 RECTANGULAR, W/SHAFT |
| OVERALL DEPTH | 4.800 INCHES MAXIMUM |
| BODY LENGTH | 1.250 INCHES MAXIMUM |
| BODY WIDTH | 0.500 INCHES NOMINAL |
| BODY DEPTH | 4.500 INCHES NOMINAL |
| DISTANCE FROM END OF BODY TO CENTER OF SHAFT | 0.990 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF SHAFT | 0.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 TAB SOLDER LUG |
| MOUNTING FACILITY | THREADED HOLE |
| MOUNTING FACILITY QUANTITY | 3 |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.112-40 UNC |
| THREAD CLASS | 2B |
| THREAD PITCH DIAMETERS | 0.1000 TO 0.1001 INCHES |

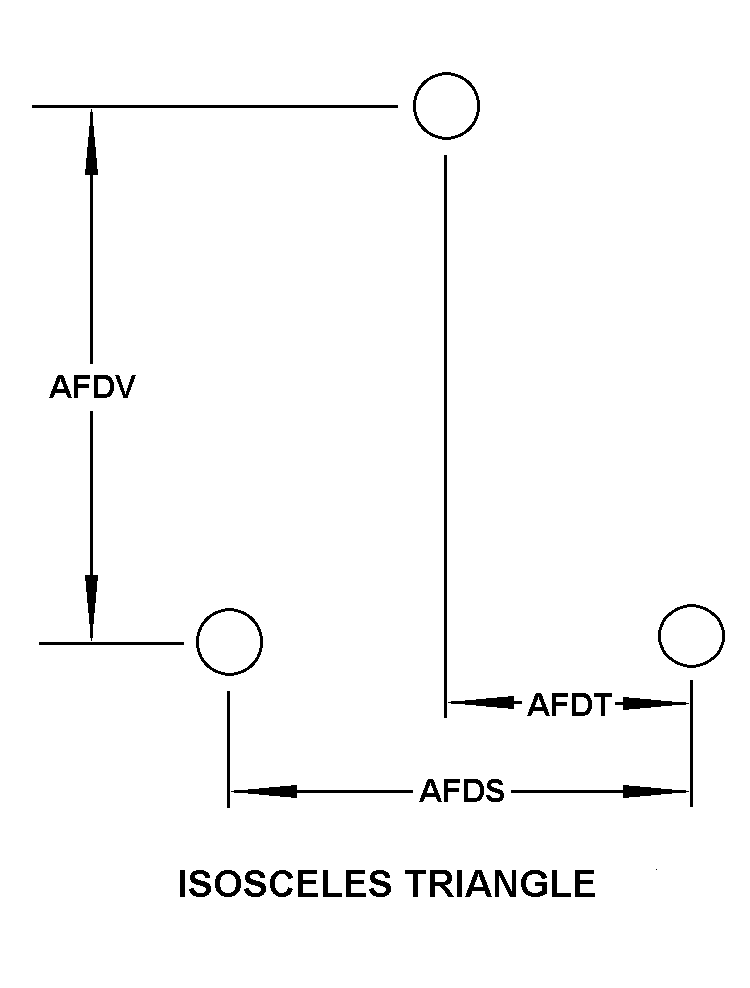

| MOUNTING PROVISION ARRANGEMENT STYLE | 8 ISOSCELES TRIANGLE |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 4.209 INCHES NOMINAL |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.600 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.890 INCHES NOMINAL |
| MANUFACTURERS CODE | 03950 |
| DESIGN CONTROL REFERENCE | 74-78 |
Restrictions/Controls & Freight Information | NSN 5999-00-003-3515
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-003-3515
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
