Product Details | DELAY LINE
5999-00-067-9011 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 128C243H01, 5999-00-067-9011, 00-067-9011, 5999000679011, 000679011
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUL 1967 | 00-067-9011 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-00-067-9011
Cross Reference | NSN 5999-00-067-9011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128C243H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-00-067-9011
Related Products | NSN 5999-00-067-9011
Technical Data | NSN 5999-00-067-9011
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | VARIABLE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 20.000 MICROSECONDS NOMINAL SINGLE SECTION |
| OPERATING TEMP RANGE | NOT RATED |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 1.000 KILOHMS |
| OUTPUT IMPEDANCE RATING | 1.000 KILOHMS |
| ATTENUATION IN DECIBELS | 3.000 |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | 50.0 NANOSECONDS |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | 720.0 KILOHERTZ NOMINAL |
| ADJUSTMENT DEVICE DRIVE TYPE | SHAFT |
| ADJUSTMENT DEVICE QUANTITY | 1 |
| SHAFT STYLE | 1 ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.500 INCHES NOMINAL |

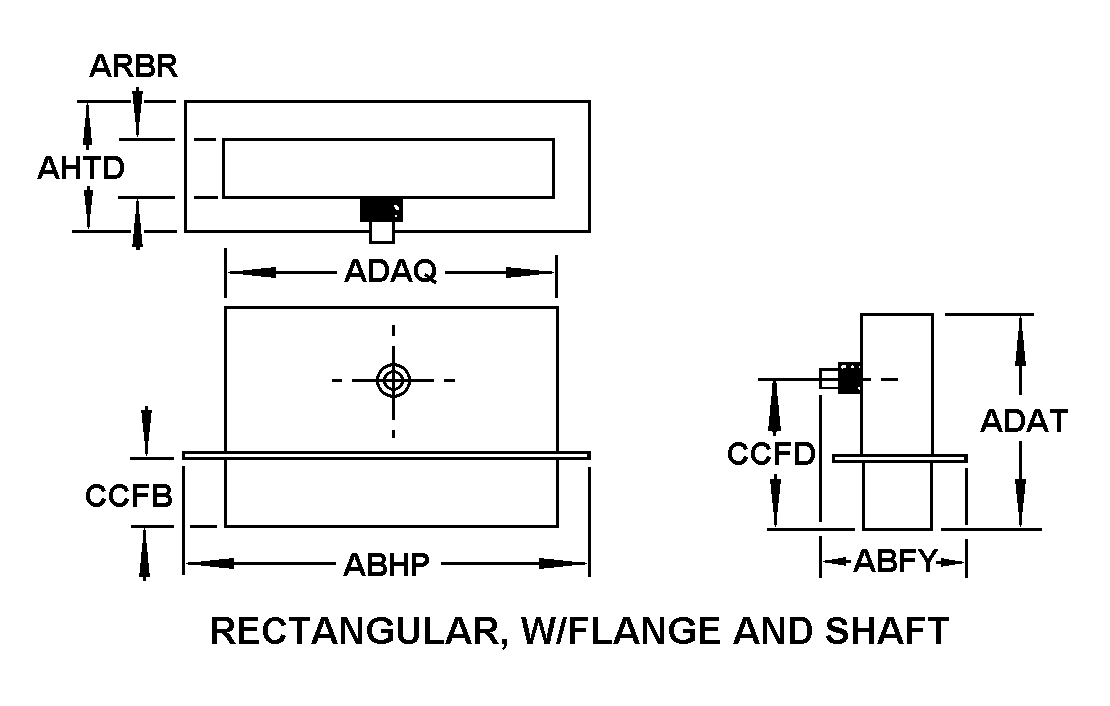

| BODY STYLE | 9 RECTANGULAR, W/FLANGE AND SHAFT |
| OVERALL DEPTH | 8.500 INCHES NOMINAL |
| OVERALL LENGTH | 6.470 INCHES NOMINAL |
| BODY LENGTH | 5.000 INCHES NOMINAL |
| BODY WIDTH | 2.250 INCHES NOMINAL |
| FLANGE DEPTH | 8.687 INCHES NOMINAL |
| BODY DEPTH | 8.000 INCHES NOMINAL |
| DISTANCE FROM FLANGE TO BOTTOM OF BODY | 0.060 INCHES NOMINAL |
| DISTANCE FROM END OF BODY TO CENTER OF SHAFT | 0.380 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF SHAFT | 1.120 INCHES NOMINAL |
| MATERIAL AND LOCATION | ANY ACCEPTABLE OVERALL |
| SURFACE TREATMENT AND LOCATION | ANY ACCEPTABLE OVERALL |
| TERMINAL TYPE AND QUANTITY | 2 COAXIAL RECEPTACLE |
| MOUNTING FACILITY | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
| HOLE DIAMETER | 0.172 INCHES NOMINAL |
| MOUNTING PROVISION ARRANGEMENT STYLE | 2 FOUR POSITION RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 5.470 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 7.000 INCHES NOMINAL |
| SPECIAL FEATURES | TWO ADJUSTMENT CONTROLS W/SHAFTS FIRST ADJUSTMENT HAS 10STEPS EACH STEP RATED AT 500 NANOSECONDS SECOND ADJUSTMENT HAS3 STEPS EACH STEP RATED AT 5 MICROSECONDS |
| TEST DATA DOCUMENT | 89661-128C243 DRAWING |
| III FSC APPLICATION DATA | RADAR NONAIRBORNE EXCEPT FIRE CONTROL AND GUIDED MISSILE |
