Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-481-5513 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: M38527/06-001D, M38527/06-001N, M38527/6-01N, M3852706001D, M3852706001N, M38527116N1, M38527-1-16N1, M38527601D, M38527-6-01D, M38527601N, A-55485/06-001D, A5548506001D, A-A-55485/06, AA5548506, AB/1/33/9301, AB1339301, C118300005, C11830-0005, C121Z13C5, CP25661, CP25-6-6-1, S3144001E, S314-4001E, SMB956355, SM-B-956355, SN0803576, ST421020HE0006, MILM385276, MIL-M-38527-6, R10549P5, RL304, RL-304, 6010339001, 6010339-001, 654743, 71589996, 715899-96, 74471527001, 77081275, 7717175DAP, 7717-175DAP, 8580523618, 85-805236-18, 9044045, 904404-5, 91316828, 9354381, 935438-1, 99045322, 0803576, 0N288575, 10105, 10105DAP, 10129541 , 10163843, 10220013, 10557409, 11241456, 11663134, 12641036, 1264-1036, 1311051, 131105-1, 16255261, 1625526-1, 19850991, 1985099-1, 21691, 216-9-1, 2508789, 262371, 28685361, 2868536-1, 3028867, 4000325201, 40-003252-01, 4070471, 407047-1, 42179304003, 42179-304-00-3, 426802D, 4-26802D , 505434, 5334992, 533499-2, 53862290, 538622-90, 5800748995111035, 5800748-995111-035, 5999-00-481-5513, 00-481-5513, 5999004815513, 004815513
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 MAR 1972 | 00-481-5513 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |

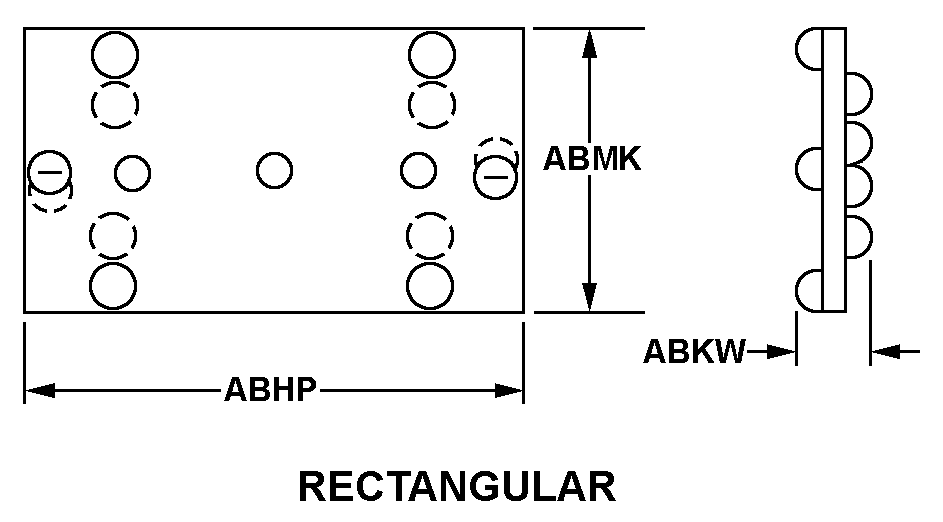

Drawings & Photos | NSN 5999-00-481-5513
Demand History | NSN 5999-00-481-5513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-00-481-5513 | 2021-04-14 | 100 | United States |
| 5999-00-481-5513 | 2017-07-30 | 6250 | DIBBS |
| 5999-00-481-5513 | 2017-06-29 | 3334 | DIBBS |
| 5999-00-481-5513 | 2017-06-18 | 3334 | DIBBS |
| 5999-00-481-5513 | 2017-05-15 | 3334 | DIBBS |
| 5999-00-481-5513 | 2017-05-04 | 3334 | DIBBS |
| 5999-00-481-5513 | 2015-09-15 | 3334 | DIBBS |
| 5999-00-481-5513 | 2015-09-02 | 3334 | DIBBS |
| M3852706001D | 2014-07-07 | 100 | India |
| M3852706001D | 2012-06-19 | 200 | US |
| MILM385276 | 2011-12-12 | 5 | US |
| 7717175DAP | 2011-10-17 | 10 | India |
| M3852706001D | 2010-12-15 | 200 | IN |
| 5999-00-481-5513 | 2010-12-13 | 100 | IN |
| M3852706001D | 2010-12-09 | 72 | IN |
| M3852706001D | 2010-12-07 | 72 | IN |
Cross Reference | NSN 5999-00-481-5513
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0803576 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| 0N288575 | 98230 | NATIONAL SECURITY AGENCY |
| 10105 | 07047 | ROSS MILTON CO THE |
| 10105DAP | F5924 | MILTON ROSS COMPOSANTS |
| 10105DAP | K6265 | LEACH INTERNATIONAL UK LTD |
| 10163843 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10220013 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10557409 | 19200 | US ARMY ARDEC RDECOM |
| 11241456 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| 11663134 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 1264-1036 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 131105-1 | 19133 | MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS AEROSPACE |
| 1625526-1 | 99251 | CARLETON LIFE SUPPORT SYSTEMS INC. DBA COBHAM MISSION SYSTEM |
| 1985099-1 | 94580 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 216-9-1 | 25549 | LITTON SYSTEMS INC AMECOM DIV |
| 216-9-1 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| 2508789 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 262371 | 61423 | KIDDE TECHNOLOGIES INC DIV KIDDE AEROSPACE AND DEFENSE |
| 2868536-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 3028867 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 4-26802D | A0069 | SELEX ES SPA |
| 40-003252-01 | 30890 | INTERLINK COMMUNICATIONS INC |
| 407047-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 42179-304-00-3 | K4556 | BRITISH AEROSPACE DEFENCE SYSTEMS LTD T/A BAE SYSTEMS |
| 42179-304-00-3 | KC1M9 | BAE SYSTEMS MARITIME SERVICESLIMITED |
| 505434 | 12909 | CARDION INC |
| 533499-2 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 538622-90 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5800748-995111-035 | C0426 | AIRBUS DEFENCE AND SPACE GMBHELECTRONICS |
| 6010339-001 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 654743 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 715899-96 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 74471527001 | 89944 | KOLLSMAN, INC. |
| 77081275 | F6180 | ALCATEL LUCENT FRANCE |
| 77081275 | F6204 | ALCATEL TELSPACE |
| 7717-175DAP | 13103 | THERMALLOY CO INC |
| 7717-175DAP | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| 7717-175DAP | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 85-805236-18 | 07397 | GENERAL DYNAMICS ADVANCED INFORMATION SYSTEMS INC. |
| 904404-5 | 05257 | GENERAL DYNAMICS CANADA LTD |
| 91316828 | F0053 | THALES COMMUNICATIONS |
| 91316828 | F6481 | THALES SA |
| 935438-1 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 99045322 | D2416 | THALES DEFENCE & SECURITY SYSTEMSGMBH |
| 99045322 | F8224 | THALES AIR SYSTEMS SA |
| A-55485/06-001D | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-55485/06 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| AB/1/33/9301 | K4244 | BAE SYSTEMS GLOBAL COMBAT SYSTEMS LIMITED |
| C11830-0005 | 59885 | ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY |
| C121Z13C5 | S3120 | SIEMENS SCHWEIZ AG DBA SIEMENS SWITZERLAND LTD. |
| CP25-6-6-1 | 99696 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN SYSTEMS & GLOBAL |
| M38527-1-16N1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38527-6-01D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38527/06-001D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38527/06-001D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| M38527/06-001N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38527/6-01N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-38527-6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| R10549P5 | 16331 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| RL-304 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| S314-4001E | H0D18 | THALES NEDERLAND B.V. DBA LAND & JOINT SYSTEMS |
| S314-4001E | H2294 | THALES OPTRONICS B.V. |
| SM-B-956355 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SN0803576 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| ST421020HE0006 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
