Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-932-9055 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: VCD0033, 7717115DAP, 7717-115DAP, 10036DAP, 5999-00-932-9055, 00-932-9055, 5999009329055, 009329055
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-932-9055 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |

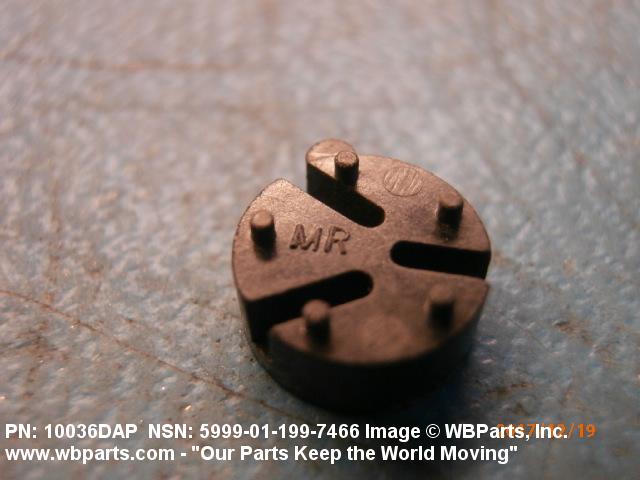

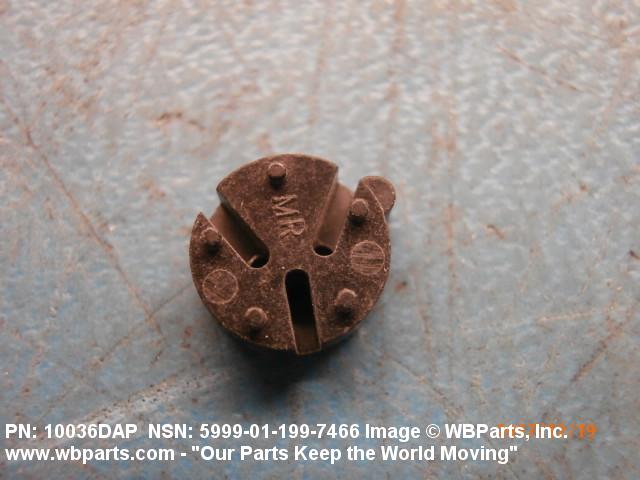

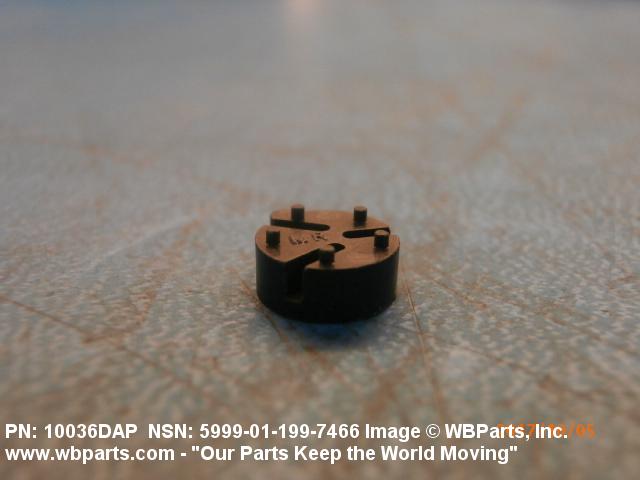

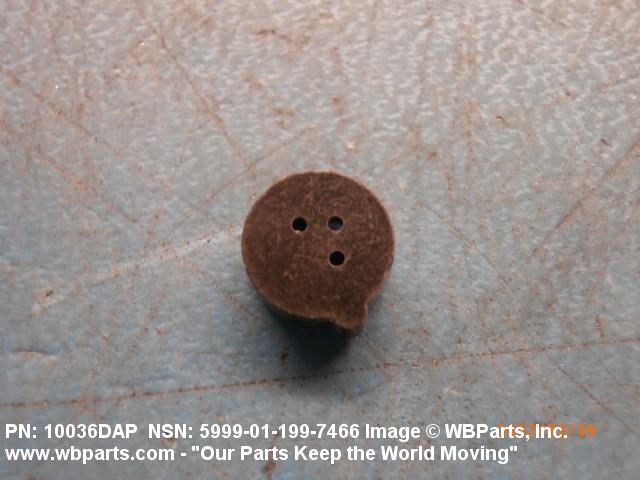

Drawings & Photos | NSN 5999-00-932-9055
Demand History | NSN 5999-00-932-9055
Cross Reference | NSN 5999-00-932-9055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10036-DAP | 07047 | ROSS MILTON CO THE |
| 7717-115DAP | 13103 | THERMALLOY CO INC |
| 94208-6 | 24338 | EDO WESTERN CORPORATION DBA EDO ELECTRO CERAMIC PRODUCTS |
| A-A-55485/01 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A10036 | 07047 | ROSS MILTON CO THE |
| A55485/01-048D | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| M38527/01-048D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38527/01-048N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-38527/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| VCD0033 | 03024 | SENIOR OPERATIONS LLC DBA KETEMA AEROSPACE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5999-00-932-9055
5999-00-932-9100, 5999-00-932-9151, 5999-00-932-9183, 5999-00-932-9185, 5999-00-932-9187
Technical Data | NSN 5999-00-932-9055
| Characteristic | Specifications |
|---|---|

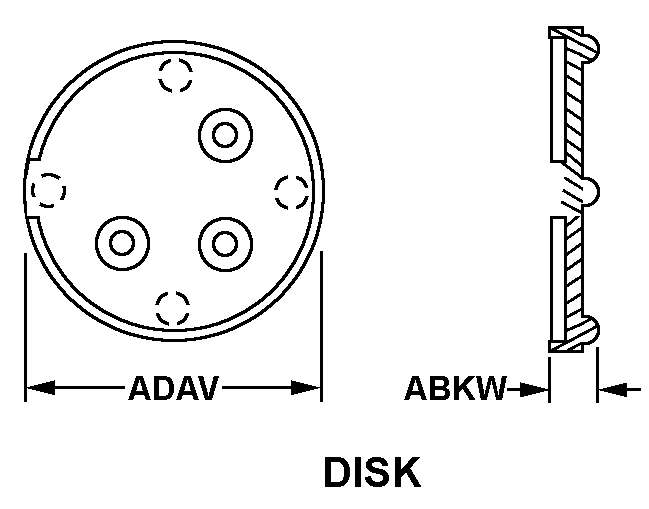

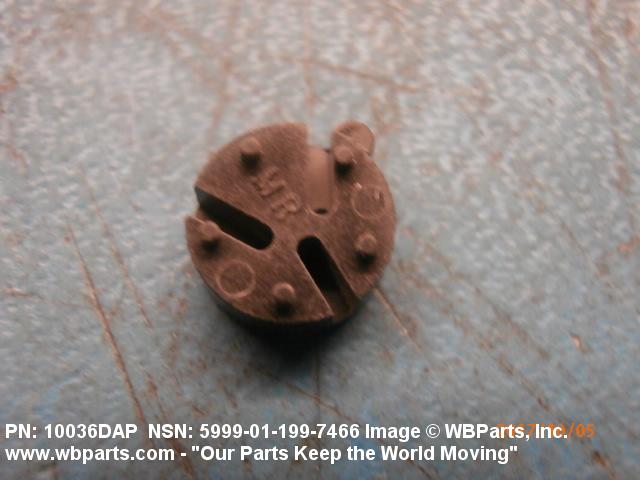

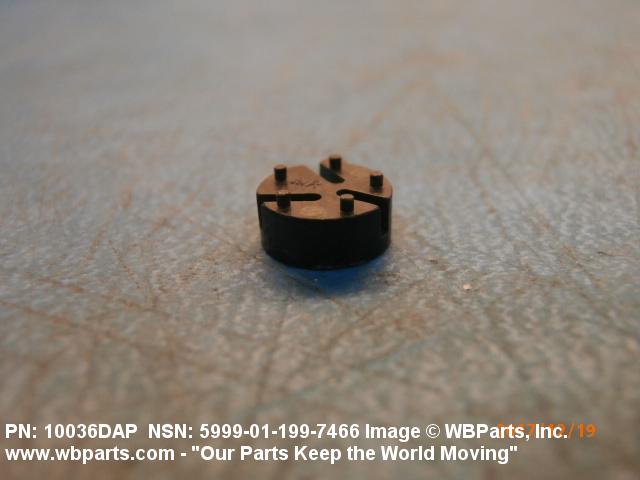

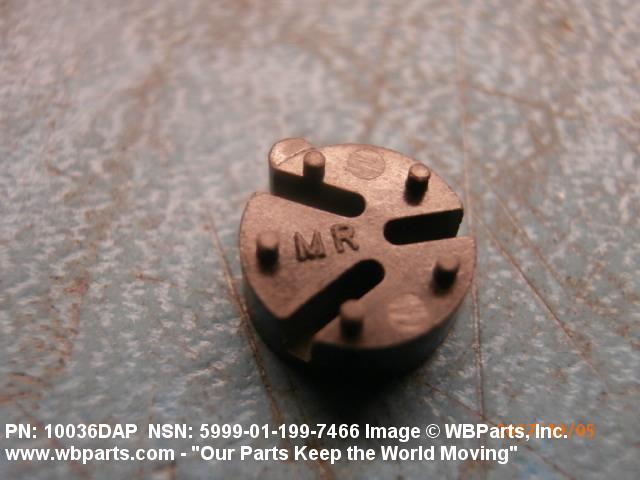

| BODY STYLE | 24B DISK |

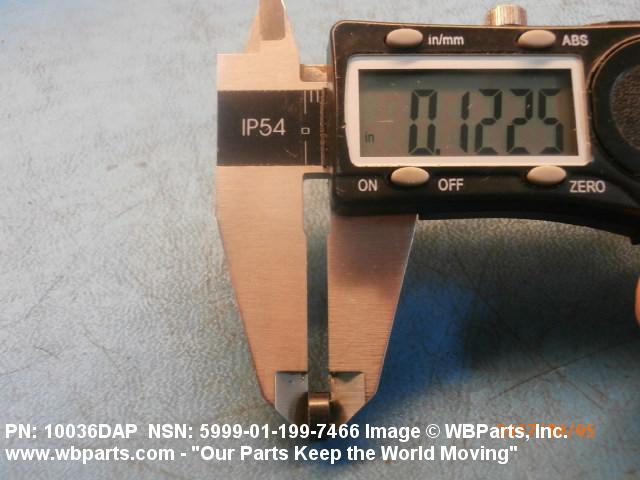

| OVERALL HEIGHT | 0.150 INCHES NOMINAL |

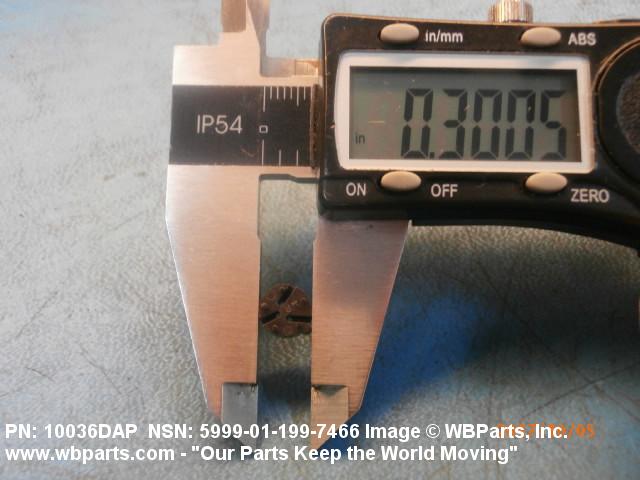

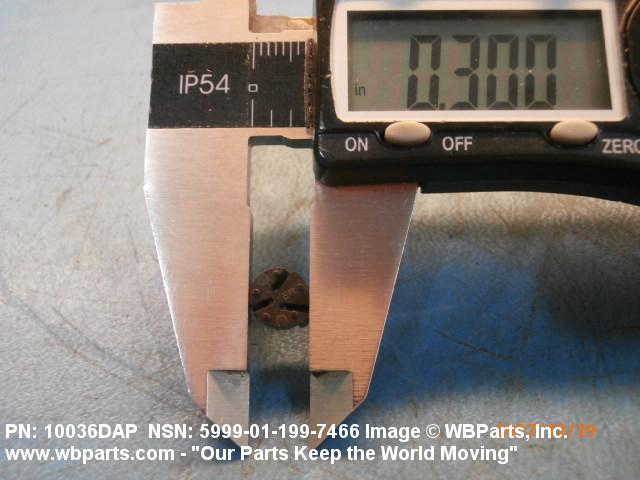

| OVERALL DIAMETER | 0.300 INCHES NOMINAL |
| COLOR | BLACK |

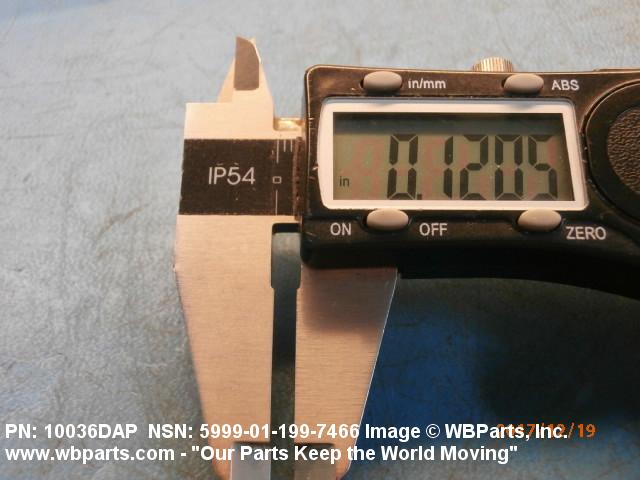

| MATERIAL | PLASTIC DIALLYL PHTHALATE MINERAL FILLED |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14F,TYPE SDG MIL SPEC SINGLE MATERIAL RESPONSE |

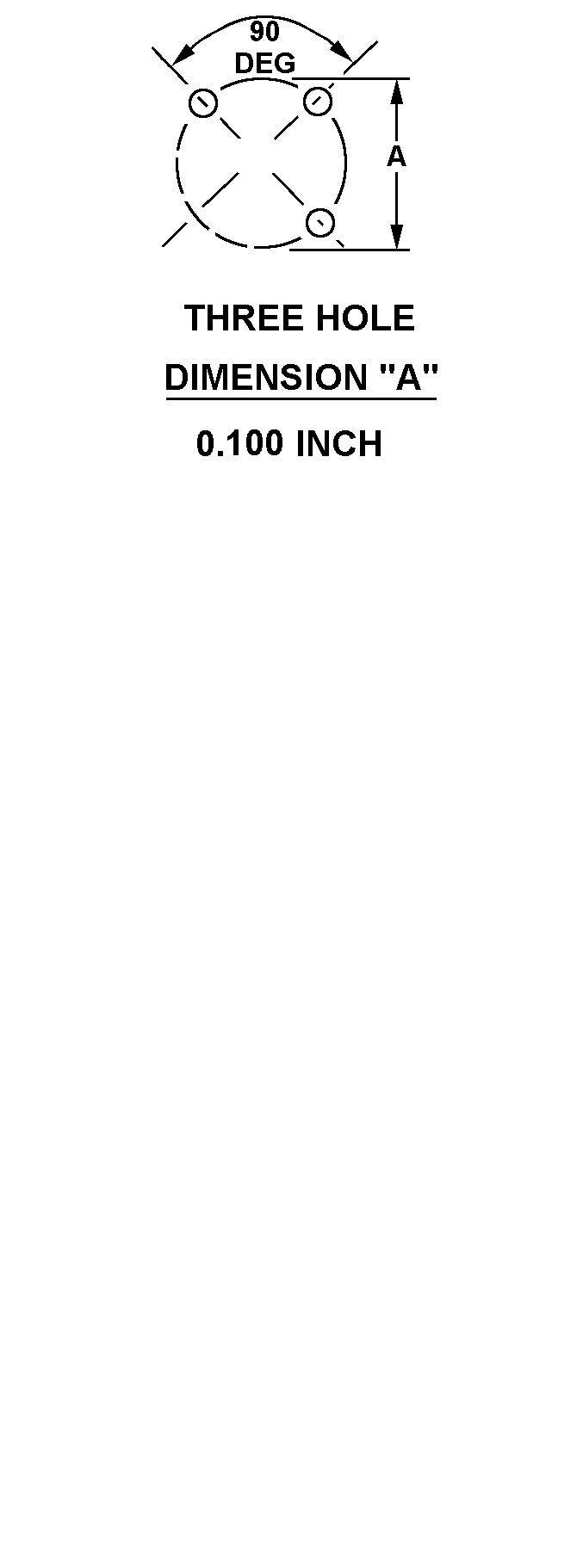

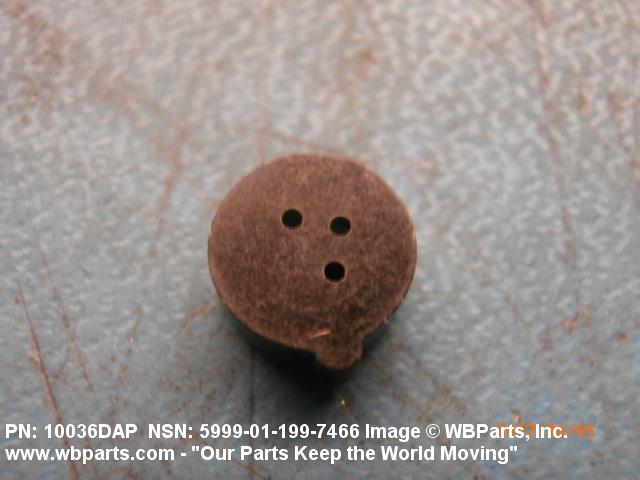

| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | 302B THREE HOLE - 0.100 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 3 |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE SINGLE MOUNTING FACILITY |

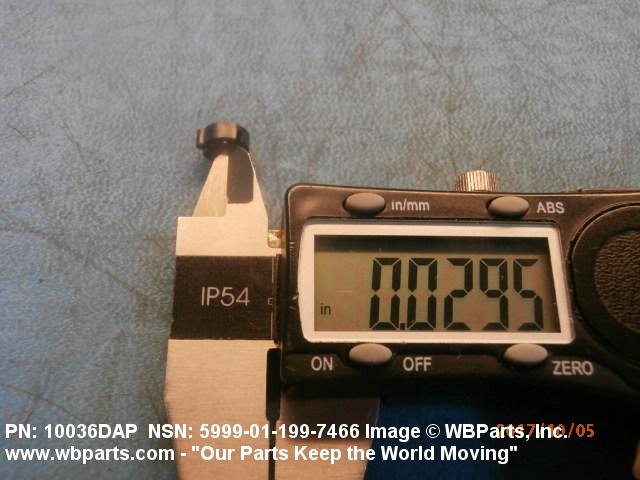

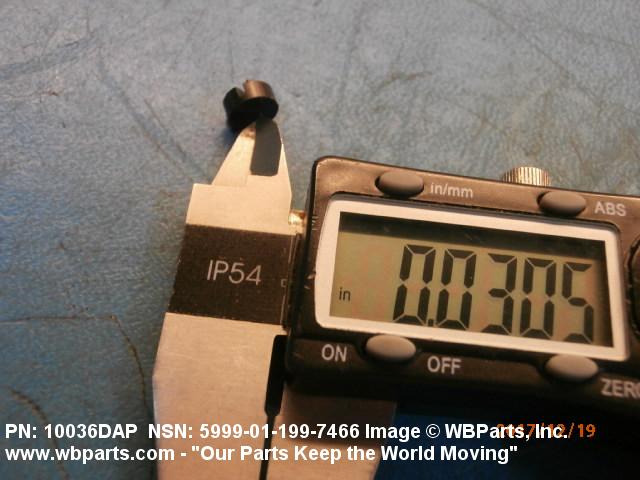

| UNTHREADED MOUNTING HOLE DIAMETER | 0.030 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIFICATION/STANDARD DATA | 03024-VCD0033 MANUFACTURERS SPECIFICATION CONTROL |
| MANUFACTURERS CODE | 03024 |
| MFR SOURCE CONTROLLING REFERENCE | VCD0033 |
