Product Details | DELAY LINE
5999-00-498-4837 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 119-0054-00, 5999-00-498-4837, 00-498-4837, 5999004984837, 119005400, 004984837
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 OCT 1969 | 00-498-4837 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-00-498-4837
Cross Reference | NSN 5999-00-498-4837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 119-0054-00 | 80009 | TEKTRONIX, INC. DBA TEKTRONIX |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5999-00-498-4837
5999-00-498-4839, 5999-00-498-4892, 5999-00-498-5926, 5999-00-498-5927, 5999-00-498-5947
Technical Data | NSN 5999-00-498-4837
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | VARIABLE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| OPERATING TEMP RANGE | NOT RATED |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | NOT RATED |
| OUTPUT IMPEDANCE RATING | NOT RATED |
| ATTENUATION IN DECIBELS | NOT RATED |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | NOT RATED |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |

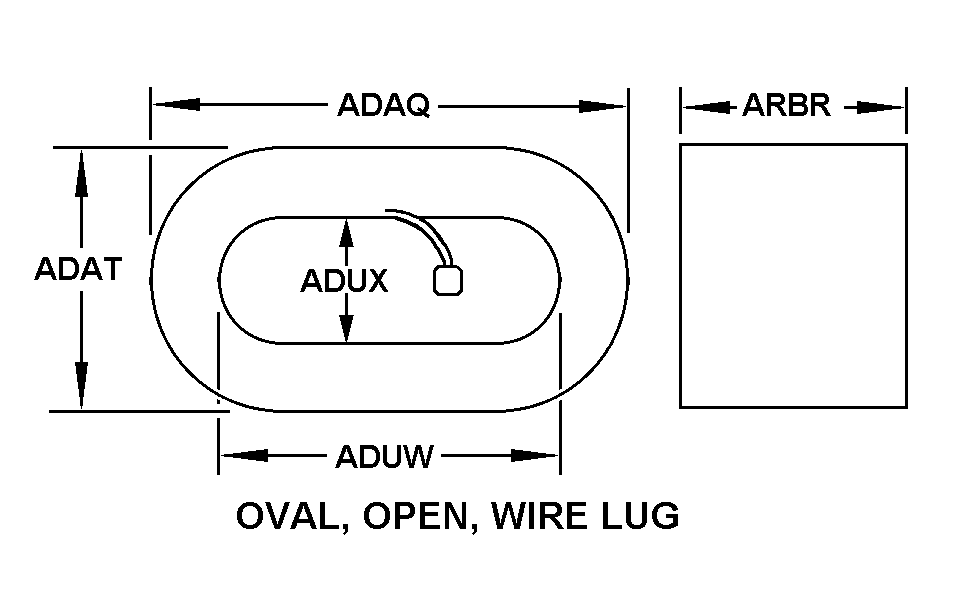

| BODY STYLE | 15 OVAL, OPEN, WIRE LUG |
| BODY LENGTH | 4.844 INCHES MAXIMUM |
| BODY WIDTH | 3.218 INCHES MAXIMUM |
| CENTER HOLE LENGTH | 3.000 INCHES NOMINAL |
| CENTER HOLE WIDTH | 1.375 INCHES NOMINAL |
| BODY DEPTH | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 2 COAXIAL RECEPTACLE |
| MOUNTING FACILITY | CONNECTOR |
| III FSC APPLICATION DATA | 1S1 PLUG-IN UNIT |
