NSN 5999-00-615-9100 6981ED17332, 6981ED173-32, 6981ED9335
Product Details | LIGHT-SWITCH ASSEMBLY
5999-00-615-9100 An electrical device consisting of a Switch (1) and two or more lights, or two or more switches and two or more lights, mounted on a common mounting. The lights are not intended for illumination but are present for the purpose of indication. Each item may be separable and capable of functioning individually, or the items may be fabricated into a common inseparable body, incapable of functioning individually. It may include wall plate or box cover and it may be complete with box. Excludes push, pull, push-pull, and toggle switches with a lamp mounted integrally in the actuator.
Part Alternates: 6981ED17332, 6981ED173-32, 6981ED9335, 6981ED93-35, 5999-00-615-9100, 00-615-9100, 5999006159100, 006159100
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-615-9100 | 17647 ( LIGHT-SWITCH ASSEMBLY ) |
Drawings & Photos | NSN 5999-00-615-9100
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-615-9100
Technical Data | NSN 5999-00-615-9100
| Characteristic | Specifications |
|---|---|

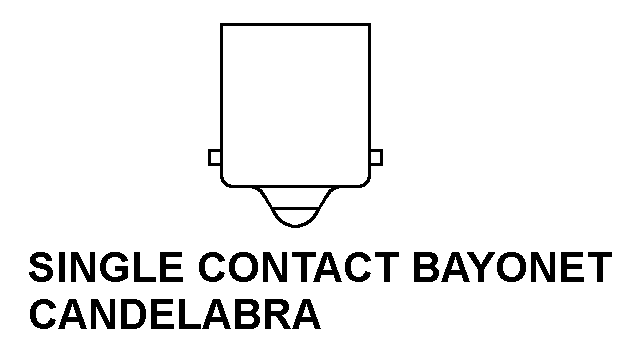

| LAMP BASE STYLE | 7A SINGLE CONTACT BAYONET CANDELABRA |
| LAMP BULB SIZE DESIGNATOR | G-4-1/2 |
| LENS COLOR | WHITE |
| SWITCH TYPE | PUSH |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| FEATURES PROVIDED | TRANSFORMER AND THREADED ENTRANCE |
| SPECIAL FEATURES | INCLOSURE MATL:PLASTIC;ASSY O/A H:3.875 IN. NOM;SWITCH CURRENT IN AMPS:2.0 FOR 1ST & 2ND VARIATION; SWITCH CURRENT TYPE:AC 1ST VARIATION,DC 2ND VARIATION;LAMP:INCLUDED;ASSY O/A W:4.375 IN. NOM.;ASSY O/A L:10.750 IN. NOM.;INCLOSURE TYPE:BOX COVER AND BOX;MNTG CONFIGURATION:MNTS BY (4) 0.406 IN. DIA. MTG HOLES ON 3.500 IN. BY 9.875 IN. MTG CNTRS;VOLTAGE RATING:440.0 NOM. V 1ST VARIATION,250.0 NOM.V 2ND VARIATION;INDIVIDUAL SWITCH QTY:2;LITHT QTY:1;PRIMARY VOLTAGE RATING:440.0 V NOM.;SECONDARY VOLTAGE RATING:4.0 V NOM.;LUMINOUS ACTUATOR:NOT INCLUDED;THREADED INTEREST QTY:2;THREAD LOCATION:INTERNAL;CONTACT ARRANGEMENT:SPST;OPENING THREAD SIZE:1 IN. NPT;SPECIAL MARKINGS:MARKED MOTOR RUNNING,START,STOP |
Restrictions/Controls & Freight Information | NSN 5999-00-615-9100
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-615-9100
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
