Product Details | DELAY LINE
5999-00-615-9546 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 037-400570, 5999-00-615-9546, 00-615-9546, 5999006159546, 037400570, 006159546
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-615-9546 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-00-615-9546
Cross Reference | NSN 5999-00-615-9546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 037-400570 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-615-9546
Technical Data | NSN 5999-00-615-9546
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | ELECTROMECHANICAL |
| SECTION DELAY TIME | 3.200 MICROSECONDS NOMINAL SINGLE SECTION |
| OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 2.700 KILOHMS |
| OUTPUT IMPEDANCE RATING | NOT RATED |
| ATTENUATION IN DECIBELS | NOT RATED |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | NOT RATED |
| FREQUENCY RATING | NOT RATED |
| ADJUSTMENT DEVICE DRIVE TYPE | SHAFT |
| ADJUSTMENT DEVICE QUANTITY | 1 |

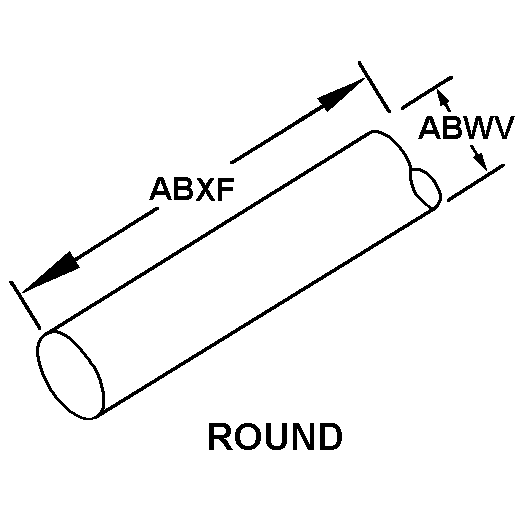

| SHAFT STYLE | 1 ROUND |
