NSN 5999-00-912-6822 SDL163AZ, SDL-163A-Z, 7618371P1
Product Details | DELAY LINE
5999-00-912-6822 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: SDL163AZ, SDL-163A-Z, 7618371P1, 5999-00-912-6822, 00-912-6822, 5999009126822, 009126822
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-912-6822 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-00-912-6822
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-912-6822
Technical Data | NSN 5999-00-912-6822
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | TAPPED |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 6.100 MICROSECONDS NOMINAL SINGLE SECTION |
| OPERATING TEMP RANGE | -55.0 TO 71.0 DEG CELSIUS |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 1000.000 OHMS |
| OUTPUT IMPEDANCE RATING | 1000.000 OHMS |
| ATTENUATION IN DECIBELS | 28.000 |
| VOLTAGE RATING | 1.000 VOLTS NOMINAL |
| PULSE RISE TIME RATING | 2.0 MICROSECONDS |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |

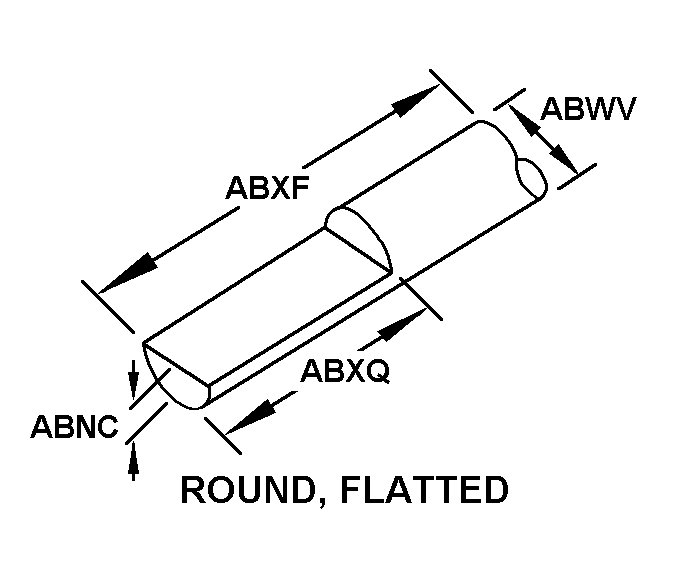

| SHAFT STYLE | 2 ROUND, FLATTED |
| FLAT HEIGHT | 0.250 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| SHAFT DIAMETER | 0.312 INCHES NOMINAL |
| SHAFT LENGTH | 0.281 INCHES MINIMUM AND 0.344 INCHES MAXIMUM |
| FLATTED PORTION LENGTH | 1.005 INCHES MINIMUM AND 1.280 INCHES MAXIMUM |
| BODY STYLE | 11 CYLINDRICAL, END POST CONNECTION |
| OVERALL LENGTH | 1.555 INCHES MINIMUM AND 1.984 INCHES MAXIMUM |
| BODY DIAMETER | 0.600 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| BODY LENGTH | 1.040 INCHES MINIMUM AND 1.280 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 1 TAB SOLDER LUG |
| MOUNTING FACILITY | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 1 |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.312-24 UNF |
| THREAD CLASS | 2A |
| THREAD PITCH DIAMETERS | 0.2443 TO 0.3125 INCHES |
