Product Details | DELAY LINE
5999-01-038-1236 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: SC1197001, SC1197-001, DL1555, DL-1555, 5999-01-038-1236, 01-038-1236, 5999010381236, 010381236
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 MAR 1977 | 01-038-1236 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-01-038-1236
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-038-1236
Technical Data | NSN 5999-01-038-1236
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | LUMPED CONSTANT |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 70.000 NANOSECONDS NOMINAL SINGLE SECTION |
| OPERATING TEMP RANGE | -0.0 TO 70.0 DEG CELSIUS |
| DELAY TIME VARIATION PER DEG CELSIUS | 5.000 NANOSECONDS |
| INPUT IMPEDANCE RATING | 210.000 OHMS |
| OUTPUT IMPEDANCE RATING | 210.000 OHMS |
| ATTENUATION IN DECIBELS | 5.000 |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | 18.0 NANOSECONDS |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |
| BODY STYLE | 1 RECTANGULAR |
| BODY LENGTH | 1.260 INCHES MAXIMUM |
| BODY WIDTH | 0.510 INCHES MAXIMUM |
| BODY DEPTH | 0.350 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
| MOUNTING FACILITY | PIN |
| MOUNTING FACILITY QUANTITY | 14 |
| HOLE DIAMETER | 0.020 INCHES NOMINAL |

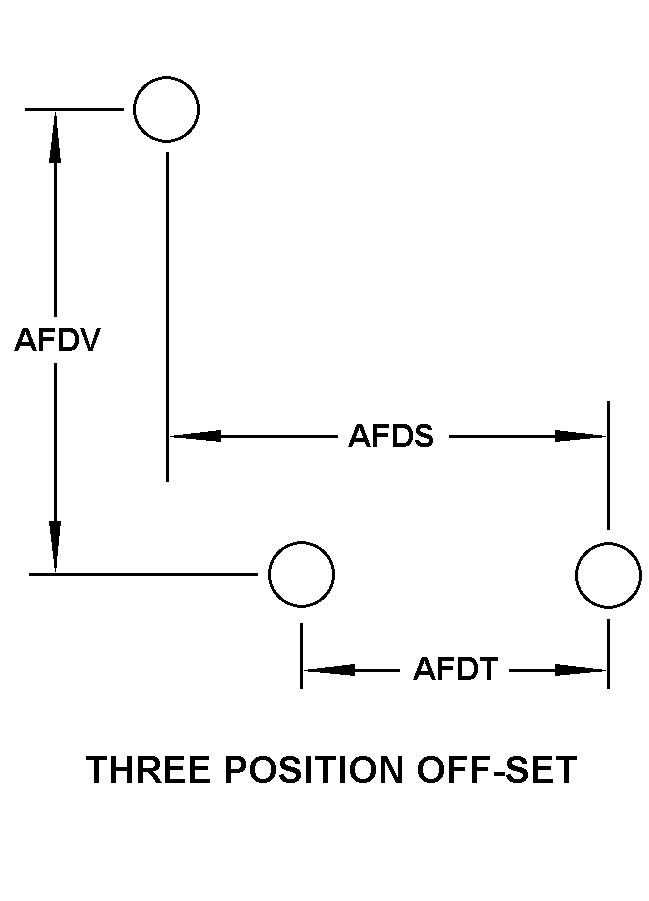

| MOUNTING PROVISION ARRANGEMENT STYLE | 7 THREE POSITION OFF-SET |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.610 INCHES MAXIMUM |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.600 INCHES MAXIMUM |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.300 INCHES MAXIMUM |
