NSN 6105-00-630-5828 XW20058M1, 6958901, 695890-1
Product Details | DIRECT CURRENT MOTOR
6105-00-630-5828 A motor which is designed for operation from a direct current source. Excludes MOTOR, ENGINE STARTER, ELECTRICAL. See also MOTOR, CONTROL.
Part Alternates: XW20058M1, 6958901, 695890-1, 2311M281, 2311M-28-1, 6105-00-630-5828, 00-630-5828, 6105006305828, 006305828
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-630-5828 | 16350 ( MOTOR, DIRECT CURRENT ) |

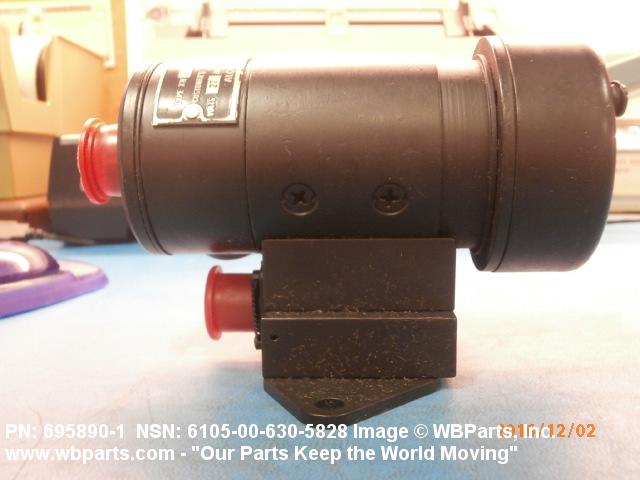

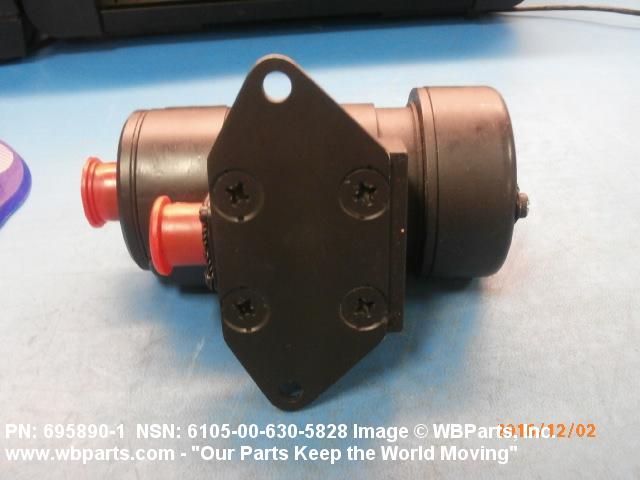

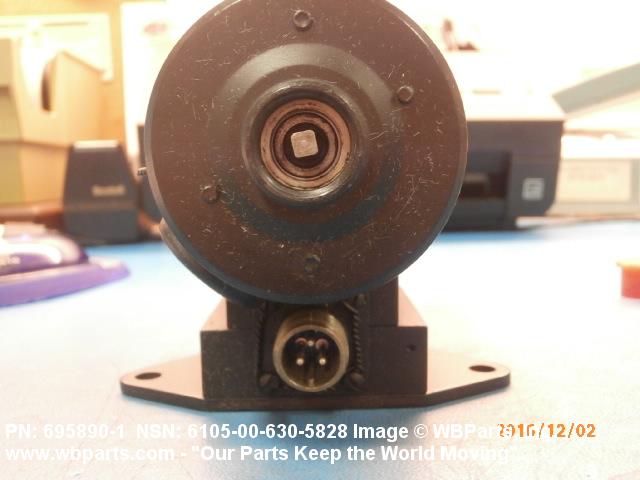

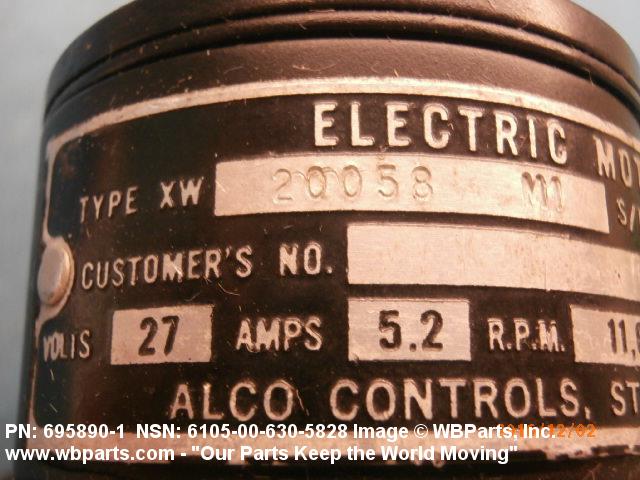

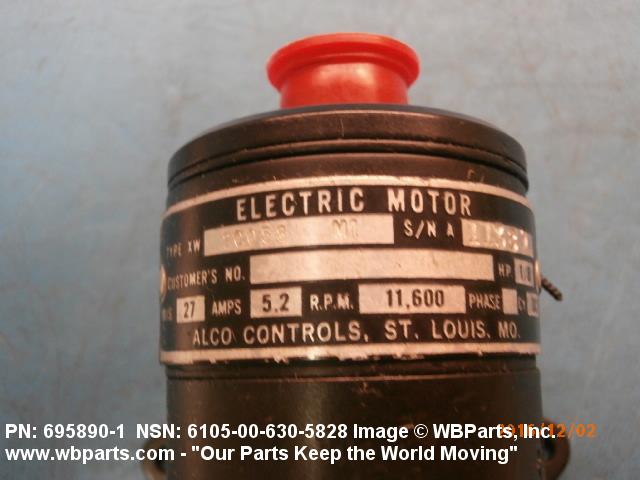

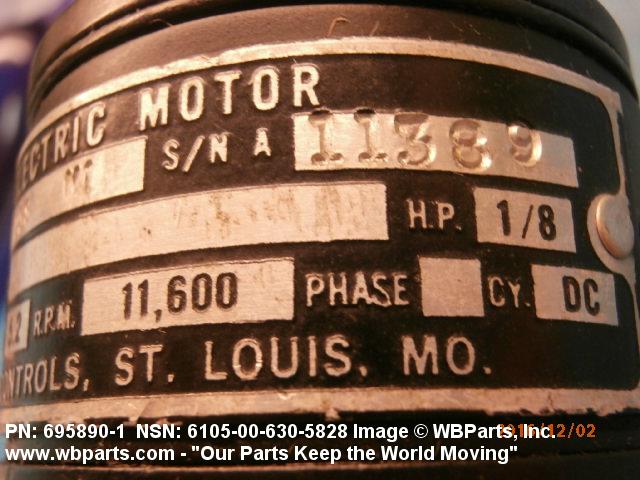

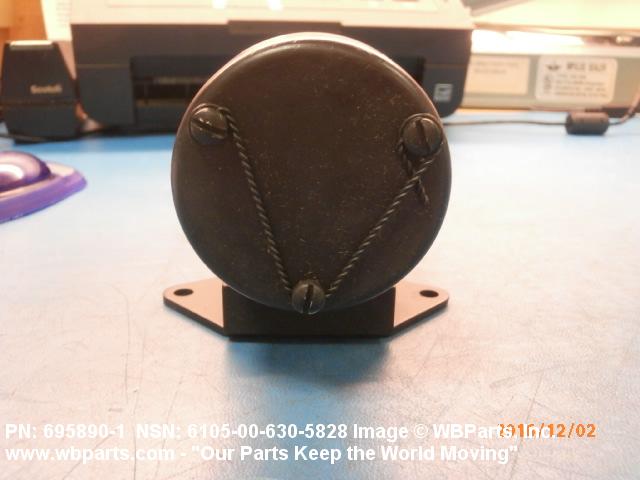

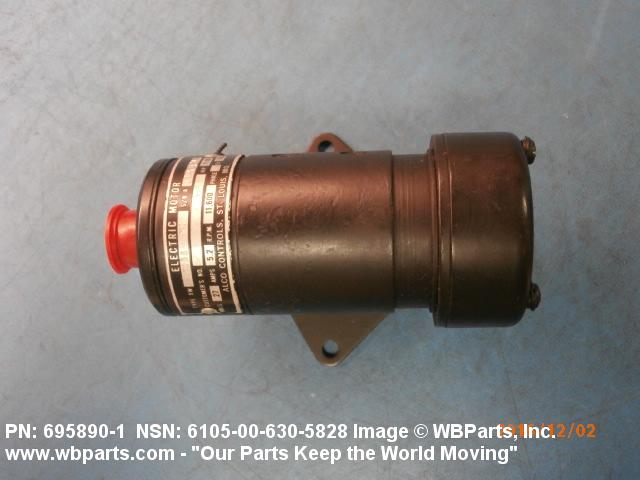

Drawings & Photos | NSN 6105-00-630-5828
Demand History | NSN 6105-00-630-5828
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-00-630-5828 | 2016-10-301 | 1 | Philippines |
| XW20058M1 | 2011-06-180 | 2 | US |
| XW20058M1 | 2006-06-181 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-00-630-5828
Related Products | NSN 6105-00-630-5828
Technical Data | NSN 6105-00-630-5828
| Characteristic | Specifications |
|---|---|

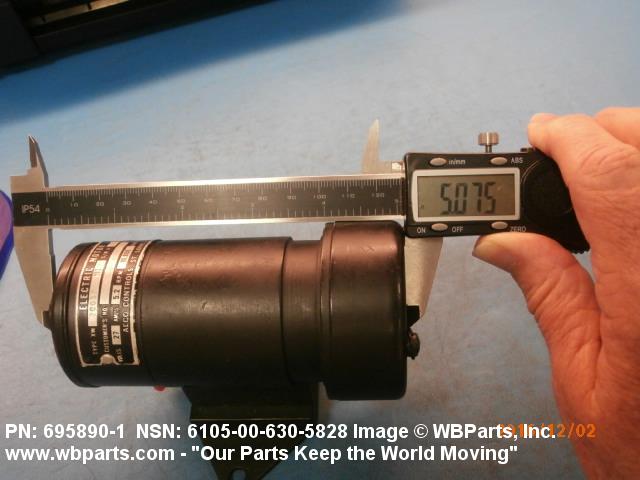

| OVERALL LENGTH | 5.500 INCHES |

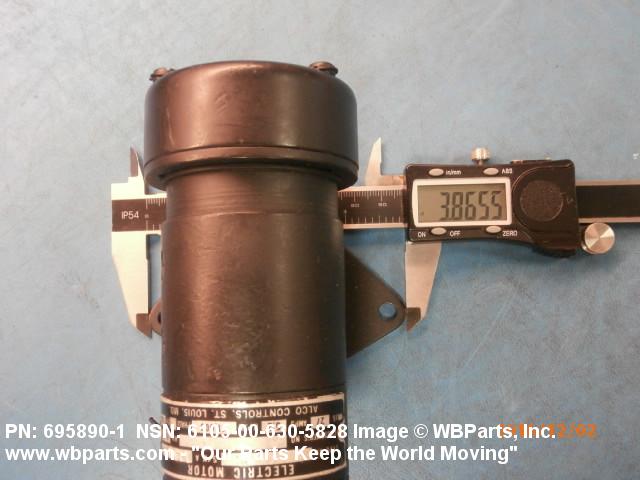

| OVERALL WIDTH | 3.890 INCHES |

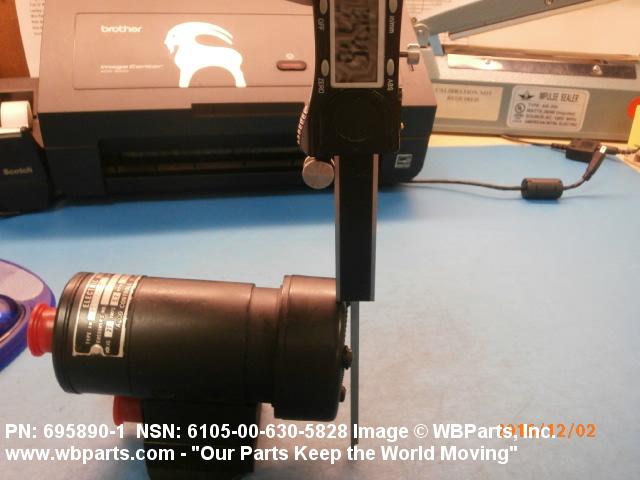

| OVERALL HEIGHT | 3.540 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.062 INCHES SINGLE END |
| MOUNTING METHOD | FIXED BASE |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| CURRENT RATING IN AMPS | 5.200 SINGLE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 27.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 0.1250 HORSEPOWER OUTPUT |
| WINDING TYPE | SERIES WOUND |
| DUTY CYCLE | CONTINUOUS |
| COOLING METHOD | AMBIENT AIR |
| SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| ROTOR SPEED RATING IN RPM | 11600.0 SINGLE NO LOAD |

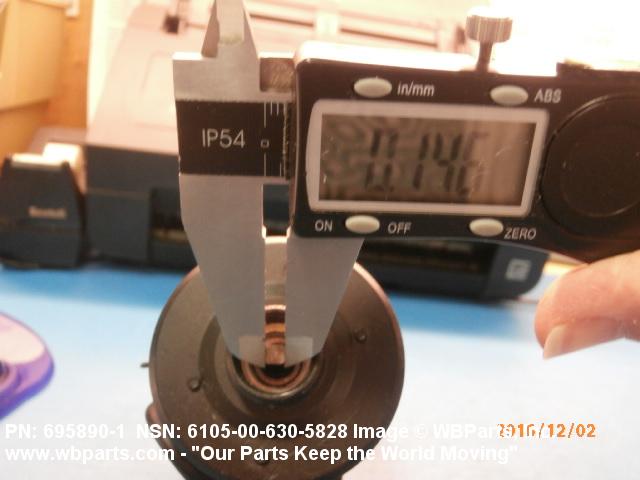

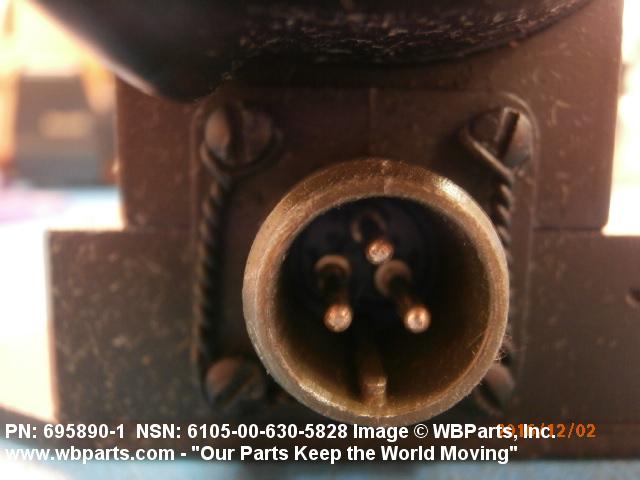

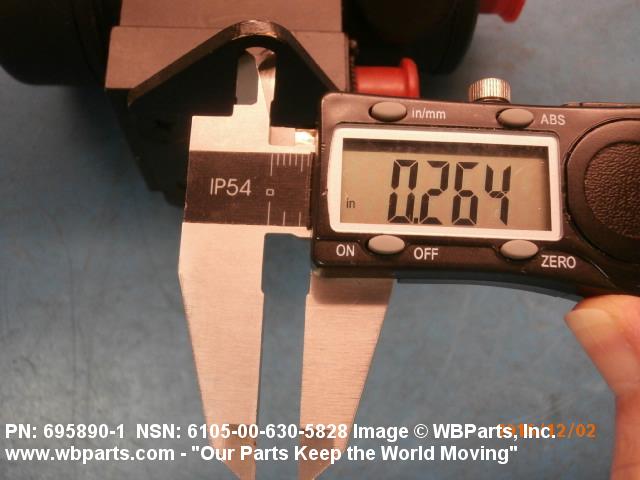

| SPECIAL FEATURES | MOUNTING FACILTIY: THROUGH-HOLE, 2 X 0.265; ROTOR SPEED RATING: HIGH SPEED = 11,800 RPM; SHAFT CHARACTERISTICS: SQUARE (0.150 +.000/-003 X 0.13 LONG), SINGLE ENDED; TERMINAL TYPE AND QUANTITY: RECEPTACLE, MS3102A10SL-3P |
| CRITICALITY CODE JUSTIFICATION | SUPP |
| III SUPPLEMENTARY FEATURES | AVIATION CRITICAL SAFTY/FLIGHT SAFTY CRITICAL AIRCRAFT PART |
Restrictions/Controls & Freight Information | NSN 6105-00-630-5828
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-630-5828
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Issue Repair, or Requisition | R9 | Integrated Manager reparable item. Includes Defense Logistics Agency-managed items which are reportable in non-RFI condition to appropriate Defense Supply Center per NAVSUP instructions for return of excess material to DLA. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
