NSN 6105-00-670-7831 M10H7GC2BC, M10-H7G-C2-BC, AFH-10-LLB-53/C416

Product Details | CONTROL MOTOR

6105-00-670-7831 A motor which is designed to be operated from two independent voltage sources, in such a way that variations in one voltage source will determine the direction and speed of the motor. In the alternating current type the voltages are usually applied to a split-phase stator, whereas in the direct current type, one voltage is applied to the stator and the other to the armature. Low inertia and rapid reversibility are inherent characteristics of this type of motor. See also SERVOMOTOR, AUTOMATIC PILOT.

Part Alternates: M10H7GC2BC, M10-H7G-C2-BC, AFH-10-LLB-53/C416, AFH10LLB53C416, U213613, U-213613, 106585, 10-65-85, 10M150AJ7A, 10M-150-AJ-7A, 19808A3, 6105-00-670-7831, 00-670-7831, 6105006707831, 006707831

Electric Wire, and Power and Distribution Equipment | Motors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JAN 1963	00-670-7831	19258 ( MOTOR, CONTROL )

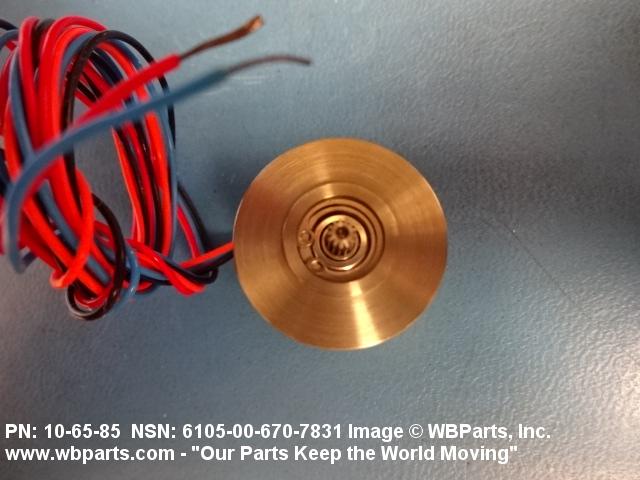

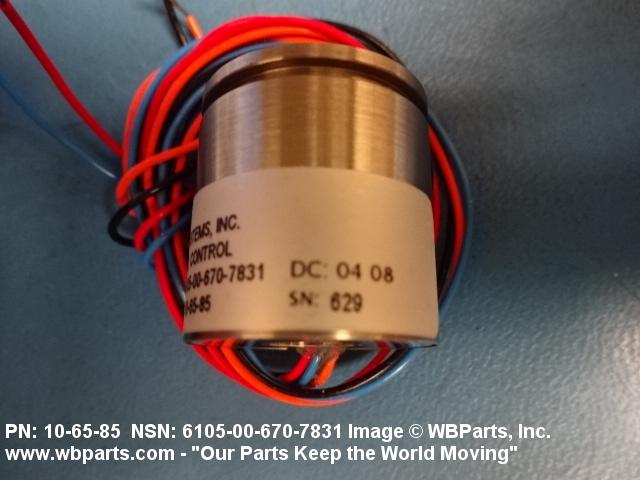

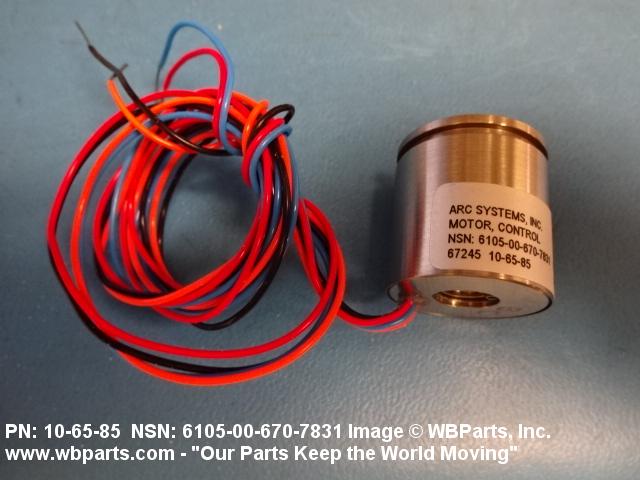

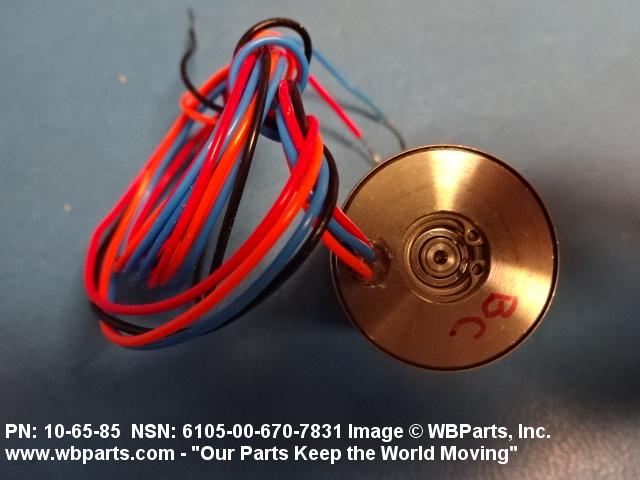

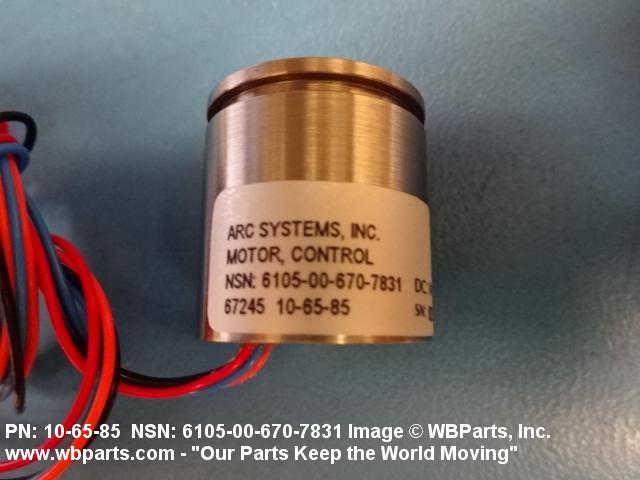

Drawings & Photos | NSN 6105-00-670-7831

Part Number	Request Date	QTY	Origin
10M-150-AJ-7A	2025-10-282	10	DIBBS
M10-H7G-C2-BC	2025-10-282	10	DIBBS
U-213613	2025-10-282	10	DIBBS
10M-150-AJ-7A	2024-05-123	13	DIBBS
M10-H7G-C2-BC	2024-05-123	13	DIBBS
U-213613	2024-05-123	13	DIBBS
10M-150-AJ-7A	2024-02-39	22	DIBBS
M10-H7G-C2-BC	2024-02-39	22	DIBBS
U-213613	2024-02-39	22	DIBBS
10M-150-AJ-7A	2023-08-222	18	DIBBS
M10-H7G-C2-BC	2023-08-222	18	DIBBS
U-213613	2023-08-222	18	DIBBS
10M-150-AJ-7A	2023-05-138	5	DIBBS
M10-H7G-C2-BC	2023-05-138	5	DIBBS
U-213613	2023-05-138	5	DIBBS
6105-00-670-7831	2019-12-352	22	us
10-65-85	2019-04-119	22	DIBBS
10M-150-AJ-7A	2019-04-119	22	DIBBS
M10-H7G-C2-BC	2019-04-119	22	DIBBS
U-213613	2019-04-119	22	DIBBS
10-65-85	2019-04-108	22	DIBBS
10M-150-AJ-7A	2019-04-108	22	DIBBS
M10-H7G-C2-BC	2019-04-108	22	DIBBS
U-213613	2019-04-108	22	DIBBS
6105-00-670-7831	2018-11-333	6	DIBBS
6105-00-670-7831	2017-08-234	4	DIBBS
6105-00-670-7831	2017-08-222	4	DIBBS
6105-00-670-7831	2017-08-215	6	DIBBS

Cross Reference | NSN 6105-00-670-7831

Part Number	Cage Code	Manufacturer
10-65-85	67245	ARC SYSTEMS, INC.
10M-150-AJ-7A	06989	API HAROWE INC DBA API MOTION DIV API
19808A3	89305	SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED
AFH-10-LLB-53/C416	99932	MOOG INC. DBA MOOG COMPONENTS GROUP
M10-H7G-C2-BC	34880	DIGALOG CORP
U-213613	82686	TRANSICOIL LLC DBA ADS/TRANSICOIL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6105-00-670-7831

Compare

Related Products | NSN 6105-00-670-7831

6105-00-670-8275, 6105-00-671-0357, 6105-00-671-0358, 6105-00-671-0368, 6105-00-671-1785

Technical Data | NSN 6105-00-670-7831

Characteristic	Specifications
OVERALL LENGTH	1.189 INCHES
OVERALL WIDTH	0.937 INCHES
OVERALL HEIGHT	0.937 INCHES
LENGTH OF SHAFT FROM HOUSING	0.125 INCHES SINGLE END
MOUNTING METHOD	CLAMP RING
MOUNTING FACILITY TYPE AND QUANTITY	1 CLAMP COLLAR
INCLOSURE FEATURE	TOTALLY INCLOSED
INCLOSURE SPECIFICATION	COMMERCIAL
CURRENT TYPE	AC INPUT
CURRENT RATING IN AMPS	0.037 SINGLE INPUT
CURRENT RATING METHOD	NO LOAD
FREQUENCY IN HERTZ	400.0 INPUT
PHASE	TWO INPUT
CONNECTION TYPE AND VOLTAGE RATING IN VOLTS	54.0 LINE TO NEUTRAL SINGLE INPUT
TORQUE RATING AND TYPE	0.13 INCH-OUNCES STALLED
TEMP RATING	35.0 OPERATING DEG CELSIUS
COOLING METHOD	NONVENTILATED
TERMINAL TYPE AND QUANTITY	4 WIRE LEAD
CONTROL FIELD VOLTAGE TYPE AND RATING IN VOLTS	54.0 AC
CONTROL FIELD CURRENT RATING IN AMPS	0.037
CONTROL FIELD IMPEDANCE RATING IN OHMS	1470.0
CONTROL FIELD WINDING TYPE	SINGLE WINDING W/CENTER TAP
ROTOR SPEED RATING IN RPM	10000.0 SINGLE NO LOAD
SHAFT END CHARACTERISTIC	A17 SINGLE STYLE SINGLE END
SHAFT DIAMETER	0.1247 INCHES NOMINAL SINGLE END
FULL TOOTH LENGTH	0.1250 INCHES NOMINAL SINGLE END
TEETH QUANTITY	13 SINGLE END
FEATURES PROVIDED	HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION
MANUFACTURERS CODE	89305
MFR SOURCE CONTROLLING REFERENCE	19808A3

Restrictions/Controls & Freight Information | NSN 6105-00-670-7831

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062120	GENERATORS/MOTORS/PARTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6105-00-670-7831

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	P	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
