NSN 6105-00-871-6960 U2047368113, U204736-8-11-3, 00-871-6960
Product Details | CONTROL MOTOR
6105-00-871-6960 A motor which is designed to be operated from two independent voltage sources, in such a way that variations in one voltage source will determine the direction and speed of the motor. In the alternating current type the voltages are usually applied to a split-phase stator, whereas in the direct current type, one voltage is applied to the stator and the other to the armature. Low inertia and rapid reversibility are inherent characteristics of this type of motor. See also SERVOMOTOR, AUTOMATIC PILOT.
Part Alternates: U2047368113, U204736-8-11-3, 6105-00-871-6960, 00-871-6960, 6105008716960, 008716960
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 NOV 1967 | 00-871-6960 | 19258 ( MOTOR, CONTROL ) |

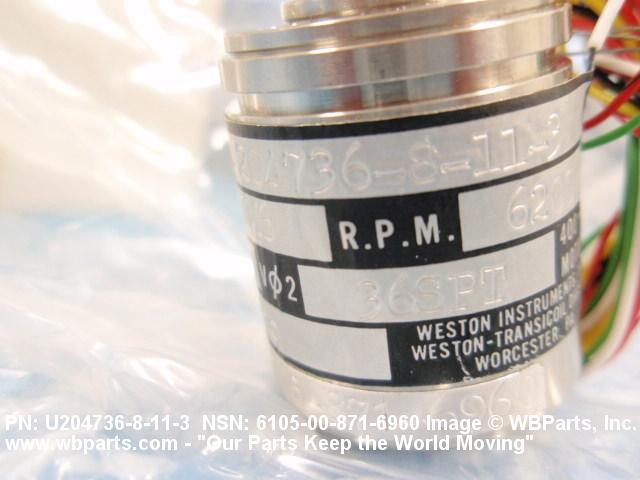

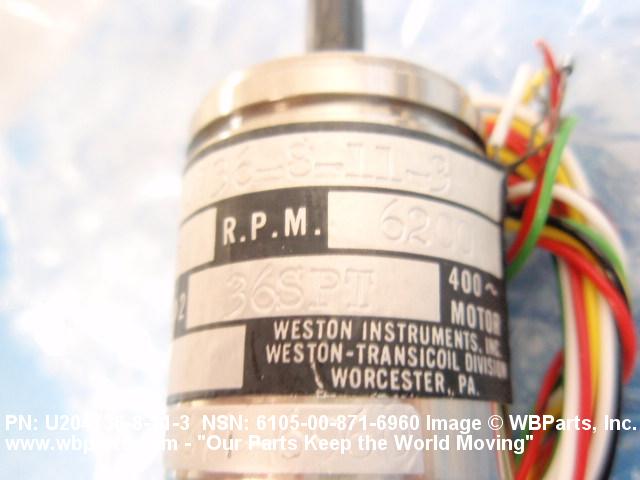

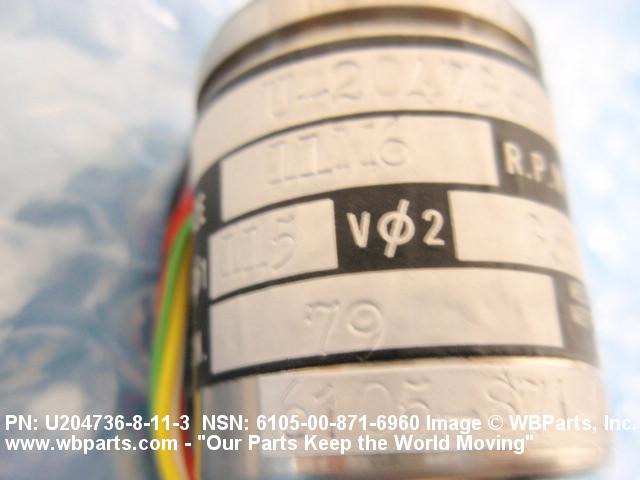

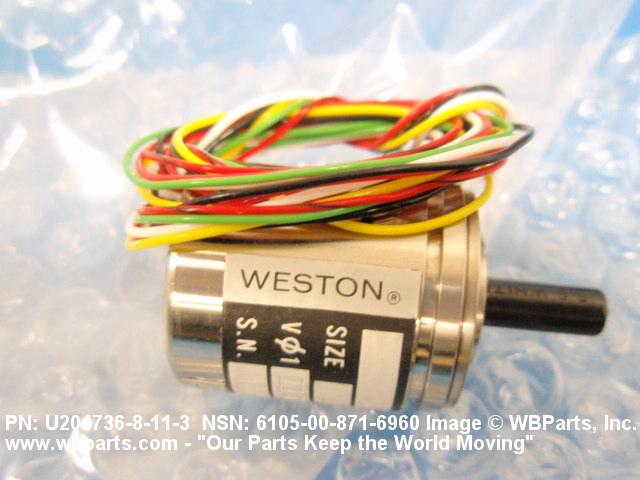

Drawings & Photos | NSN 6105-00-871-6960
Demand History | NSN 6105-00-871-6960
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-00-871-6960 | 2014-09-261 | 2 | DIBBS |
| U2047368113 | 2010-01-04 | 2 | United States |
| U2047368113 | 2009-10-299 | 2 | United States |
Cross Reference | NSN 6105-00-871-6960
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U204736-8-11-3 | 82686 | TRANSICOIL LLC DBA ADS/TRANSICOIL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6105-00-871-6960
Technical Data | NSN 6105-00-871-6960
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 2.098 INCHES |
| OVERALL WIDTH | 1.260 INCHES |
| OVERALL HEIGHT | 1.260 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.348 INCHES SINGLE END |
| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 0.676 INCHES |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | AC INPUT |
| FREQUENCY IN HERTZ | 400.0 INPUT |
| PHASE | TWO INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO NEUTRAL SINGLE INPUT |
| TORQUE RATING AND TYPE | 0.6 INCH-OUNCES STALLED |
| COOLING METHOD | NONVENTILATED |
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| CONTROL FIELD VOLTAGE TYPE AND RATING IN VOLTS | 36.0 AC |
| CONTROL FIELD CURRENT RATING IN AMPS | 0.163 |
| CONTROL FIELD IMPEDANCE RATING IN OHMS | 2250.0 |
| CONTROL FIELD WINDING TYPE | TWO WINDINGS, SERIES CONNECTED |
| ROTOR SPEED RATING IN RPM | 6500.0 SINGLE NO LOAD |
| SHAFT END CHARACTERISTIC | A17 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.235 INCHES MINIMUM AND 0.238 INCHES MAXIMUM SINGLE END |
| FULL TOOTH LENGTH | 0.250 INCHES MINIMUM SINGLE END |
| TEETH QUANTITY | 9 SINGLE END |
| FEATURES PROVIDED | HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION |
| MANUFACTURERS CODE | 82686 |
| DESIGN CONTROL REFERENCE | U204736-8-11-3 |
Restrictions/Controls & Freight Information | NSN 6105-00-871-6960
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-871-6960
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
