NSN 6105-01-148-8902 G297CN711, G297-CN711, 905D490
Product Details | DIRECT CURRENT MOTOR
6105-01-148-8902 A motor which is designed for operation from a direct current source. Excludes MOTOR, ENGINE STARTER, ELECTRICAL. See also MOTOR, CONTROL.
Part Alternates: G297CN711, G297-CN711, 905D490, 6105-01-148-8902, 01-148-8902, 6105011488902, 011488902
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 12 MAR 1983 | 01-148-8902 | 16350 ( MOTOR, DIRECT CURRENT ) |

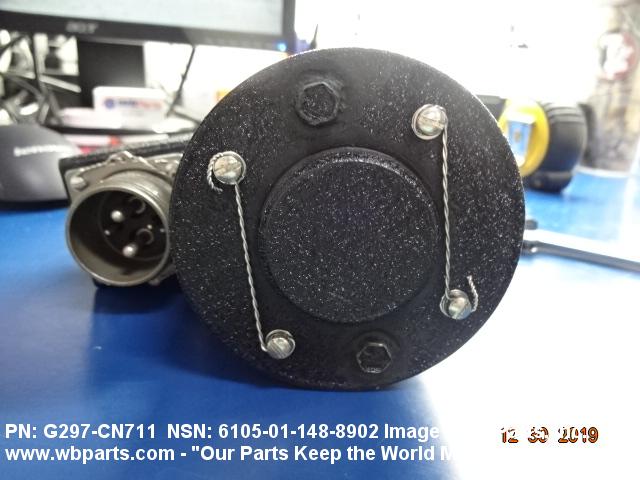

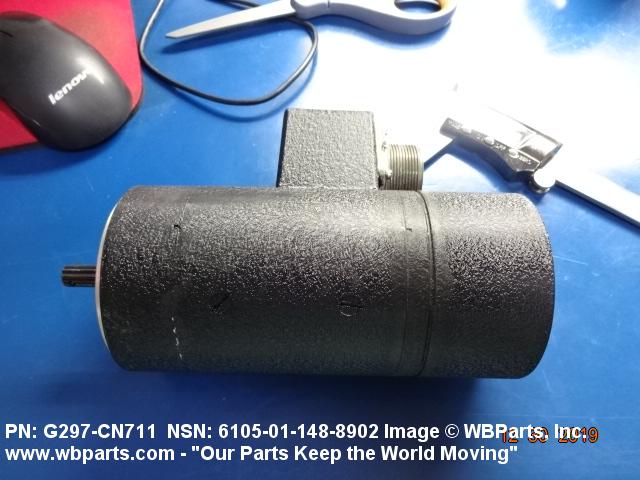

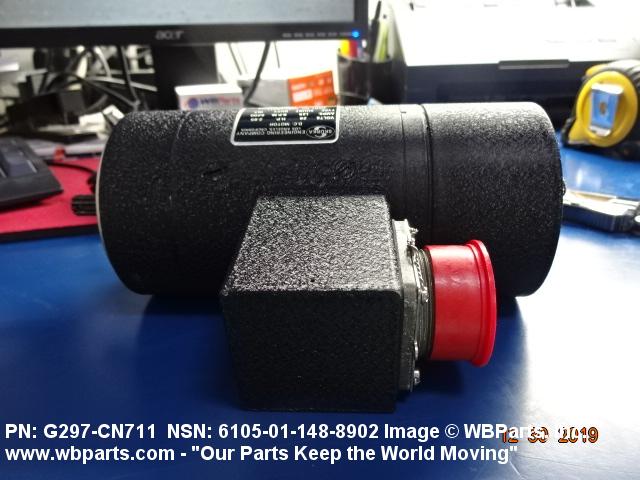

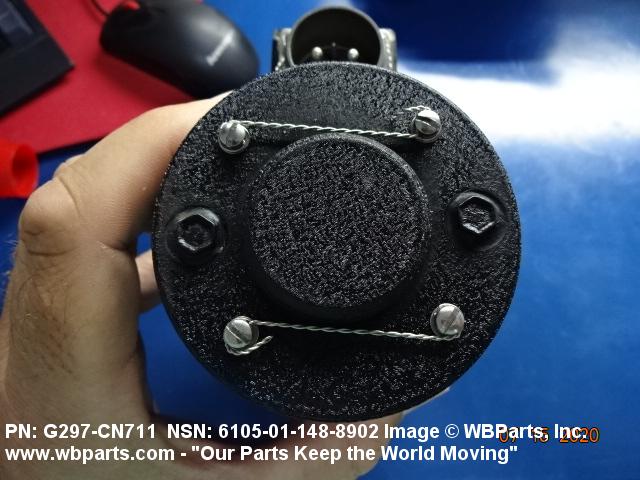

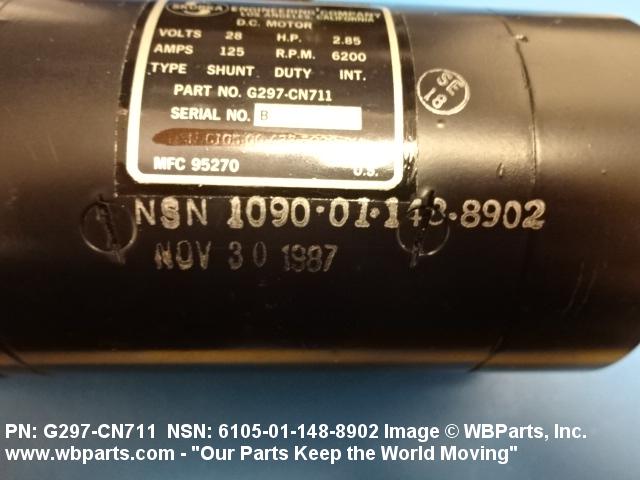

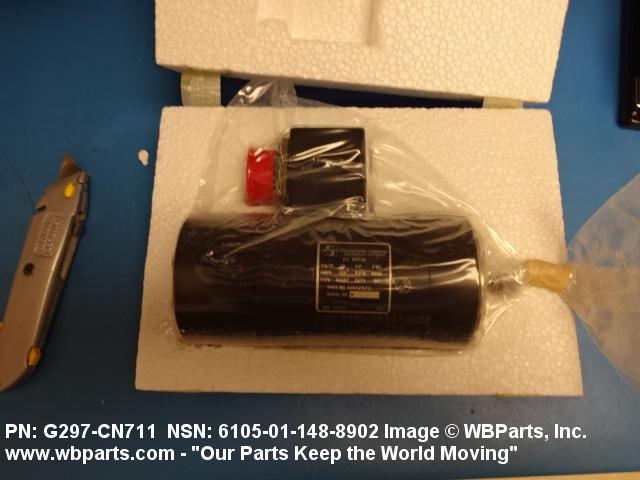

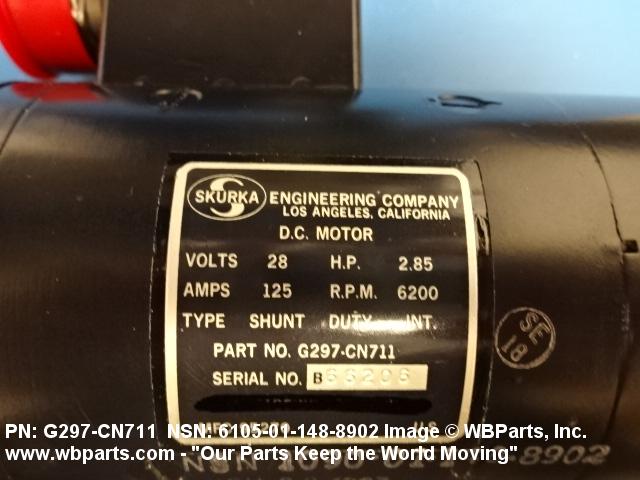

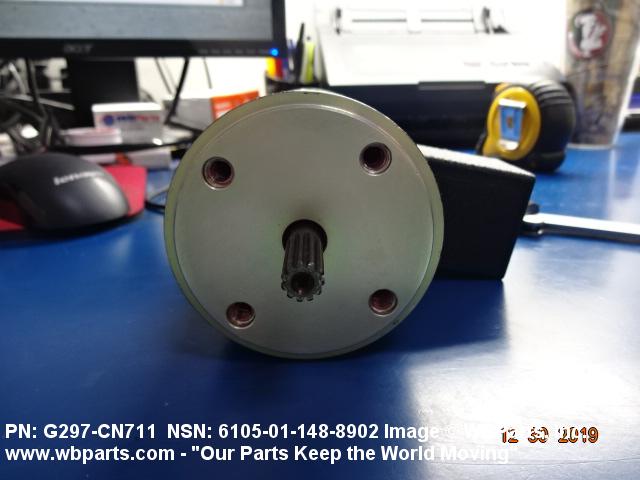

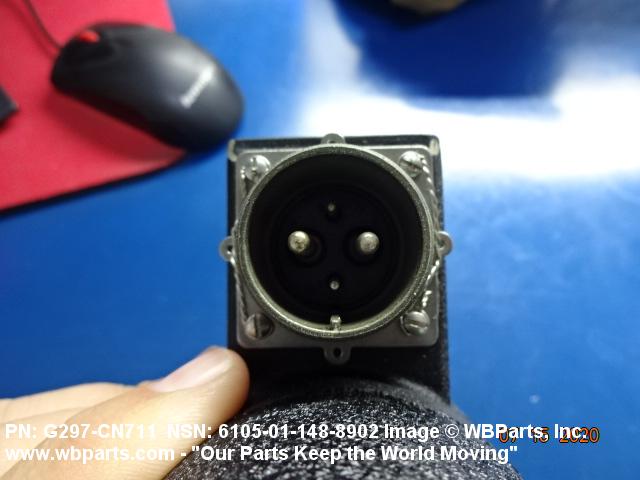

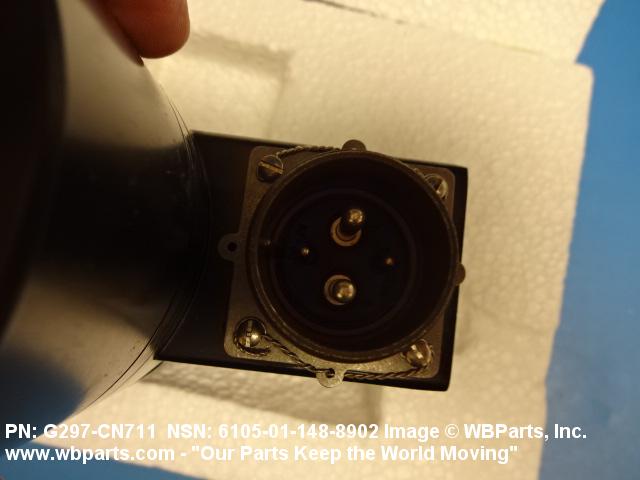

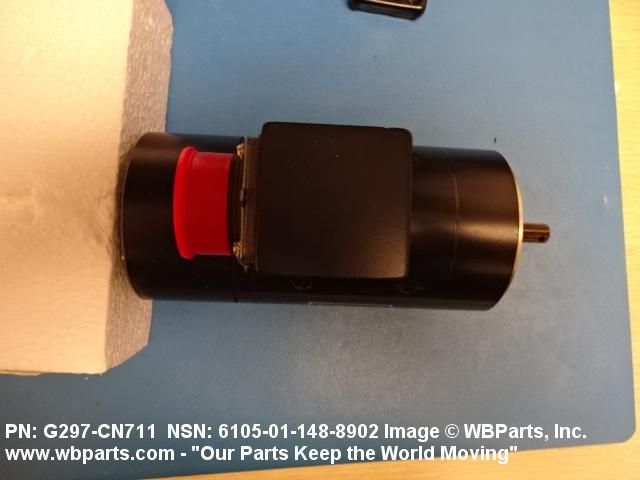

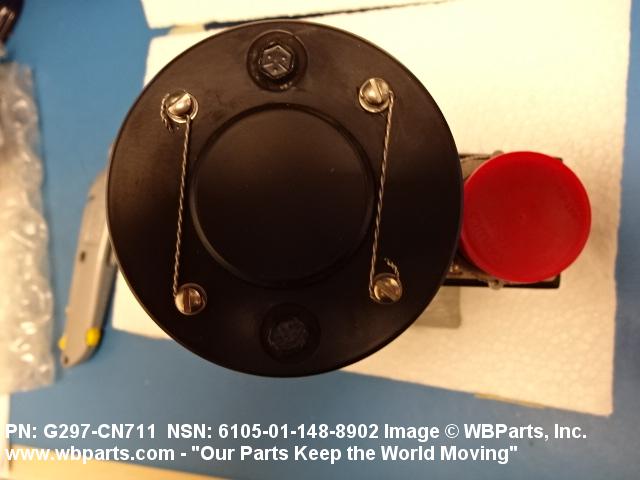

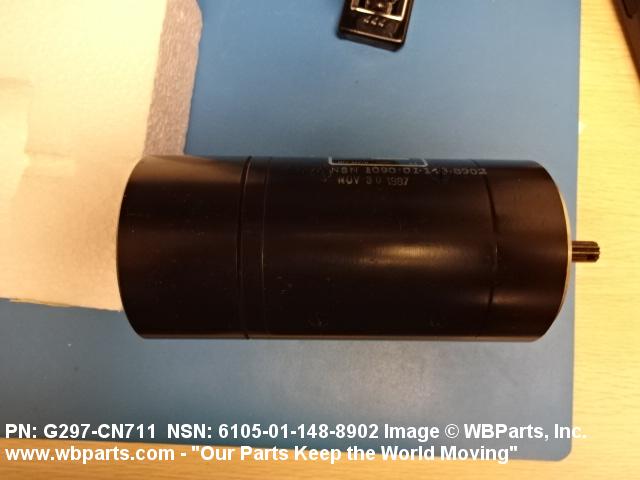

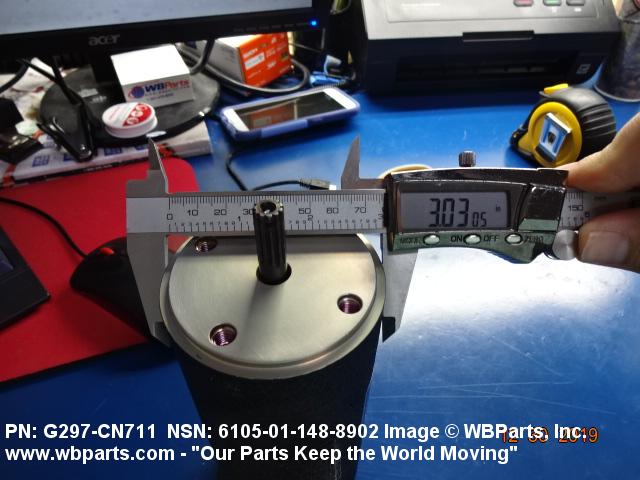

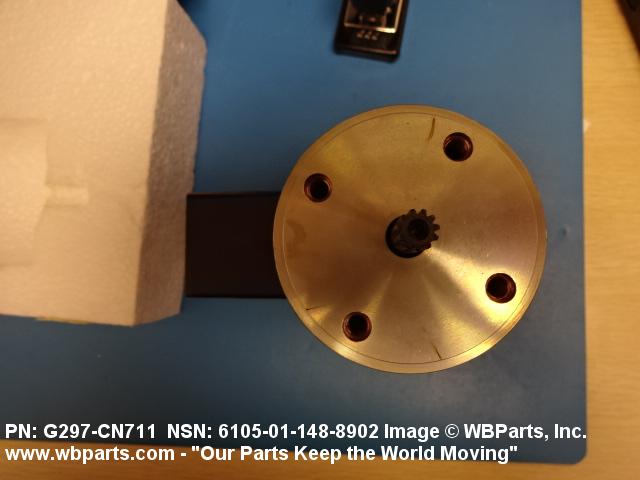

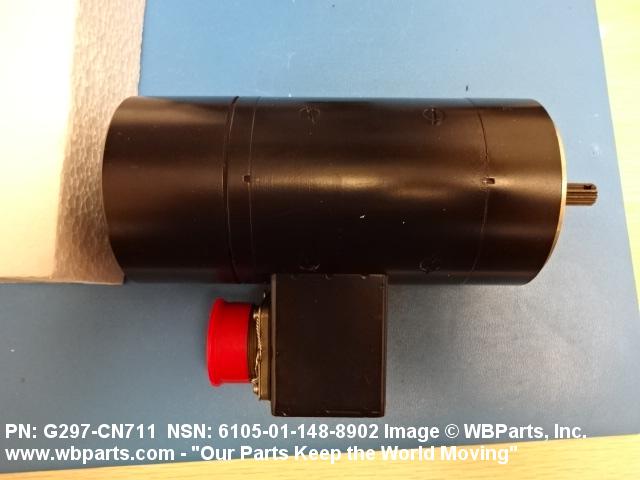

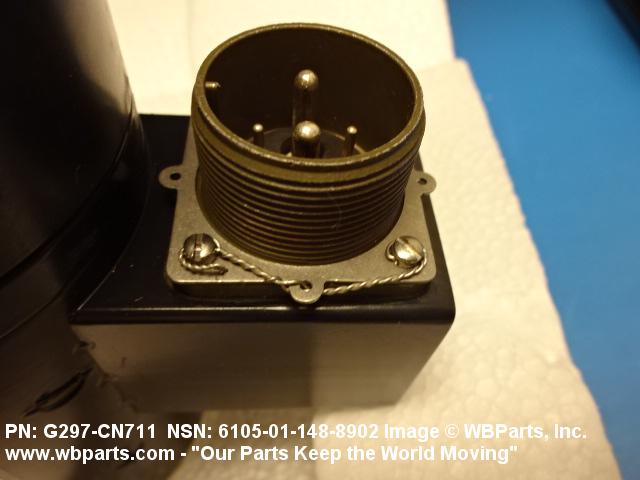

Drawings & Photos | NSN 6105-01-148-8902
Demand History | NSN 6105-01-148-8902
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-01-148-8902 | 2022-07-189 | 1 | US |
| 6105-01-148-8902 | 2021-07-187 | 1 | US |
| G297CN711 | 2021-06-179 | 20 | United States |
| 6105-01-148-8902 | 2020-06-174 | 10 | United States |
| G297CN711 | 2020-01-07 | 10 | United States |
| G297CN711 | 2019-12-344 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-01-148-8902
Related Products | NSN 6105-01-148-8902
Technical Data | NSN 6105-01-148-8902
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 7.760 INCHES |
| OVERALL WIDTH | 5.140 INCHES |
| OVERALL HEIGHT | 3.050 INCHES |

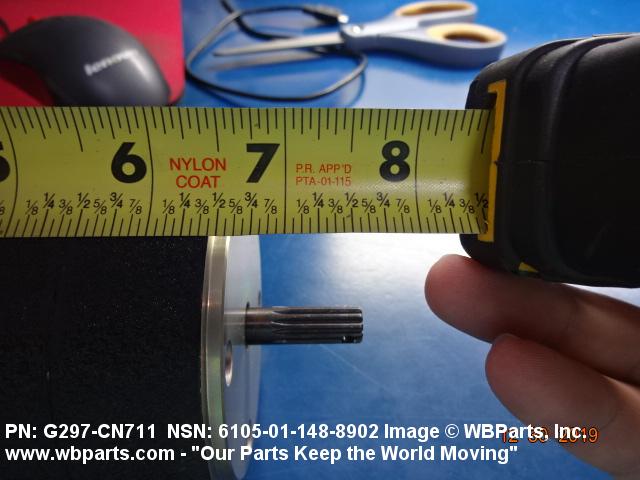

| LENGTH OF SHAFT FROM HOUSING | 1.140 INCHES SINGLE END |
| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 2.250 INCHES |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| CURRENT RATING IN AMPS | 500.000 SINGLE INPUT |
| CURRENT RATING METHOD | NO LOAD |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 28.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 2.850 HORSEPOWER OUTPUT |
| WINDING TYPE | SHUNT WOUND |
| DUTY CYCLE | INTERMITTENT |
| TIME INTERVAL | 15.0 SECONDS MAXIMUM ON AND 45.0 SECONDS MINIMUM OFF |
| TEMP RATING | -65.0 AMBIENT DEG FAHRENHEIT AND 165.0 AMBIENT DEG FAHRENHEIT |
| COOLING METHOD | AMBIENT AIR |

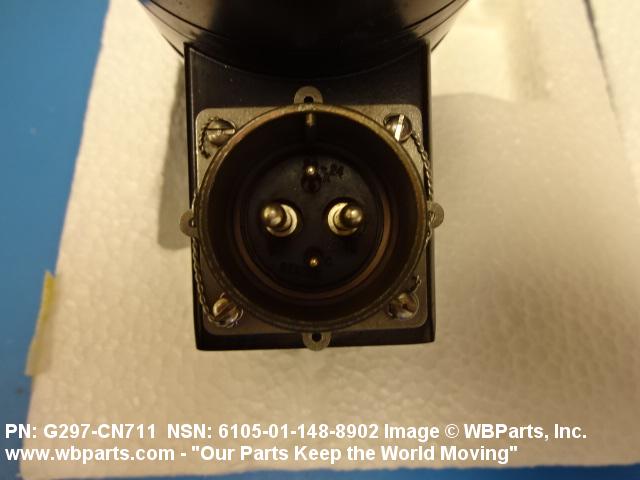

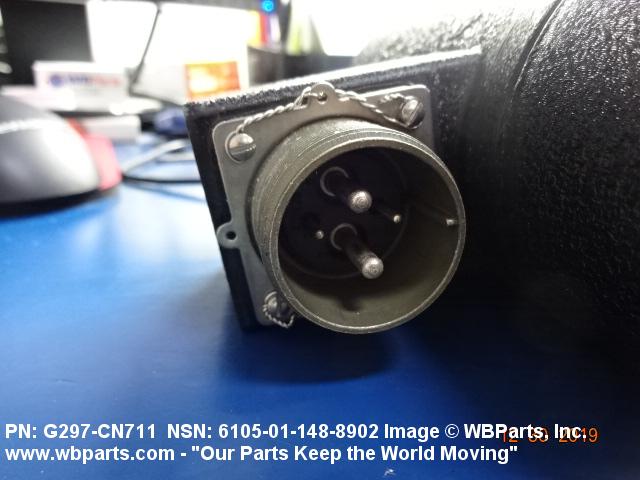

| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, PLUG |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE SINGLE END |
| ROTOR SPEED RATING IN RPM | 6200.0 SINGLE FULL LOAD |
| SHAFT END CHARACTERISTIC | A14 SINGLE STYLE SINGLE END |
| SPLINE MINOR DIAMETER | 0.2733 INCHES MINIMUM AND 0.2813 INCHES MAXIMUM SINGLE END |
| SHAFT DIAMETER | 0.3720 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM SINGLE END |
| SPLINE LENGTH | 0.790 INCHES NOMINAL SINGLE END |
| SPLINE QUANTITY | 11 SINGLE END |
| SPECIAL FEATURES | ARMT SUBSYSTEM XM97E2 |
| MANUFACTURERS CODE | 19200 |
| MFR SOURCE CONTROLLING REFERENCE | 905D490 |
Restrictions/Controls & Freight Information | NSN 6105-01-148-8902
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-148-8902
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | H | Individual and Crew-Served Weapons |
| Weapons Systems/End Item or Homogeneous Group | H6 | Armament Subsystem, 20mm and Enhanced Fire Control System, XM97E2 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
