NSN 6105-01-174-1662 0448321, 044832-1, 15M2R662041
Product Details | DIRECT CURRENT MOTOR
6105-01-174-1662 A motor which is designed for operation from a direct current source. Excludes MOTOR, ENGINE STARTER, ELECTRICAL. See also MOTOR, CONTROL.
Part Alternates: 0448321, 044832-1, 15M2R662041, 15M2R66-204-1, 15M2R662044, 15M2R66-204-4, 15M2R692044, 15M2R69-204-4, 6105-01-174-1662, 01-174-1662, 6105011741662, 011741662
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 15 MAR 1984 | 01-174-1662 | 16350 ( MOTOR, DIRECT CURRENT ) |

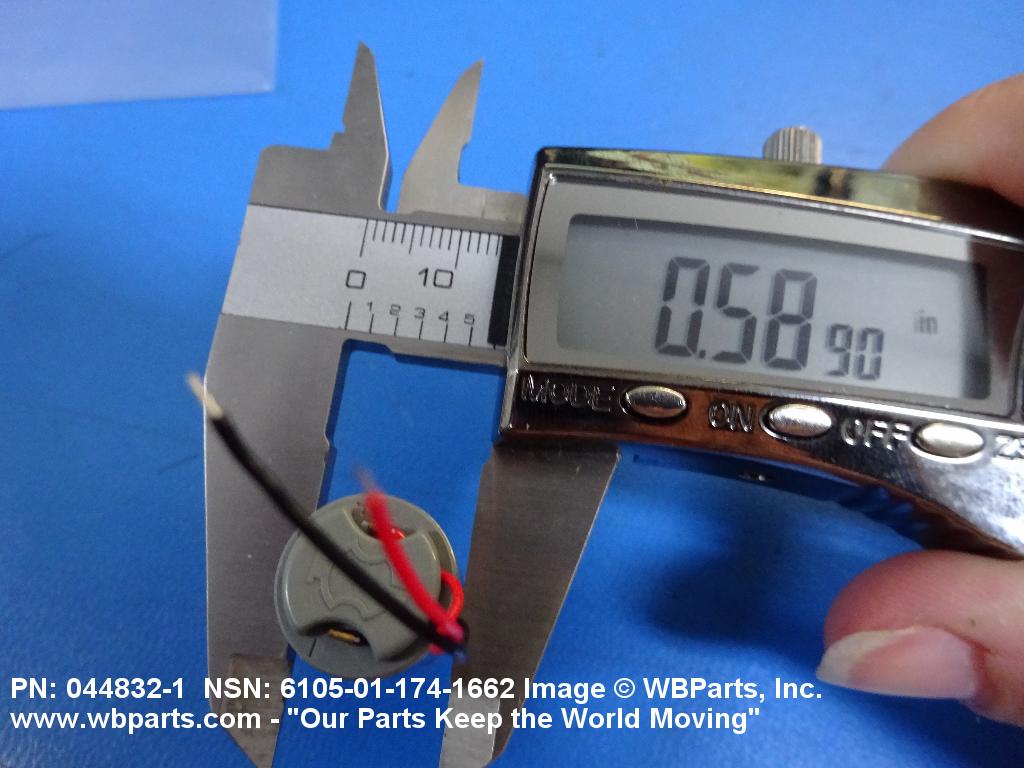

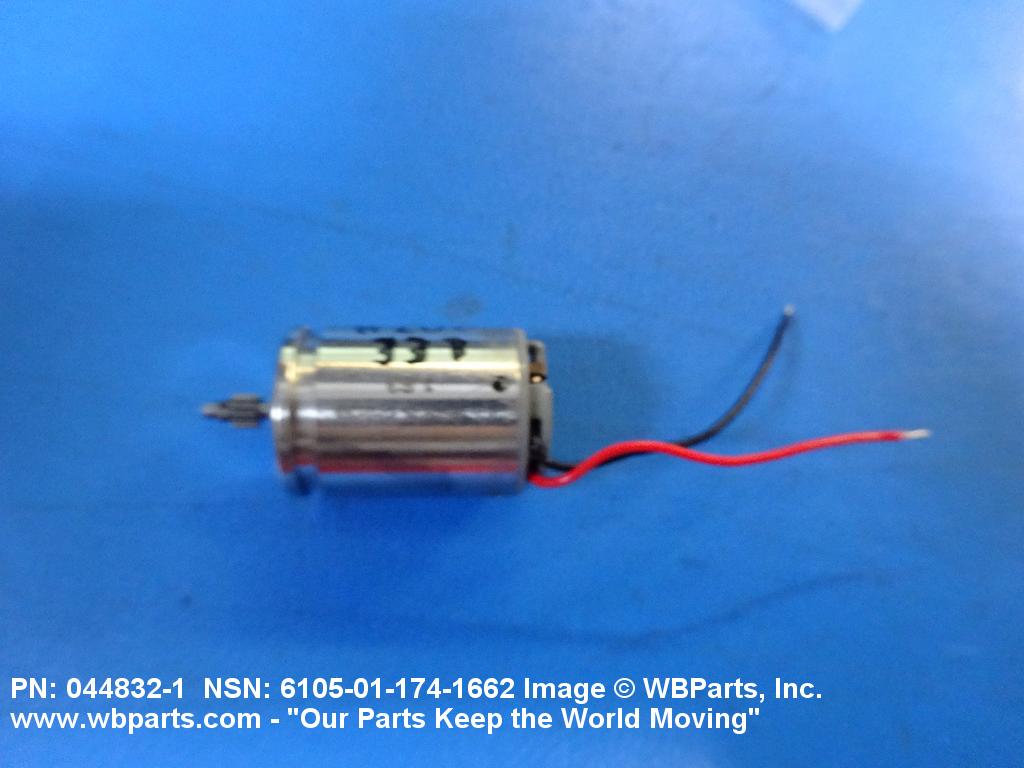

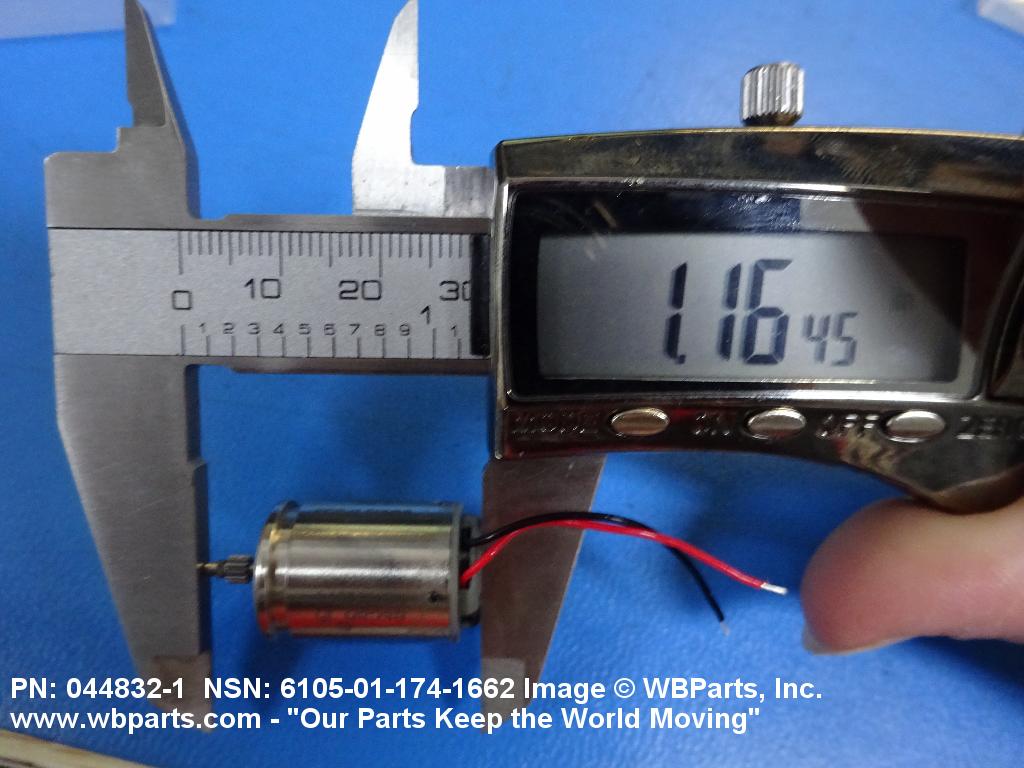

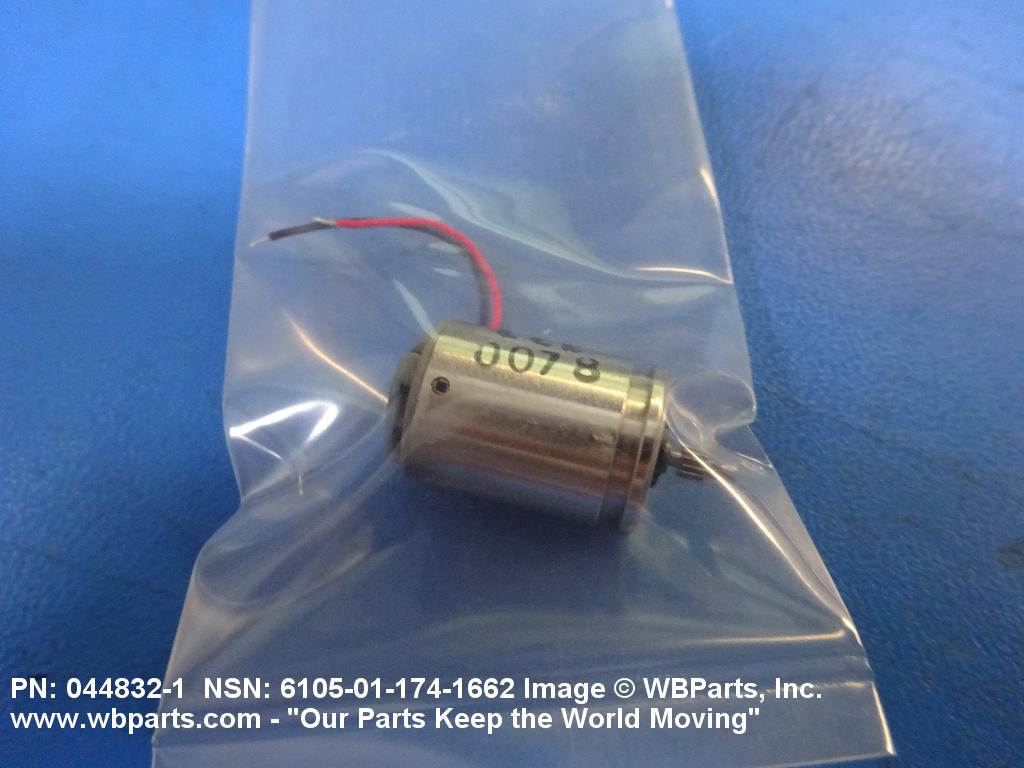

Drawings & Photos | NSN 6105-01-174-1662
Demand History | NSN 6105-01-174-1662
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 044832-1 | 2025-10-293 | 8 | DIBBS |
| 044832-1 | 2025-03-82 | 2 | DIBBS |
| 044832-1 | 2024-08-231 | 4 | DIBBS |
| 6105-01-174-1662 | 2022-02-34 | 4 | United States |
| 044832-1 | 2021-09-260 | 21 | DIBBS |
| 044832-1 | 2021-09-255 | 20 | DIBBS |
| 044832-1 | 2021-08-229 | 21 | DIBBS |
| 044832-1 | 2021-08-220 | 21 | DIBBS |
| 044832-1 | 2021-08-220 | 20 | DIBBS |
| 044832-1 | 2021-02-46 | 20 | DIBBS |
| 044832-1 | 2020-01-09 | 21 | DIBBS |
| 6105-01-174-1662 | 2017-01-04 | 16 | DIBBS |
| 6105-01-174-1662 | 2016-09-251 | 14 | DIBBS |
| 6105-01-174-1662 | 2016-06-159 | 9 | DIBBS |
| 6105-01-174-1662 | 2014-03-80 | 10 | DIBBS |
| 6105-01-174-1662 | 2014-03-72 | 10 | DIBBS |
| 6105-01-174-1662 | 2013-07-196 | 20 | DIBBS |
| 6105-01-174-1662 | 2012-06-159 | 20 | DIBBS |
| 6105-01-174-1662 | 2011-11-311 | 11 | DIBBS |
| 6105-01-174-1662 | 2011-10-293 | 11 | DIBBS |
| 6105-01-174-1662 | 2011-05-122 | 5 | DIBBS |
| 6105-01-174-1662 | 2011-02-55 | 3 | DIBBS |
| 6105-01-174-1662 | 2010-10-287 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-01-174-1662
Related Products | NSN 6105-01-174-1662
Technical Data | NSN 6105-01-174-1662
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 0.885 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.290 INCHES SINGLE END |
| MOUNTING METHOD | PAD |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 15.0 LINE TO NEUTRAL SINGLE INPUT |
| ROTOR SPEED RATING IN RPM | 900.0 SINGLE NO LOAD |
Restrictions/Controls & Freight Information | NSN 6105-01-174-1662
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-174-1662
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QD | SX:MISCELLANEOUS INSTRUMENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
