NSN 6110-00-947-1857 T1264, T-126-4, 263E1674
Product Details | MAGNETIC CONTACTOR
6110-00-947-1857 An item consisting of contacts, a magnetic core, and a coil with or without inclosure which is used to repeatedly establish and break a circuit. The item does not provide overload protection and is not used in line to control any other electrical controls. Excludes RELAY, ELECTROMAGNETIC and STARTER, MOTOR.l circuit. Exludes RELAY, ELECTRO-MAGNETIC and STARTER, MOTOR.
Part Alternates: T1264, T-126-4, 263E1674, 41NA30AGA, 41NB30AG, 4CF30, 4-CF30, 6110-00-947-1857, 00-947-1857, 6110009471857, 009471857
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 18 MAR 1966 | 00-947-1857 | 31517 ( CONTACTOR, MAGNETIC ) |

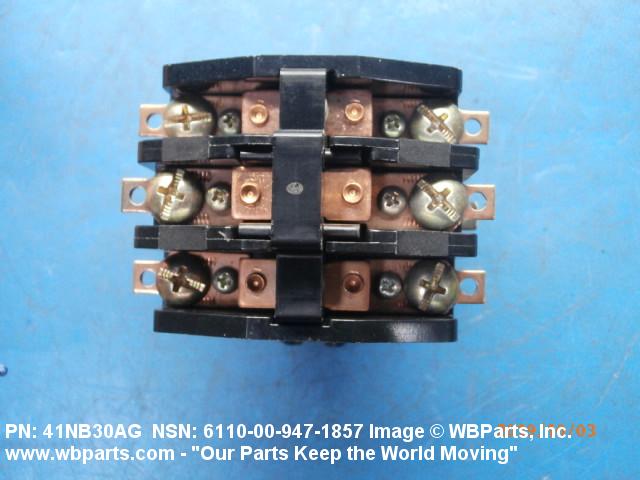

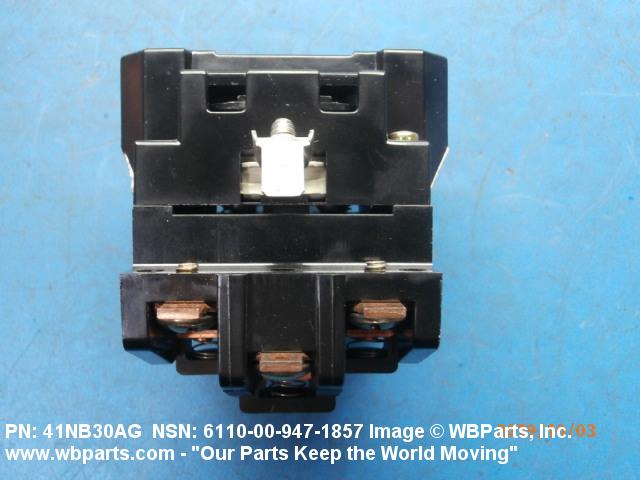

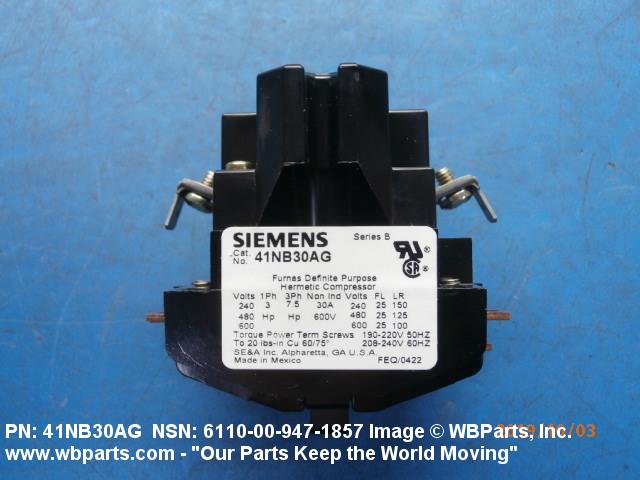

Drawings & Photos | NSN 6110-00-947-1857
Demand History | NSN 6110-00-947-1857
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6110-00-947-1857 | 2023-03-67 | 2 | PH |
| 6110-00-947-1857 | 2020-02-42 | 4 | US |
| 6110-00-947-1857 | 2019-09-248 | 2 | United States |
| 6110-00-947-1857 | 2014-09-262 | 12 | DIBBS |
| 6110-00-947-1857 | 2014-09-251 | 12 | DIBBS |
| 6110-00-947-1857 | 2014-04-106 | 7 | DIBBS |
| 6110-00-947-1857 | 2013-10-297 | 5 | DIBBS |
| 6110-00-947-1857 | 2013-10-282 | 5 | DIBBS |
| T1264 | 2012-06-181 | 1 | US |
| 6110-00-947-1857 | 2012-02-46 | 7 | DIBBS |
| 6110-00-947-1857 | 2011-08-237 | 6 | DIBBS |
| 6110-00-947-1857 | 2010-11-309 | 4 | DIBBS |
| 6110-00-947-1857 | 2010-07-207 | 1 | DIBBS |
| 6110-00-947-1857 | 2010-01-28 | 3 | DIBBS |
| 6110-00-947-1857 | 2009-08-232 | 1 | DIBBS |
| 6110-00-947-1857 | 2008-11-307 | 2 | DIBBS |
| 6110-00-947-1857 | 2008-09-253 | 1 | DIBBS |
| 6110-00-947-1857 | 2008-07-203 | 1 | DIBBS |
| 6110-00-947-1857 | 2007-07-195 | 4 | DIBBS |
Cross Reference | NSN 6110-00-947-1857
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 263E1674 | 91126 | VIC MFG CO |
| 4-CF30 | 38537 | CROWN FOOD SERVICE EQUIPMENT LTD |
| 41NA30AGA | 23826 | SIEMENS ENERGY AND AUTOMATION INC SIEMENS FURNAS CONTROLS DIV |
| 41NB30AG | 03WW7 | SOUTHERN CALIFORNIA CONNECTOR CO., INC. |
| 41NB30AG | 23826 | SIEMENS ENERGY AND AUTOMATION INC SIEMENS FURNAS CONTROLS DIV |
| T-126-4 | 02432 | AMERICAN LAUNDRY MACHINERY INC |
| T-126-4 | 59618 | ALLIANCE LAUNDRY SYSTEMS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6110-00-947-1857
Related Products | NSN 6110-00-947-1857
Technical Data | NSN 6110-00-947-1857
| Characteristic | Specifications |
|---|---|
| NATIONAL ELECTRICAL MANUFACTURERS ASSOCIATION STANDARDS DESIGN | NOT DESIGNED PER NEMA STD |
| OPERATING VOLTAGE CHARACTERISTIC | FULL |
| AC VOLTAGE RATING | 600.0 VOLTS MAXIMUM |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | THREE |
| AMP SIZE RATING | 30.0 |
| HORSEPOWER RATING | 7.500 |
| CONTROL TYPE | LOCAL |
| ACTUATION METHOD | MAGNETIC |
| ACTUATOR VOLTAGE | 208.0 AC AND 240.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| CIRCUIT PROTECTION FUSE | NOT PROVIDED |
| PERFORMANCE TYPE | AUTOMATIC |
| DUTY CYCLE | CONTINUOUS |
| AMBIENT TEMP | 25.0 DEG CELSIUS |
| SPEED ADJUSTMENTS | 0 TO FULL SPEED |
| REVERSIBLE FEATURE | NOT INCLUDED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| INCLOSURE FEATURE | OPEN |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| OVERALL HEIGHT | 2.688 INCHES NOMINAL |
| MOUNTING CONFIGURATION | TWO SLOTS FOR NO. 10 MTG SCREWS |
| ACCESSORY | NOT INCLUDED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.040 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 6110-00-947-1857
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-00-947-1857
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
