NSN 6110-01-121-4587 6957ED332A, 6957ED33-2A, 01-121-4587
Product Details | MAGNETIC CONTACTOR
6110-01-121-4587 An item consisting of contacts, a magnetic core, and a coil with or without inclosure which is used to repeatedly establish and break a circuit. The item does not provide overload protection and is not used in line to control any other electrical controls. Excludes RELAY, ELECTROMAGNETIC and STARTER, MOTOR.l circuit. Exludes RELAY, ELECTRO-MAGNETIC and STARTER, MOTOR.
Part Alternates: 6957ED332A, 6957ED33-2A, 6110-01-121-4587, 01-121-4587, 6110011214587, 011214587
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 05 NOV 1981 | 01-121-4587 | 31517 ( CONTACTOR, MAGNETIC ) |

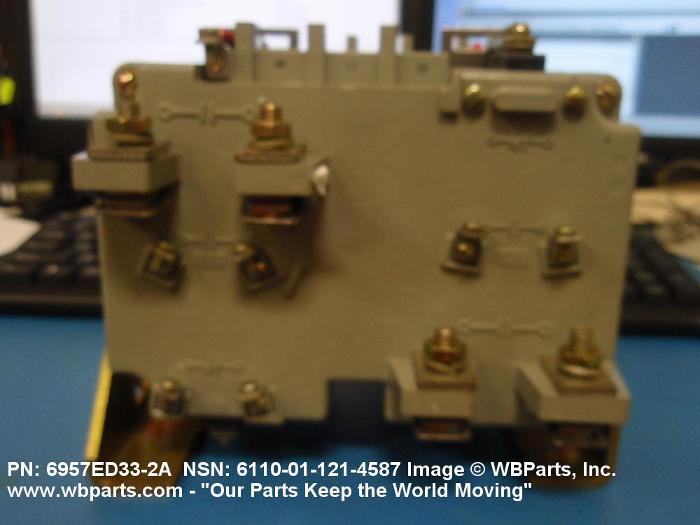

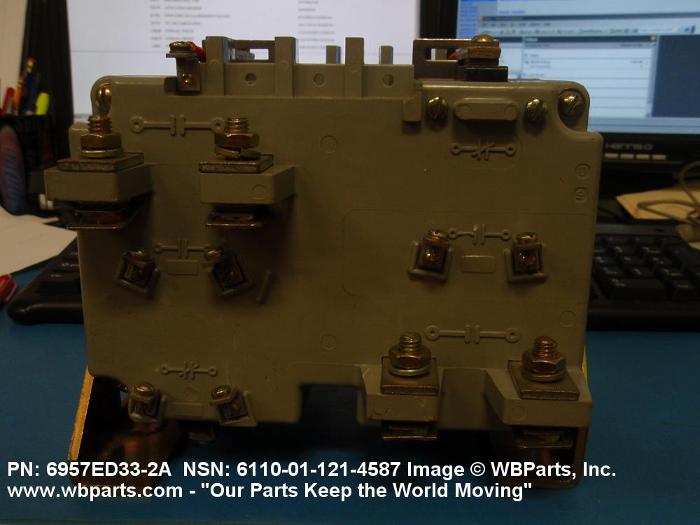

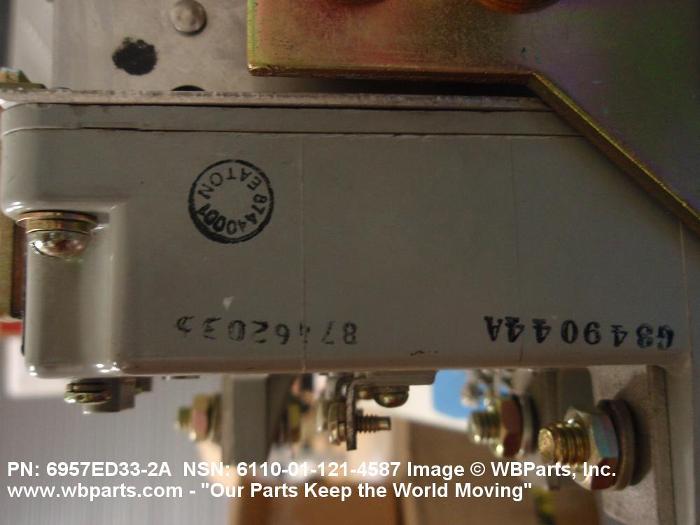

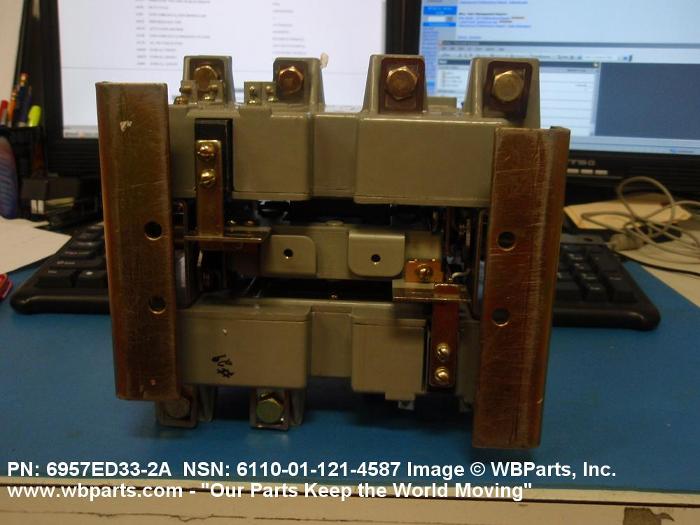

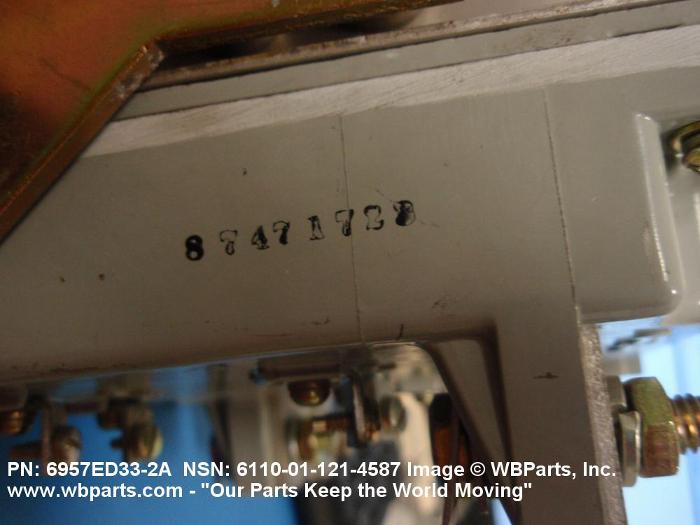

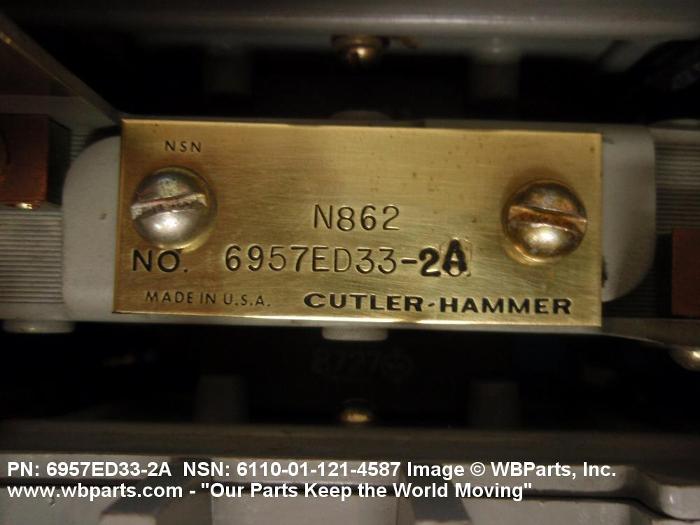

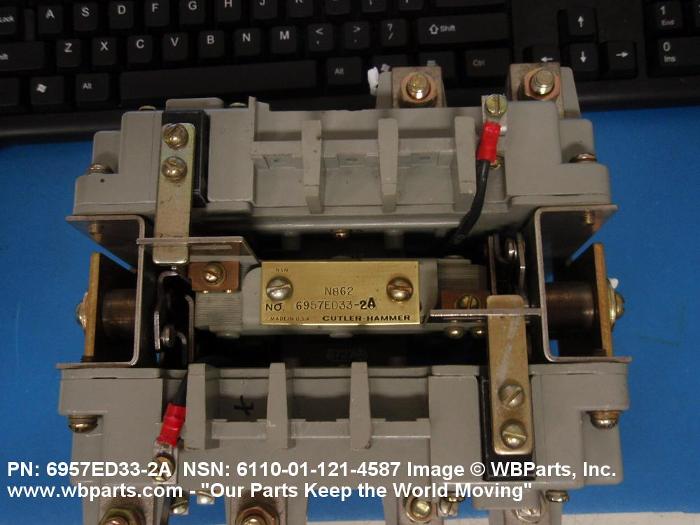

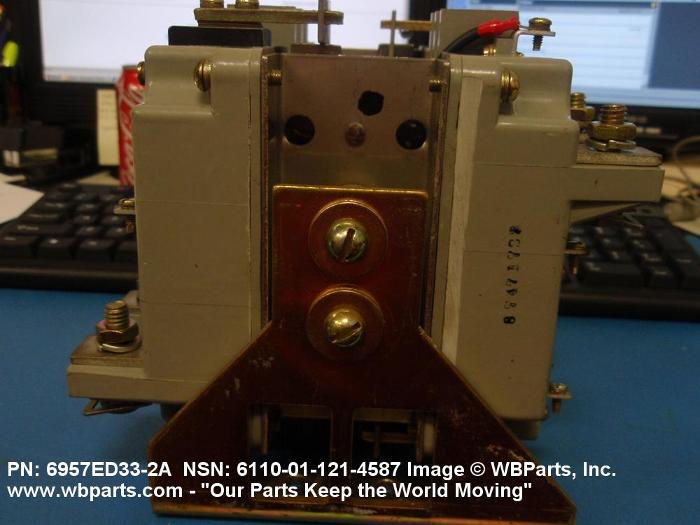

Drawings & Photos | NSN 6110-01-121-4587
Demand History | NSN 6110-01-121-4587
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6110-01-121-4587 | 2023-03-79 | 2 | United States |
| 6110-01-121-4587 | 2022-04-117 | 8 | US |
| 6110-01-121-4587 | 2019-05-122 | 2 | Taiwan |
| 6110-01-121-4587 | 2011-04-98 | 1 | Taiwan |
Cross Reference | NSN 6110-01-121-4587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6957ED33-2A | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6110-01-121-4587
Technical Data | NSN 6110-01-121-4587
| Characteristic | Specifications |
|---|---|
| NATIONAL ELECTRICAL MANUFACTURERS ASSOCIATION STANDARDS DESIGN | DESIGNED PER NEMA STD |
| SIZE DESIGNATOR | 4 |
| OPERATING VOLTAGE CHARACTERISTIC | FULL |
| AC VOLTAGE RATING | 440.0 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | THREE |
| AMP SIZE RATING | 135.0 |
| HORSEPOWER RATING | NOT RATED |
| CONTROL TYPE | REMOTE |
| ACTUATION METHOD | MAGNETIC |
| ACTUATOR VOLTAGE | 440.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| CIRCUIT PROTECTION FUSE | NOT PROVIDED |
| PERFORMANCE TYPE | AUTOMATIC |
| DUTY CYCLE | CONTINUOUS |
| AMBIENT TEMP | 50.0 DEG CELSIUS |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| INCLOSURE FEATURE | ANY ACCEPTABLE |
| OVERALL WIDTH | 8.250 INCHES NOMINAL |
| OVERALL LENGTH | 6.969 INCHES NOMINAL |
| OVERALL HEIGHT | 6.438 INCHES NOMINAL |
| ACCESSORY | NOT INCLUDED |
| MANUFACTURERS CODE | 27192 |
| DESIGN CONTROL REFERENCE | 6957ED33-2A |
Restrictions/Controls & Freight Information | NSN 6110-01-121-4587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-01-121-4587
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
