NSN 6145-00-220-9660 AA59569, A-A-59569, AA59569R36T0500

Product Details | WIRE BRAID

6145-00-220-9660 An item formed by crossing three or more electrical conductors diagonally in such a manner that each conductor passes alternately over and under one or more of the others. Manufactured in flat or tubular shapes. Refers to bulk quantities only. See also SHIELD, SPARK PLUG.

Part Alternates: AA59569, A-A-59569, AA59569R36T0500, NEQ481136, NEQ481136T, S9939412IN, S99394-1-2IN, SF 48 X 11 X 36, SF48X11X36, SM1004504, SM10045-04, SMA78787011, SM-A-787870-11, BAC31084, BAC3108-4, C206511, C2065-11, QQB575, QQ-B-575, QQB575 R36T0500, QQB575R36T0300, QQB575R36T0500, QQB575R36T500, GB831A3290, GB831A32-90, FAUN, 760-00086-5, 80873456, 808734-56, 81600058, 8160-0058, 84374324, 8437432-4, 8672, 13100640-3, 2174, 2250-1/2, 225012, 345085, 41644519, 416445-19, 4250938000, 425-0938-000, 50508, 5710078006, 571-0078-006, 6080020, 087013103041, 087-013103-041, 100001A500, 100-001A500, 10139875 , 6145-00-220-9660, 00-220-9660, 6145002209660, 002209660, 760000865, 131006403

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JAN 1963	00-220-9660	00386 ( BRAID, WIRE )

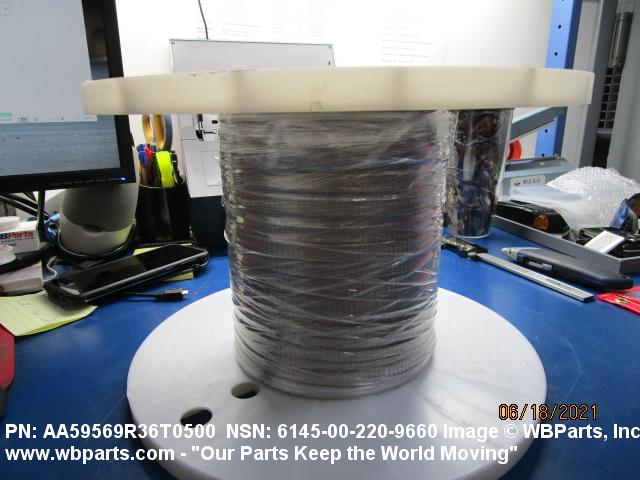

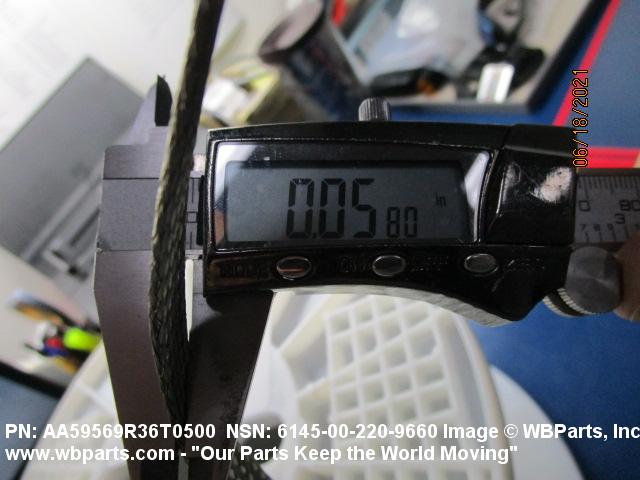

Drawings & Photos | NSN 6145-00-220-9660

Part Number	Request Date	QTY	Origin
6145-00-220-9660	2025-09-247	16033	DIBBS
6145-00-220-9660	2025-06-156	6333	DIBBS
6145-00-220-9660	2025-03-69	24633	DIBBS
6145-00-220-9660	2025-02-56	24633	DIBBS
6145-00-220-9660	2024-05-127	1	US
6145-00-220-9660	2024-05-127	3	US
AA59569R36T0500	2024-04-104	3	US
6145-00-220-9660	2024-04-103	3	US
AA59569R36T0500	2023-04-93	10000	United States
BAC31084	2023-04-93	10000	United States
8672	2023-01-04	1	United States
8672	2023-01-04	2	United States
6145-00-220-9660	2022-06-152	3	United States
8672	2022-05-125	1	United States
8672	2022-02-55	1	United States
QQB575R36T0500	2021-07-187	800	United States
6145-00-220-9660	2021-06-159	100	United States
6145-00-220-9660	2019-12-347	100	us
6145-00-220-9660	2018-06-155	1000	DIBBS
6145-00-220-9660	2018-03-67	67200	DIBBS
6145-00-220-9660	2018-02-43	100600	DIBBS
AA59569R36T0500	2018-01-02	2106	US
6145-00-220-9660	2017-11-310	17600	DIBBS
AA59569R36T0500	2017-09-264	240	United States
6145-00-220-9660	2017-02-53	70000	DIBBS
AA59569R36T0500	2016-12-350	1000	US
6145-00-220-9660	2016-06-179	51000	DIBBS
AA59569R36T0500	2016-02-46	2	United States
AA59569R36T0500	2015-08-230	100	United States
6145-00-220-9660	2015-06-165	37067	DIBBS
QQB575R36T0500	2015-06-159	50	US
AA59569R36T0500	2015-05-142	64	US
AA59569R36T0500	2014-01-29	1844	United States
6145-00-220-9660	2013-08-213	45500	DIBBS
6145-00-220-9660	2013-07-196	16800	DIBBS
AA59569R36T0500	2013-07-182	312	United States
6145-00-220-9660	2013-06-171	18500	DIBBS
QQB575R36T0500	2013-06-154	100	United States
6145-00-220-9660	2013-02-59	45800	DIBBS
AA59569R36T0500	2012-09-257	1	US
6145-00-220-9660	2012-08-240	4300	DIBBS
BAC31084	2012-07-212	8	US
BAC31084	2012-07-212	33	US
6145-00-220-9660	2012-07-207	7300	DIBBS
QQB575	2012-06-166	1	US
AA59569R36T0500	2012-05-143	22	United States
QQB575R36T0500	2012-03-66	500	United States
AA59569R36T0500	2012-01-23	1915	United States
AA59569R36T0500	2011-11-319	8400	US
6145-00-220-9660	2011-10-284	15113	DIBBS
6145-00-220-9660	2011-09-259	600	DIBBS
6145-00-220-9660	2011-09-259	1000	DIBBS
6145-00-220-9660	2011-09-259	1700	DIBBS
6145-00-220-9660	2011-09-259	2900	DIBBS
6145-00-220-9660	2011-09-259	8200	DIBBS
6145-00-220-9660	2011-09-258	600	DIBBS
6145-00-220-9660	2011-09-256	1700	DIBBS
6145-00-220-9660	2011-09-246	1000	DIBBS
6145-00-220-9660	2011-09-244	8200	DIBBS
6145-00-220-9660	2011-08-237	2900	DIBBS
6145-00-220-9660	2011-08-221	1800	DIBBS
6145-00-220-9660	2011-07-203	10313	DIBBS
6145-00-220-9660	2011-07-182	5400	DIBBS
6145-00-220-9660	2011-06-159	8600	DIBBS
AA59569R36T0500	2011-03-75	500	US
6145-00-220-9660	2010-12-361	9500	DIBBS
6145-00-220-9660	2010-07-210	3200	DIBBS
6145-00-220-9660	2010-07-207	600	DIBBS
6145-00-220-9660	2010-07-196	3400	DIBBS
6145-00-220-9660	2010-06-179	10700	DIBBS
6145-00-220-9660	2010-04-120	16800	DIBBS
6145-00-220-9660	2010-04-99	13800	DIBBS
6145-00-220-9660	2010-04-92	10200	DIBBS
6145-00-220-9660	2010-03-88	2300	DIBBS
6145-00-220-9660	2010-03-69	5700	DIBBS
6145-00-220-9660	2010-02-41	20300	DIBBS
6145-00-220-9660	2009-10-292	10800	DIBBS
6145-00-220-9660	2009-06-159	6400	DIBBS
6145-00-220-9660	2009-04-99	6200	DIBBS
6145-00-220-9660	2009-02-58	5200	DIBBS
6145-00-220-9660	2009-02-51	12700	DIBBS
6145-00-220-9660	2009-01-30	12300	DIBBS
6145-00-220-9660	2008-05-152	13100	DIBBS
6145-00-220-9660	2008-05-136	5400	DIBBS
6145-00-220-9660	2008-04-109	11300	DIBBS

Cross Reference | NSN 6145-00-220-9660

Part Number	Cage Code	Manufacturer
087-013103-041	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
100-001A500	06324	GLENAIR, INC.
100-001A500	C3471	GLENAIR ELECTRIC GMBH
13100640-3	18876	U S ARMY AVIATION AND MISSILE COMMAND
2174	92194	ALPHA WIRE CORPORATION
2250-1/2	71002	BIRNBACH CO INC
345085	25778	SIERRA TECHNOLOGIES INC GARDEN CITY DIV
416445-19	96214	RAYTHEON COMPANY DBA RAYTHEON
425-0938-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
50508	16428	BELDEN WIRE & CABLE COMPANY LLC DBA BELDEN CDT ELECTRONICS DIVISION
571-0078-006	94756	BOEING COMPANY, THE DBA BOEING
6080020	03640	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
760-00086-5	14170	HUGHES MISSILE SYSTEMS CO SAN DIEGO
760-00086-5	15090	RAYTHEON COMPANY DBA RAYTHEON
808734-56	96214	RAYTHEON COMPANY DBA RAYTHEON
8160-0058	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
8437432-4	19204	ARMY UNITED STATES DEPARTMENT OF THE
8672	2W733	BELDEN WIRE AND CABLE CO WIRE AND CABLE OFFICE
A-A-59569	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59569R36T0500	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
BAC3108-4	81205	THE BOEING COMPANY DBA BOEING
C2065-11	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
FAUN	2W733	BELDEN WIRE AND CABLE CO WIRE AND CABLE OFFICE
GB831A32-90	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
NEQ481136	74116	NEW ENGLAND WIRE TECHNOLOGIES CORP.
NEQ481136T	74116	NEW ENGLAND WIRE TECHNOLOGIES CORP.
QQ-B-575	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
QQB575 R36T0500	02GJ5	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
QQB575R36T0300	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
QQB575R36T0500	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
QQB575R36T500	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
S99394-1-2IN	92194	ALPHA WIRE CORPORATION
SF 48 X 11 X 36	31415	SANTA FE TEXTILES INC
SM-A-787870-11	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SM10045-04	07690	BAE SYSTEMS CONTROLS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-00-220-9660

Compare

Related Products | NSN 6145-00-220-9660

6145-00-220-9699, 6145-00-220-9854, 6145-00-220-9871, 6145-00-220-9874, 6145-00-220-9925

Technical Data | NSN 6145-00-220-9660

Characteristic	Specifications
CONDUCTOR FORM	BRAID, TUBULAR SINGLE CONDUCTOR
MATERIAL	COPPER CORE CONDUCTOR SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B33 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT	TIN CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B33 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE	9 AWG SINGLE CONDUCTOR
STRAND QUANTITY PER CONDUCTOR	528 SINGLE CONDUCTOR
STRAND AWG SIZE PER CONDUCTOR	36 SINGLE CONDUCTOR
CONDUCTOR CROSS-SECTIONAL SHAPE	TUBULAR BRAID SINGLE CONDUCTOR

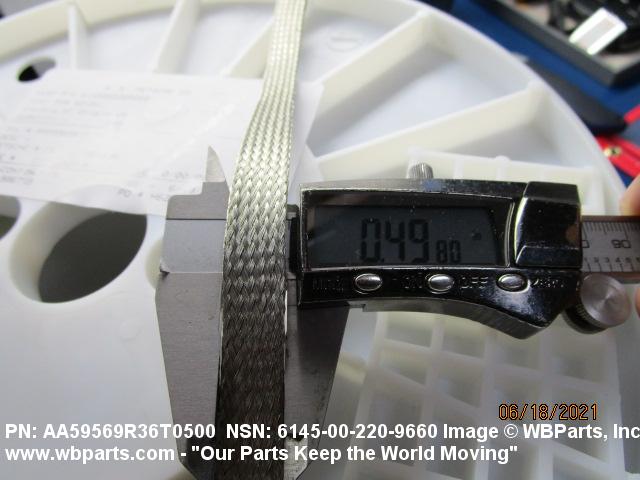

INSIDE DIAMETER	0.500 INCHES NOMINAL SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-59569
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA59569R36T0500
