NSN 6145-00-548-2925 NE83236T, NE83636T, NE836-36T

Product Details | WIRE BRAID

6145-00-548-2925 An item formed by crossing three or more electrical conductors diagonally in such a manner that each conductor passes alternately over and under one or more of the others. Manufactured in flat or tubular shapes. Refers to bulk quantities only. See also SHIELD, SPARK PLUG.

Part Alternates: NE83236T, NE83636T, NE836-36T, NEQ481836T, AA59569, A-A-59569, AA59569R36T0781, BAC31087B, BAC3108-7B, QQB575, QQ-B-575, QQB575R36T0781, QQB575R36T750, QQB575R36T781, 704AS6343, 704AS63431, 704AS6343-1, 8001036001, 8001036-001, 80873457, 808734-57, 84374321, 8437432-1, 9116C50017, 9116C5001-7, 9116C500216, 9116C5002-16, 087013103047, 087-013103-047, 100001A781, 100-001A781, 1326, 2003650, 20-036-50, 2176, 2250-11/16, 22501116, 2250-25/32, 22502532, 41644520, 416445-20, 5049, 6080021, 6145-00-548-2925, 00-548-2925, 6145005482925, 005482925

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JAN 1963	00-548-2925	00386 ( BRAID, WIRE )

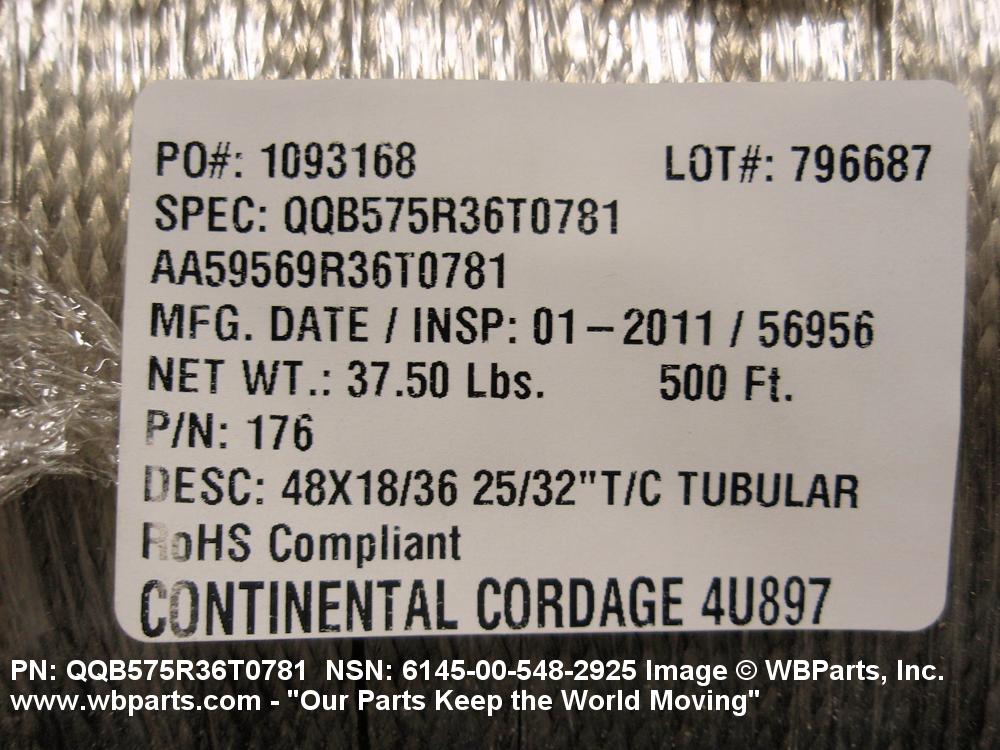

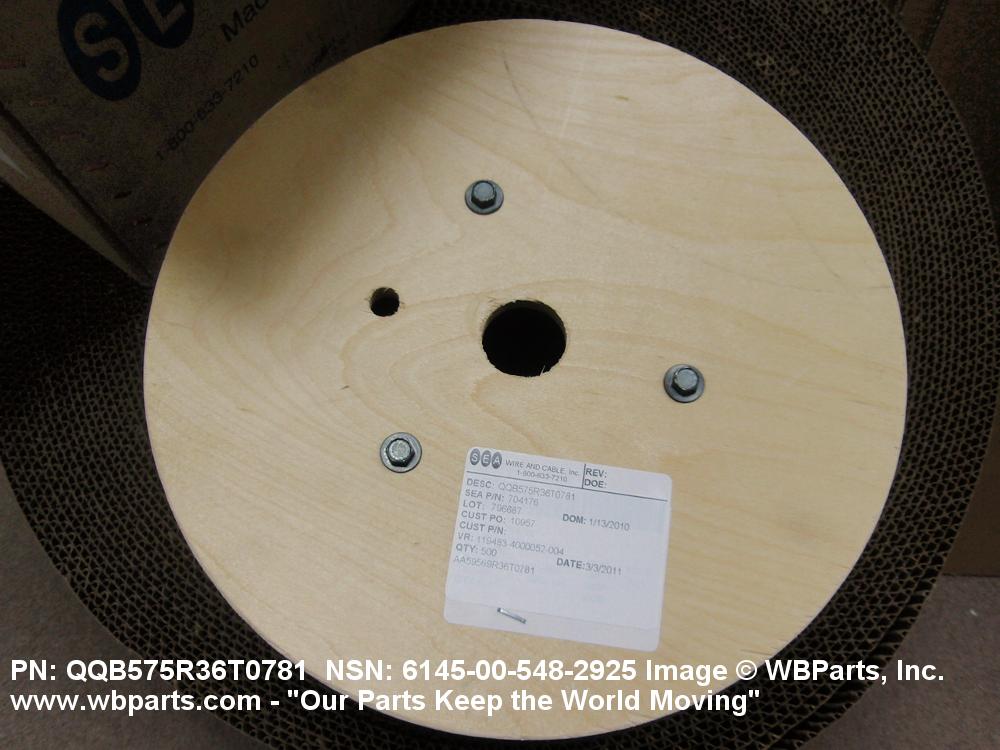

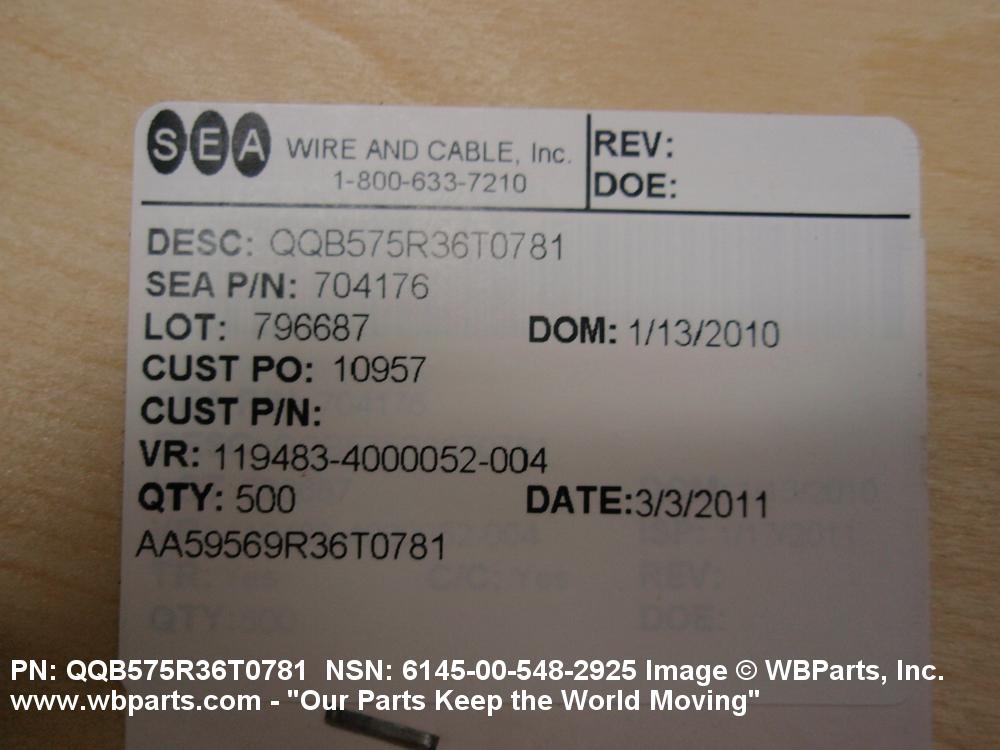

Drawings & Photos | NSN 6145-00-548-2925

Part Number	Request Date	QTY	Origin
AA59569R36T0781	2025-10-302	110	United States
6145-00-548-2925	2025-10-286	100	United States
6145-00-548-2925	2025-07-191	1000	US
6145-00-548-2925	2025-06-153	1000	US
6145-00-548-2925	2025-02-58	12000	DIBBS
6145-00-548-2925	2025-02-54	6000	DIBBS
6145-00-548-2925	2023-11-310	28000	DIBBS
6145-00-548-2925	2023-10-299	28000	DIBBS
6145-00-548-2925	2023-01-17	20000	DIBBS
6145-00-548-2925	2023-01-05	20000	DIBBS
6145-00-548-2925	2022-12-360	15000	DIBBS
6145-00-548-2925	2022-11-324	23500	DIBBS
6145-00-548-2925	2021-02-42	34000	DIBBS
6145-00-548-2925	2021-01-31	34000	DIBBS
6145-00-548-2925	2020-07-189	22043	DIBBS
6145-00-548-2925	2020-06-174	22043	DIBBS
6145-00-548-2925	2020-02-41	23800	DIBBS
6145-00-548-2925	2019-06-171	18500	DIBBS
6145-00-548-2925	2018-12-337	21400	DIBBS
QQB575R36T781	2018-08-219	100	ZA
QQB575R36T781	2018-08-219	500	ZA
QQB575R36T781	2018-08-219	1000	ZA
6145-00-548-2925	2017-10-284	25070	DIBBS
6145-00-548-2925	2017-09-271	1	US
AA59569R36T0781	2017-09-264	12	United States
1326	2017-09-245	9	SA
5049	2017-06-174	156	US
6145-00-548-2925	2017-06-165	20000	DIBBS
6145-00-548-2925	2017-06-152	20000	DIBBS
1326	2016-07-203	2	Indonesia
AA59569R36T0781	2016-02-49	85	United States
AA59569R36T0781	2015-08-230	100	United States
QQB575R36T0781	2015-06-159	50	US
AA59569R36T0781	2015-05-142	72	US
6145-00-548-2925	2014-12-343	119	DIBBS
QQB575R36T0781	2014-06-176	100
AA59569R36T0781	2014-05-147	100	United States
AA59569R36T0781	2014-01-29	110	United States
AA59569R36T0781	2013-09-253	96	United States
AA59569R36T0781	2012-09-257	1	US
QQB575	2012-06-166	1	US
NEQ481836T	2012-04-96	3	IN
AA59569R36T0781	2012-01-23	1232	United States
6145-00-548-2925	2011-12-364	100000	DIBBS
QQB575R36T781	2011-06-180	8	United States
QQB575R36T781	2011-05-143	8	United States
6145-00-548-2925	2011-05-126	3300	DIBBS
6145-00-548-2925	2011-03-68	9803	MANUAL
6145-00-548-2925	2011-02-59	500	United States
1326	2011-02-55	1	MA
6145-00-548-2925	2010-09-250	1600	DIBBS
QQB575R36T0781	2009-07-208	160	US
6145-00-548-2925	2009-01-06	1400	DIBBS
6145-00-548-2925	2009-01-02	189	DIBBS
6145-00-548-2925	2008-10-301	17500	DIBBS
6145-00-548-2925	2008-10-295	8501	DIBBS
6145-00-548-2925	2008-10-281	8413	DIBBS
6145-00-548-2925	2008-06-154	12200	DIBBS
6145-00-548-2925	2008-05-122	2306	DIBBS
6145-00-548-2925	2008-02-60	1398	DIBBS
1326	2006-05-131	4	RO

Cross Reference | NSN 6145-00-548-2925

Part Number	Cage Code	Manufacturer
087-013103-047	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
087-013103-047	65959	SEA WIRE AND CABLE INC
100-001A781	C3471	GLENAIR ELECTRIC GMBH
1326	73612	CONSOLIDATED ELECTRONIC WIRE & CABLE CORP.
20-036-50	97499	BELL HELICOPTER TEXTRON INC.
2176	92194	ALPHA WIRE CORPORATION
2250-11/16	71002	BIRNBACH CO INC
2250-25/32	71002	BIRNBACH CO INC
416445-20	96214	RAYTHEON COMPANY DBA RAYTHEON
5049	16428	BELDEN WIRE & CABLE COMPANY LLC DBA BELDEN CDT ELECTRONICS DIVISION
5049	2W733	BELDEN WIRE AND CABLE CO WIRE AND CABLE OFFICE
6080021	03640	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
704AS6343	30003	NAVAL AIR SYSTEMS COMMAND
704AS6343-1	30003	NAVAL AIR SYSTEMS COMMAND
8001036-001	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
808734-57	96214	RAYTHEON COMPANY DBA RAYTHEON
8437432-1	19204	ARMY UNITED STATES DEPARTMENT OF THE
9116C5001-7	87557	LOCKHEED CORP LOCKHEED ELECTRONICS CO INC
9116C5001-7	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
9116C5002-16	87557	LOCKHEED CORP LOCKHEED ELECTRONICS CO INC
9116C5002-16	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
A-A-59569	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59569R36T0781	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
BAC3108-7B	81205	THE BOEING COMPANY DBA BOEING
NE83236T	91311	SAF-T-GARD INTERNATIONAL, INC.
NE836-36T	63794	COONER MFR CO
NEQ481836T	74116	NEW ENGLAND WIRE TECHNOLOGIES CORP.
QQ-B-575	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
QQB575R36T0781	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
QQB575R36T750	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
QQB575R36T781	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-00-548-2925

Compare

Related Products | NSN 6145-00-548-2925

6145-00-548-2926, 6145-00-548-2927, 6145-00-548-2928, 6145-00-548-2929, 6145-00-548-2962

Technical Data | NSN 6145-00-548-2925

Characteristic	Specifications
CONDUCTOR FORM	BRAID, TUBULAR SINGLE CONDUCTOR
MATERIAL	COPPER CORE CONDUCTOR SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B33 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT	TIN CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B33 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE	7 AWG SINGLE CONDUCTOR
STRAND QUANTITY PER CONDUCTOR	864 SINGLE CONDUCTOR
STRAND AWG SIZE PER CONDUCTOR	36 SINGLE CONDUCTOR
CONDUCTOR CROSS-SECTIONAL SHAPE	TUBULAR BRAID SINGLE CONDUCTOR
INSIDE DIAMETER	0.781 INCHES NOMINAL SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND
III END ITEM IDENTIFICATION	SUPPORT EQUIPMENT, B-1 AIRCRAFT; DEFENSE COMMUNICATIONS RADIO (9 SYSTEMS); AIRCRAFT, ( AC-130H, MC-130H, EC-130E, HC-130); RADAR SET, LIGHTWEIGHT
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-59569
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA59569R36T0781

Restrictions/Controls & Freight Information | NSN 6145-00-548-2925

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061130	CABLE ASSEMBLY
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6145-00-548-2925

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	S	Surveillance Target Acquisition and Night Observation (STANO)
Weapons Systems/End Item or Homogeneous Group	SF	Battlefield Illum
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q FT : Foot

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q FT : Foot
