Product Details | INDICATOR LIGHT ASSEMBLY
6210-01-009-1253 An item designed to convey information of a specific nature concerning the circuit in which inserted. Consists of two or more LIGHT, INDICATOR.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: GL806FV5RY001, 6508213, 65-0821-3, 6210-01-009-1253, 01-009-1253, 6210010091253, 010091253
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 04 SEP 1975 | 01-009-1253 | 03430 ( LIGHT ASSEMBLY, INDICATOR ) |
Drawings & Photos | NSN 6210-01-009-1253
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6210-01-009-1253
Related Products | NSN 6210-01-009-1253
6210-01-009-1330, 6210-01-009-1653, 6210-01-009-2364, 6210-01-009-2556, 6210-01-009-2686
Technical Data | NSN 6210-01-009-1253
| Characteristic | Specifications |
|---|---|

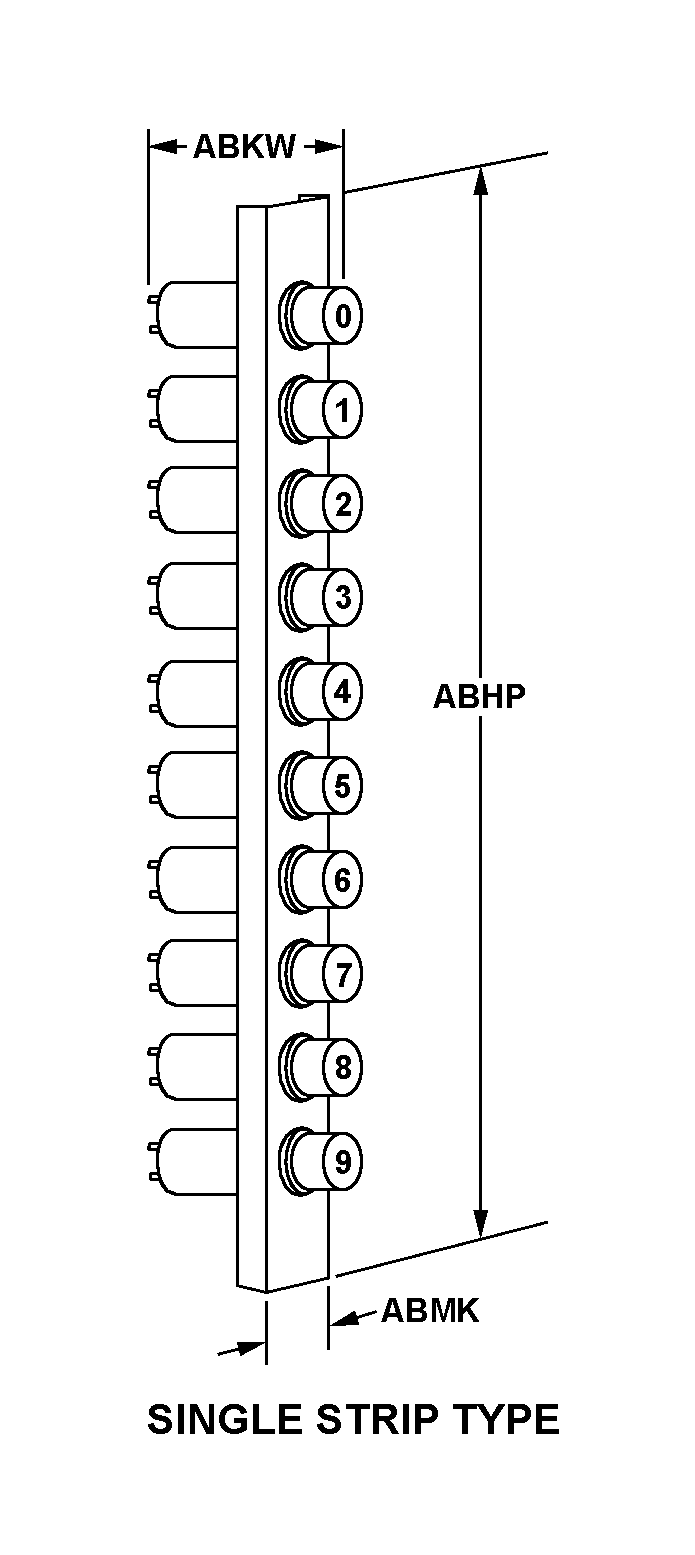

| STYLE DESIGNATOR | A13 SINGLE STRIP TYPE |
| OVERALL LENGTH | 2.500 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.170 INCHES MAXIMUM |
| OVERALL WIDTH | 0.840 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 10 INCANDESCENT |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS QUANTITY | 5 |
| LENS TYPE | FLAT, RECTANGULAR SINGLE ROW 1ST POSITION VERTICAL FLAT, RECTANGULAR SINGLE ROW 2ND POSITION VERTICAL FLAT, RECTANGULAR SINGLE ROW 3RD POSITION VERTICAL FLAT, RECTANGULAR SINGLE ROW 4TH POSITION VERTICAL FLAT, RECTANGULAR SINGLE ROW 5TH POSITION VERTICAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT SINGLE ROW 1ST POSITION VERTICAL TRANSLUCENT SINGLE ROW 2ND POSITION VERTICAL TRANSLUCENT SINGLE ROW 3RD POSITION VERTICAL TRANSLUCENT SINGLE ROW 4TH POSITION VERTICAL TRANSLUCENT SINGLE ROW 5TH POSITION VERTICAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE ROW 1ST POSITION VERTICAL SMOOTH SINGLE ROW 2ND POSITION VERTICAL SMOOTH SINGLE ROW 3RD POSITION VERTICAL SMOOTH SINGLE ROW 4TH POSITION VERTICAL SMOOTH SINGLE ROW 5TH POSITION VERTICAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE ROW 1ST POSITION VERTICAL SMOOTH SINGLE ROW 2ND POSITION VERTICAL SMOOTH SINGLE ROW 3RD POSITION VERTICAL SMOOTH SINGLE ROW 4TH POSITION VERTICAL SMOOTH SINGLE ROW 5TH POSITION VERTICAL |
| LENS COLOR | RED, AVIATION, MIL-C-25050 TYPE 1 SINGLE ROW 1ST POSITION VERTICAL RED, AVIATION, MIL-C-25050 TYPE 1 SINGLE ROW 2ND POSITION VERTICAL YELLOW, AVIATION, MIL-C-25050 TYPE 1 SINGLE ROW 3RD POSITION VERTICAL YELLOW, AVIATION, MIL-C-25050 TYPE 1 SINGLE ROW 4TH POSITION VERTICAL YELLOW, AVIATION, MIL-C-25050 TYPE 1 SINGLE ROW 5TH POSITION VERTICAL |
Restrictions/Controls & Freight Information | NSN 6210-01-009-1253
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-01-009-1253
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
