NSN 6605-00-815-1903 AQU-3/A, AQU3A, CB21255
Product Details | MOUNTED MAGNETIC COMPASS
6605-00-815-1903 An instrument which utilizes a magnetic needle or indicator and a graduated dial or card to determine direction in relation to the magnetic north. It has provisions for mounting in a fixed position to insure proper alignment when in use.
Part Alternates: AQU-3/A, AQU3A, CB21255, CB2125-5, CB2125T5, MILC38214, MILPRF38214, MIL-PRF-38214, 6605-00-815-1903, 00-815-1903, 6605008151903, 008151903
Instruments and Laboratory Equipment | Navigational Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-815-1903 | 16206 ( COMPASS, MAGNETIC, MOUNTED ) |

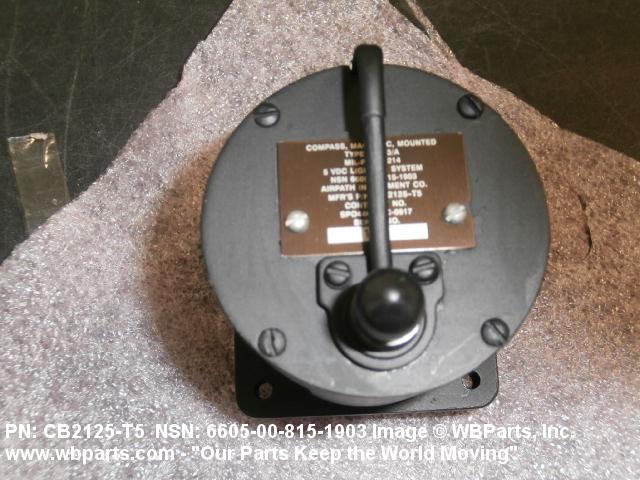

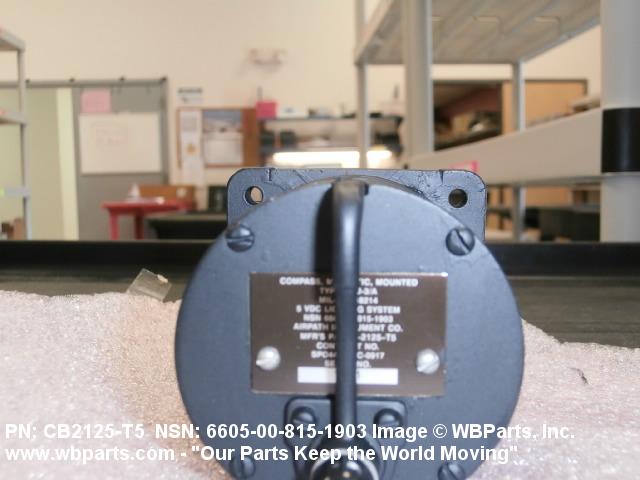

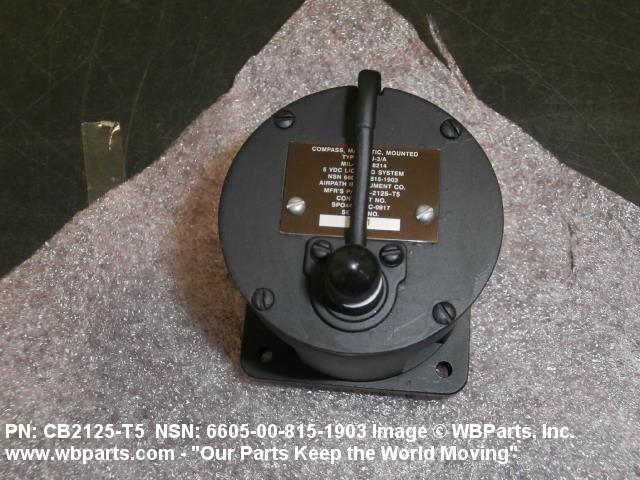

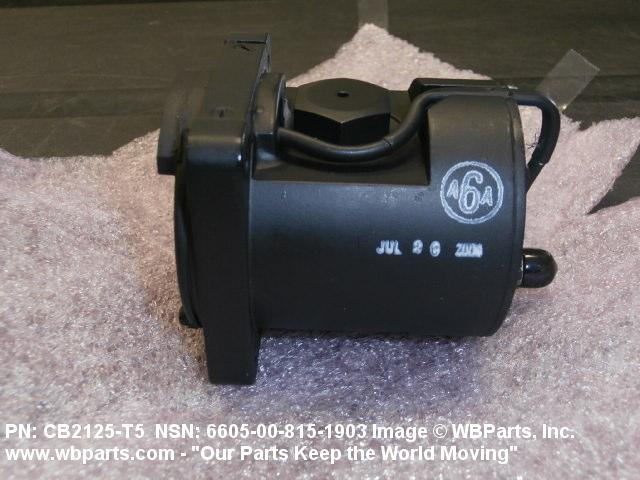

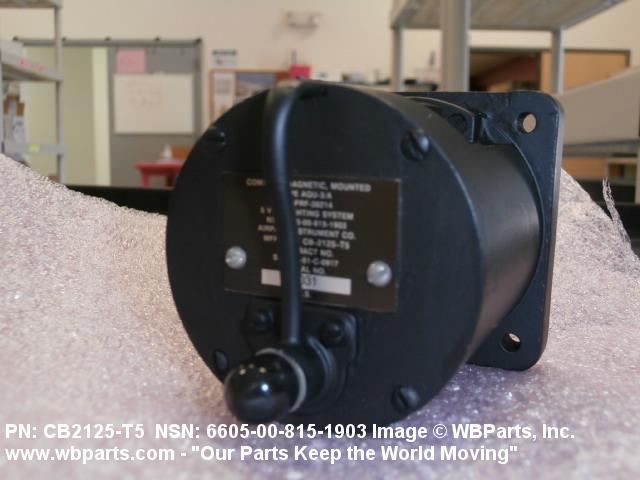

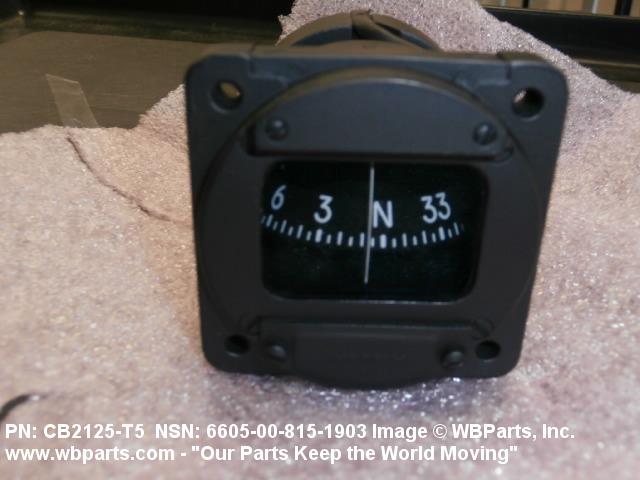

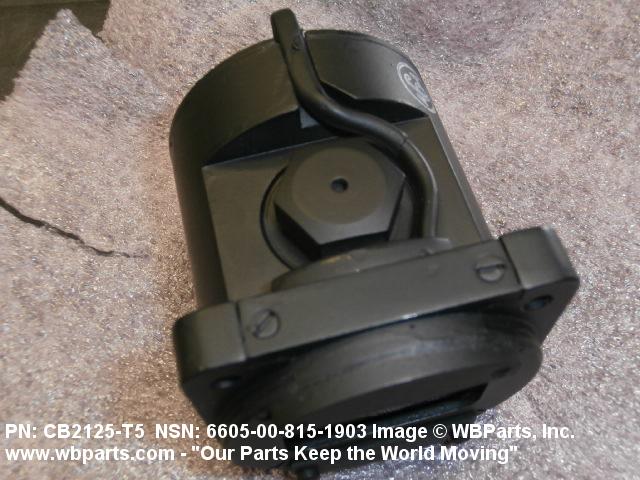

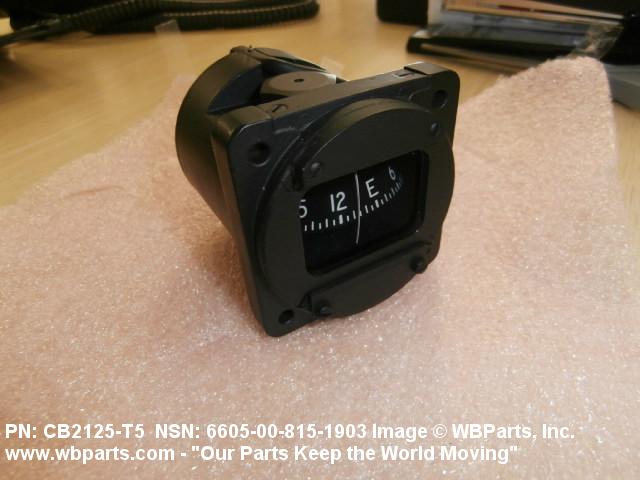

Drawings & Photos | NSN 6605-00-815-1903
Demand History | NSN 6605-00-815-1903
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AQU3A | 2023-10-298 | 10 | US |
| AQU3A | 2023-10-298 | 25 | US |
| AQU3A | 2023-10-298 | 50 | US |
| AQU3A | 2023-10-298 | 11 | US |
| 6605-00-815-1903 | 2023-06-180 | 1 | United Kingdom |
| 6605-00-815-1903 | 2022-07-198 | 108 | DIBBS |
| 6605-00-815-1903 | 2022-04-116 | 72 | DIBBS |
| 6605-00-815-1903 | 2022-04-108 | 72 | DIBBS |
| 6605-00-815-1903 | 2022-02-33 | 238 | DIBBS |
| 6605-00-815-1903 | 2022-01-25 | 238 | DIBBS |
| 6605-00-815-1903 | 2021-10-298 | 5 | DIBBS |
| 6605-00-815-1903 | 2021-10-290 | 5 | DIBBS |
| 6605-00-815-1903 | 2017-05-142 | 1 | DIBBS-RFPs |
| 6605-00-815-1903 | 2014-11-329 | 1 | United States |
| 6605-00-815-1903 | 2014-09-259 | 147 | DIBBS |
| 6605-00-815-1903 | 2014-07-184 | 43 | DIBBS |
| 6605-00-815-1903 | 2014-06-153 | 65 | DIBBS |
| 6605-00-815-1903 | 2014-03-64 | 53 | DIBBS |
| 6605-00-815-1903 | 2013-10-296 | 1 | DIBBS-RFPs |
| 6605-00-815-1903 | 2013-10-283 | 60 | US |
| CB2125T5 | 2011-12-348 | 5 | Malaysia |
| 6605-00-815-1903 | 2011-12-336 | 1 | MANUAL |
| 6605-00-815-1903 | 2008-05-123 | 60 | DIBBS |
| 6605-00-815-1903 | 2008-04-106 | 1 | US |
| 6605-00-815-1903 | 2007-07-207 | 2 | US |
| 6605-00-815-1903 | 2007-02-47 | 141 | DIBBS |
| CB21255 | 2006-12-340 | 1 | United States |
Cross Reference | NSN 6605-00-815-1903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AQU-3/A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CB2125-5 | 70214 | G T A A LLC DBA AIRPATH INSTRUMENT COMPANY |
| CB2125T5 | 70214 | G T A A LLC DBA AIRPATH INSTRUMENT COMPANY |
| MIL-PRF-38214 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC38214 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6605-00-815-1903
Related Products | NSN 6605-00-815-1903
Technical Data | NSN 6605-00-815-1903
| Characteristic | Specifications |
|---|---|
| INSTRUMENT TYPE | WET |
| FLUID TYPE | 0IL |
| BOWL SHAPE | SPHERICAL |
| BOWL ELEMENT TYPE | CARD |
| CARD SIZE | 1.750 INCHES |
| DESIGN TYPE | SIDE READING |
| ILLUMINATED FEATURE | INCLUDED |
| ILLUMINATED LOCATION | OVER |
| DIAL FINISH | FLUORESCENT |
| MOUNTING METHOD | PANEL |
| COMPENSATING FEATURE | INCLUDED |
| COMPENSATOR TYPE | CYLINDERS |
| HEELING CORRECTORS | PROVIDED |
| SMALLEST INCREMENT IN DEG | 5.0 CARD |
| OVERALL LENGTH | 3.281 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| SPECIAL FEATURES | BLUE FILTERED LIGHTING, 5 VOLT AC OR 5 VOLT DV |
| NONDEFINITIVE SPEC/STD DATA | AQU-3/A TYPE |
| III UNPACKAGED UNIT WEIGHT | 0.875 POUNDS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AQU-3/A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-38214 |
Restrictions/Controls & Freight Information | NSN 6605-00-815-1903
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020020 | AUTO WHEEL PARTS ETC |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
