NSN 6625-01-038-6826 3020763, 302-0763, 36.1884
Product Details | VOLTMETER
6625-01-038-6826 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: 3020763, 302-0763, 36.1884, 361884, 363020, 363-020, 55R, 55RS10584, 55R-S10584, 55RS12524, 55R-S12524, 63118047, 631-18047, 725008, 72-5008, 6625-01-038-6826, 01-038-6826, 6625000386826 , 6625010386826, 010386826
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 10 APR 1977 | 01-038-6826 | 16449 ( VOLTMETER ) |

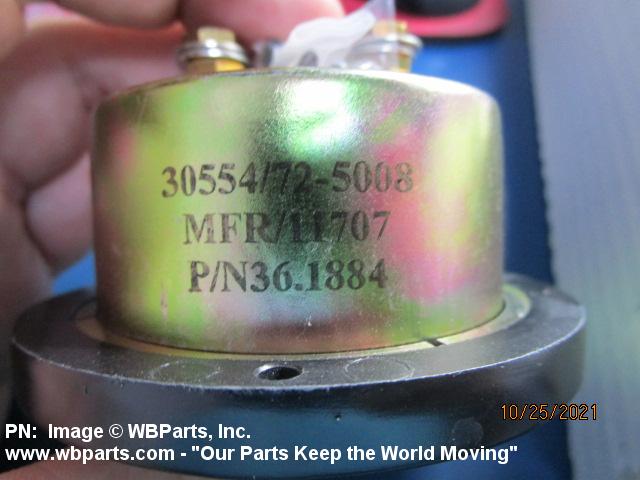

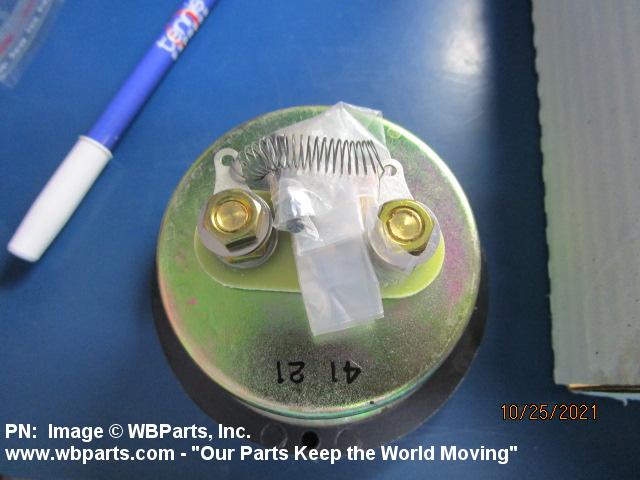

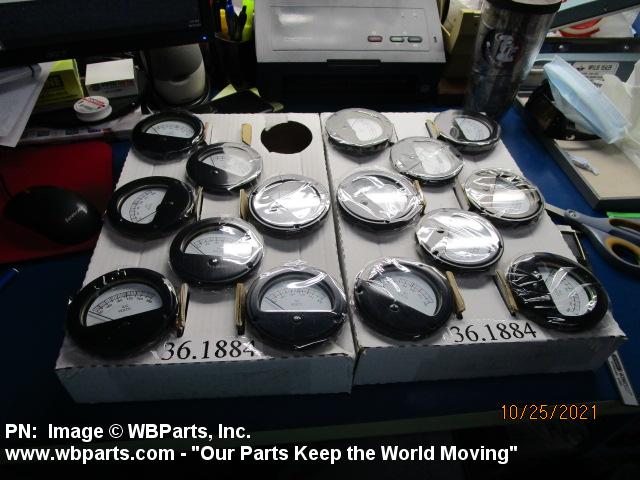

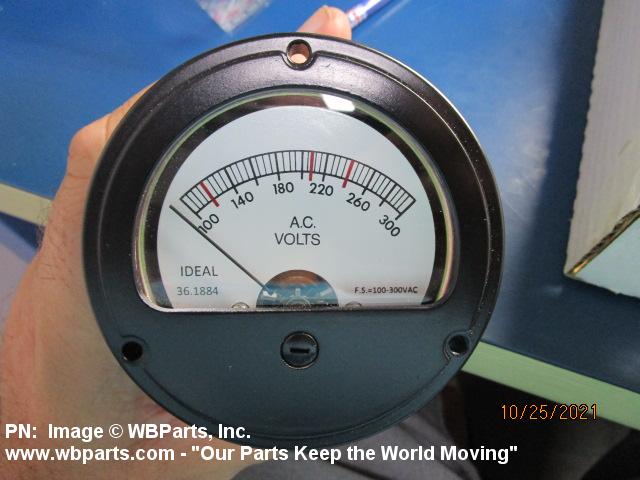

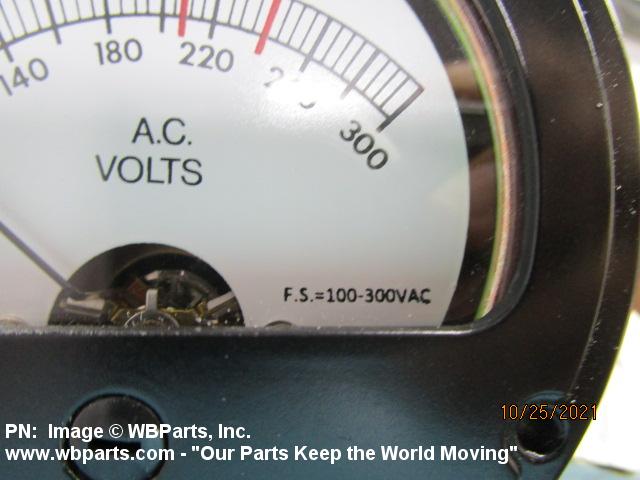

Drawings & Photos | NSN 6625-01-038-6826
Demand History | NSN 6625-01-038-6826
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-038-6826 | 2025-04-92 | 2 | United States |
| 6625-01-038-6826 | 2024-03-80 | 1 | US |
| 6625-01-038-6826 | 2023-04-100 | 1 | US |
| 6625-01-038-6826 | 2022-12-341 | 1 | US |
| 6625-01-038-6826 | 2022-10-299 | 1 | US |
| 6625-01-038-6826 | 2022-05-130 | 1 | AE |
| 361884 | 2022-02-45 | 1 | US |
| 6625-01-038-6826 | 2021-09-273 | 15 | United States |
| 6625-01-038-6826 | 2021-09-251 | 15 | United States |
| 6625-01-038-6826 | 2021-08-229 | 6 | United States |
| 6625-01-038-6826 | 2021-08-225 | 1 | US |
| 6625-01-038-6826 | 2021-08-225 | 1 | CA |
| 36.1884 | 2020-03-72 | 224 | DIBBS |
| 363-020 | 2020-03-72 | 224 | DIBBS |
| 631-18047 | 2020-03-72 | 224 | DIBBS |
| 72-5008 | 2020-03-72 | 224 | DIBBS |
| 36.1884 | 2019-12-352 | 203 | DIBBS |
| 363-020 | 2019-12-352 | 203 | DIBBS |
| 631-18047 | 2019-12-352 | 203 | DIBBS |
| 72-5008 | 2019-12-352 | 203 | DIBBS |
| 36.1884 | 2019-12-336 | 271 | DIBBS |
| 363-020 | 2019-12-336 | 271 | DIBBS |
| 631-18047 | 2019-12-336 | 271 | DIBBS |
| 72-5008 | 2019-12-336 | 271 | DIBBS |
| 6625-01-038-6826 | 2019-10-301 | 1 | United States |
| 6625-01-038-6826 | 2019-07-190 | 5 | United States |
| 725008 | 2018-12-338 | 10 | us |
| 6625-01-038-6826 | 2018-09-261 | 1 | United States |
| 6625-01-038-6826 | 2018-04-110 | 210 | DIBBS |
| 6625-01-038-6826 | 2018-04-99 | 320 | DIBBS |
| 6625-01-038-6826 | 2018-04-99 | 210 | DIBBS |
| 6625-01-038-6826 | 2018-03-88 | 320 | DIBBS |
| 6625-01-038-6826 | 2018-03-77 | 10 | US |
| 6625-01-038-6826 | 2018-03-65 | 1 | US |
| 6625-01-038-6826 | 2017-12-356 | 210 | DIBBS |
| 6625-01-038-6826 | 2017-12-345 | 210 | DIBBS |
| 6625-01-038-6826 | 2017-06-179 | 225 | DIBBS |
| 6625-01-038-6826 | 2017-06-164 | 225 | DIBBS |
| 6625-01-038-6826 | 2017-05-135 | 206 | DIBBS |
| 6625-01-038-6826 | 2017-05-124 | 206 | DIBBS |
| 6625-01-038-6826 | 2014-09-256 | 3 | US |
| 6625-01-038-6826 | 2014-05-138 | 362 | DIBBS |
| 6625-01-038-6826 | 2014-03-82 | 317 | DIBBS |
| 6625-01-038-6826 | 2013-12-347 | 229 | DIBBS |
| 6625-01-038-6826 | 2013-12-338 | 20 | US |
| 6625-01-038-6826 | 2013-11-332 | 229 | DIBBS |
| 6625-01-038-6826 | 2013-09-252 | 216 | DIBBS |
| 6625-01-038-6826 | 2013-06-156 | 387 | DIBBS |
| 6625-01-038-6826 | 2013-04-101 | 1 | MANUAL |
| 6625-01-038-6826 | 2013-03-81 | 274 | DIBBS |
| 6625-01-038-6826 | 2011-06-159 | 2 | US |
| 725008 | 2011-03-61 | 10 | United States |
| 725008 | 2011-02-53 | 7 | United States |
| 6625-01-038-6826 | 2010-11-333 | 327 | DIBBS |
| 6625-01-038-6826 | 2010-06-160 | 757 | DIBBS |
| 6625-01-038-6826 | 2010-03-85 | 426 | DIBBS |
| 6625-01-038-6826 | 2010-01-04 | 616 | DIBBS |
| 6625-01-038-6826 | 2009-10-289 | 1 | US |
| 6625-01-038-6826 | 2009-10-289 | 1 | US |
| 6625-01-038-6826 | 2009-07-190 | 1 | United States |
| 6625-01-038-6826 | 2009-04-106 | 1 | US |
| 6625-01-038-6826 | 2009-04-104 | 443 | DIBBS |
| 6625-01-038-6826 | 2007-03-79 | 1140 | DIBBS |
| 6625-01-038-6826 | 2006-11-317 | 5 | DE |
Cross Reference | NSN 6625-01-038-6826
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302-0763 | 44940 | CUMMINS POWER GENERATION INC. |
| 36.1884 | 11707 | IDEAL PRECISION METER CO |
| 363-020 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 55R | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
| 55R-S10584 | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
| 55R-S12524 | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
| 631-18047 | 77221 | PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY |
| 6625010386826 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 72-5008 | 20723 | VALCORE MANUFACTURING LLC DBA USE CAGE CODE 04YE2 FOR |
| 72-5008 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-038-6826
Related Products | NSN 6625-01-038-6826
Technical Data | NSN 6625-01-038-6826
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC OR NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 100.0 TO 300.0 VOLTS, AC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -3.0 TO 3.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 40 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| FREQUENCY RESPONSE RANGE | 50.000 TO 60.000 HERTZ |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG AND 2 THREADED STUD |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 3000.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| PHASE | SINGLE |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.800 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.660 INCHES MAXIMUM |
| OVERALL DIAMETER | 3.510 INCHES MAXIMUM |
| OVERALL LENGTH | 2.850 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED STUD |
| MOUNTING STUD DIAMETER | 0.138 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.500 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 3.160 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | ENAMEL SEMIGLOSS |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | COLD RESISTANT AND HEAT RESISTANT AND SHOCK RESISTANT AND SUBMERSIBLE AND VIBRATION RESISTANT AND WATERTIGHT |
| FURNISHED ITEMS AND QUANTITY | MTG HDW 3; TERMINAL HDW 2 |
| SPECIAL MARKINGS | DOUBLE WIDTH RED MARKS AT 120,208 AND 240 V |
| FEATURES PROVIDED | LUMINOUS SCALE MARKING AND MAGNETIC SHIELD AND ZERO ADJUSTER |
| SPECIAL FEATURES | RUGGEDIZED |
| TEST DATA DOCUMENT | 81349-MIL-M-10304/26 SPECIFICATION |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
