NSN 6645-00-089-8842 M3971/1-5, M3971/1-5-S , M397115
Product Details | TIME TOTALIZING METER
6645-00-089-8842 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: M3971/1-5, M3971/1-5-S , M397115, M397115S, C1JZ10951A, MILDTL3971, MIL-DTL-3971 , MILDTL3971E, MIL-DTL-3971E, PC5120376, 730507, 73-0507 , 771, 119379 , 6645-00-089-8842, 00-089-8842, 6645000898842, 000898842
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 02 AUG 1967 | 00-089-8842 | 08066 ( METER, TIME TOTALIZING ) |

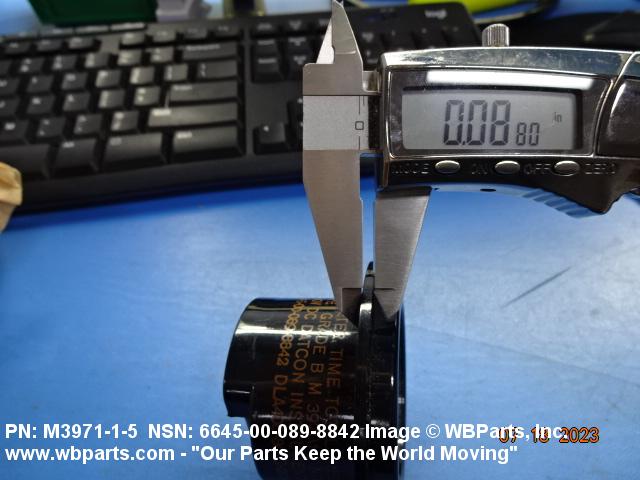

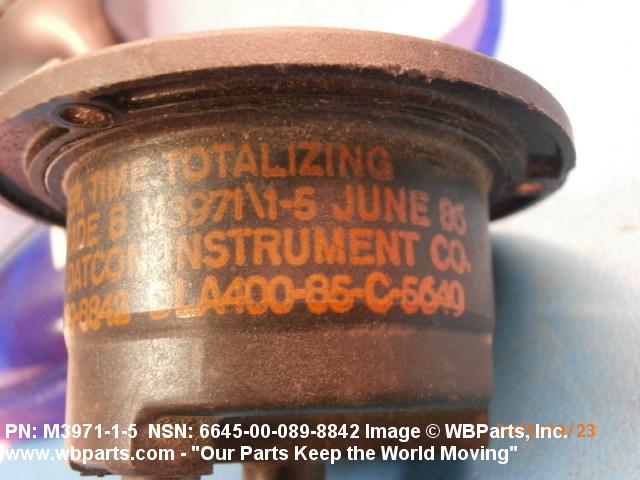

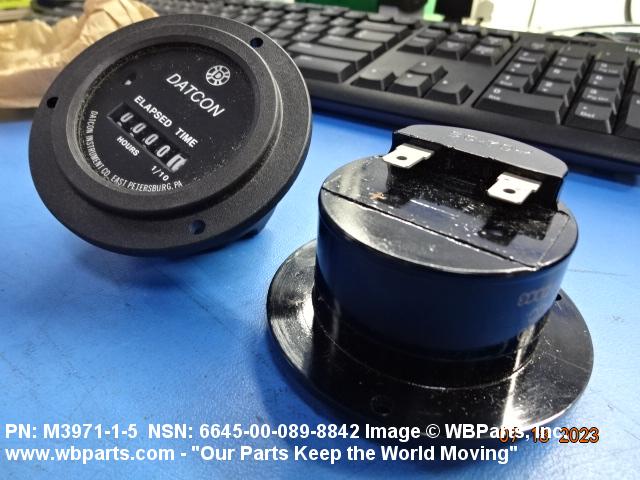

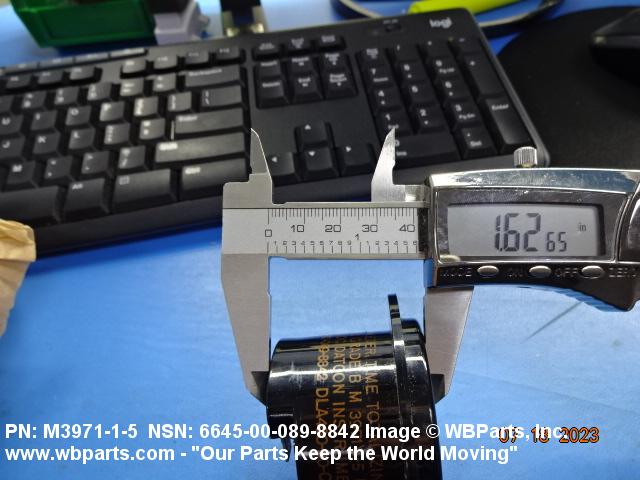

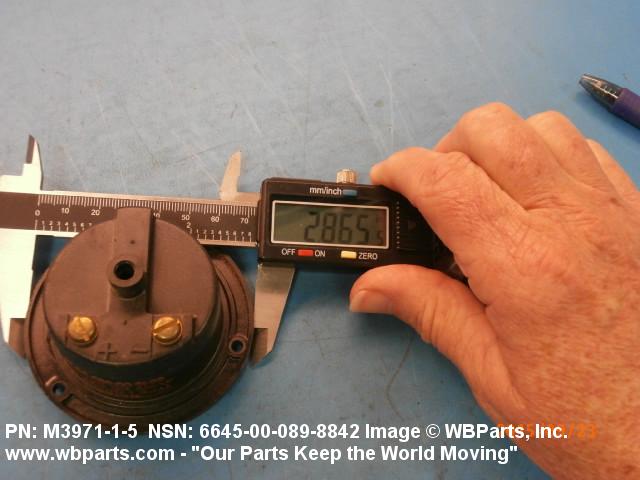

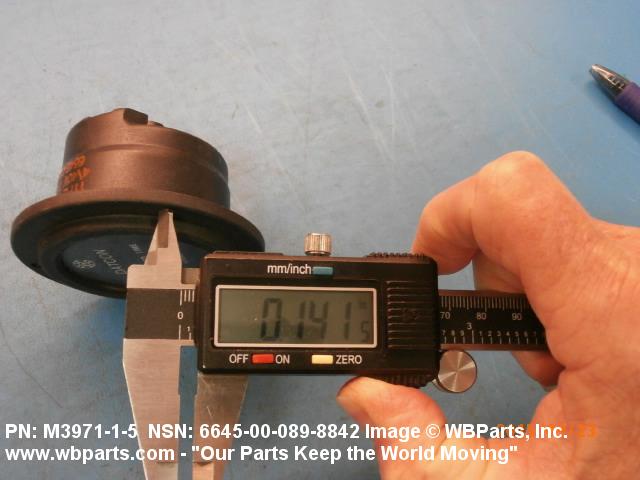

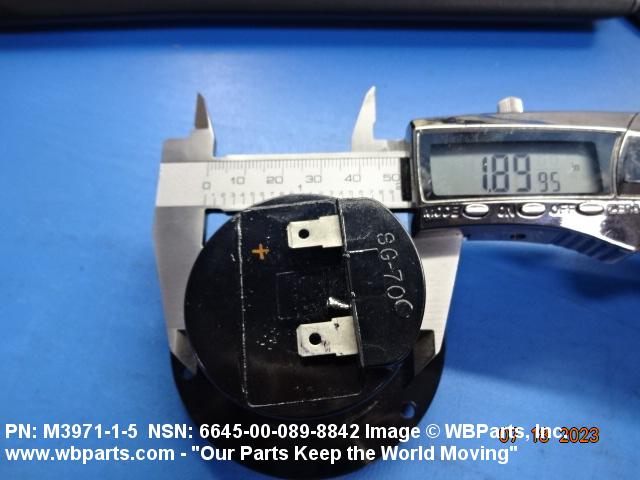

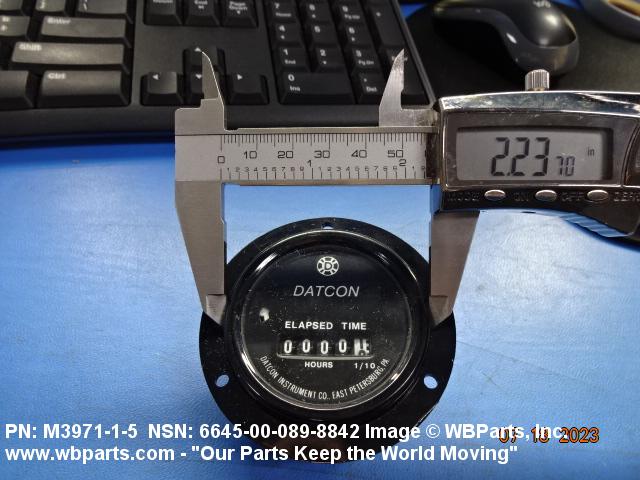

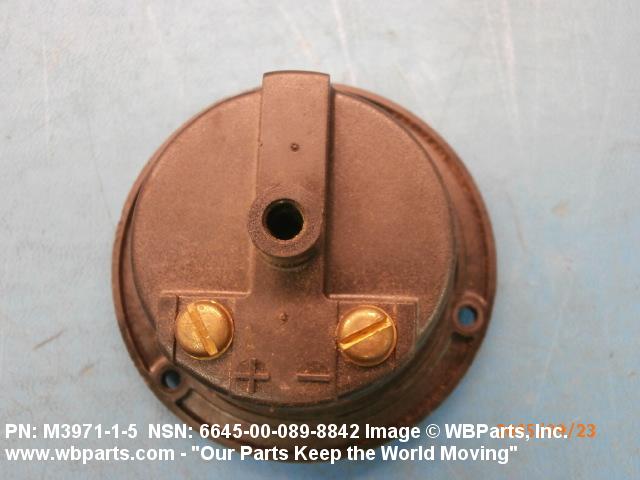

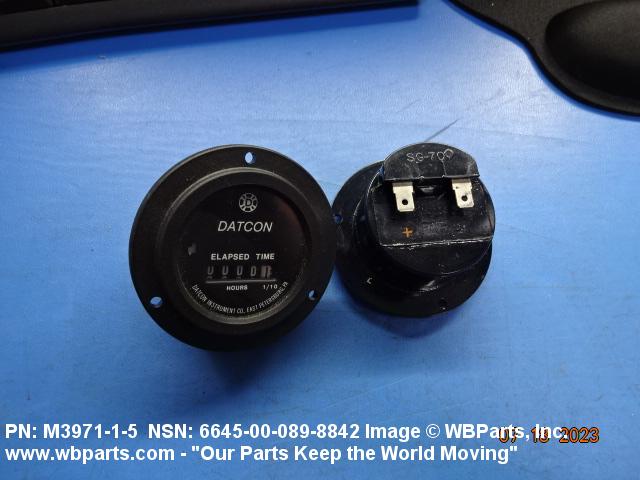

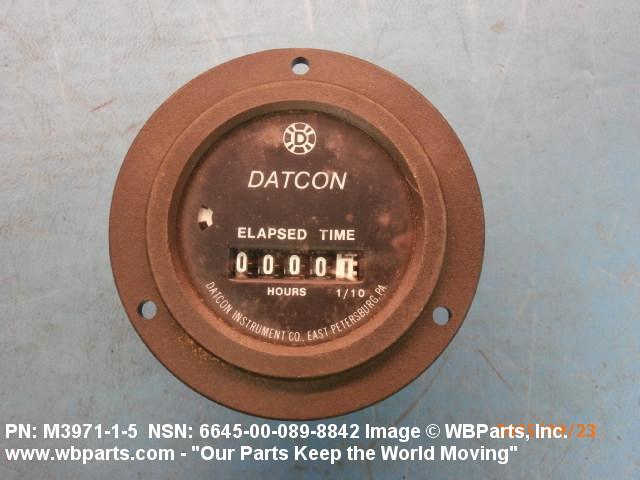

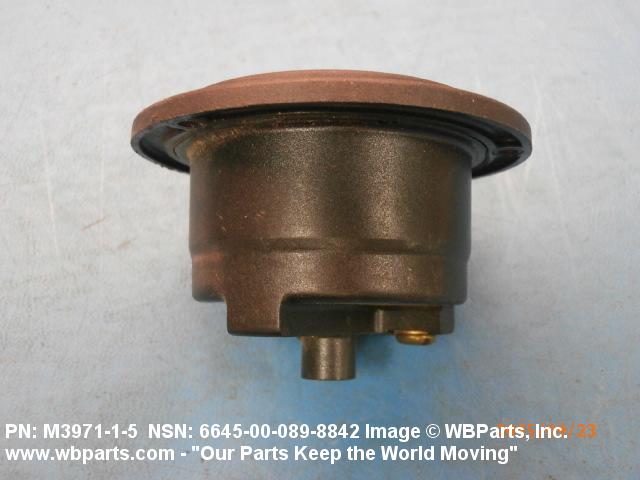

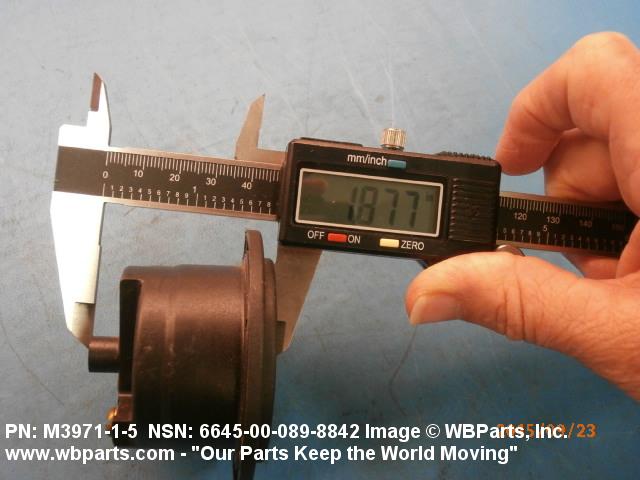

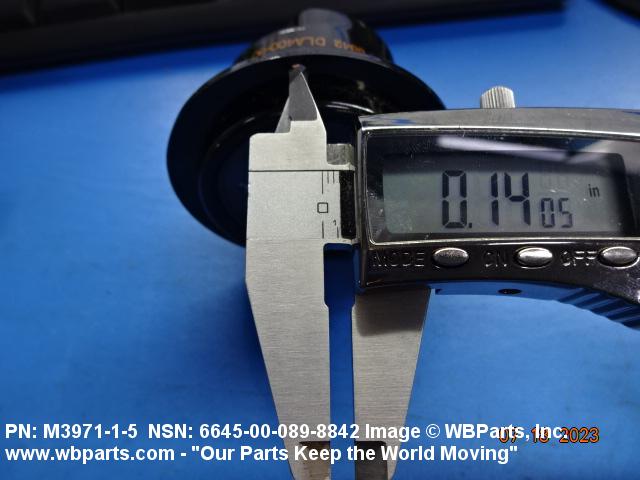

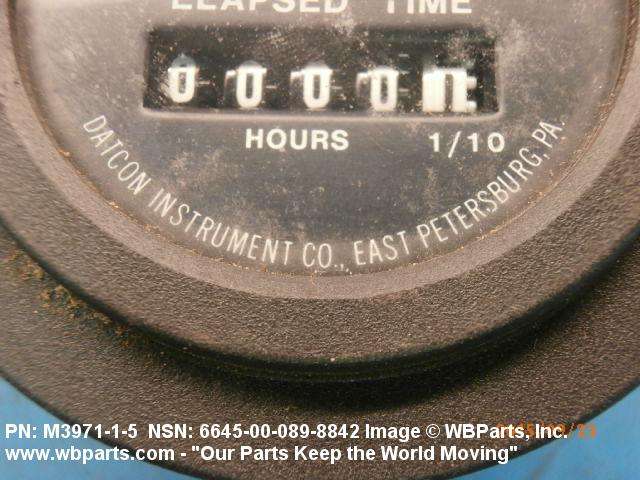

Drawings & Photos | NSN 6645-00-089-8842
Demand History | NSN 6645-00-089-8842
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-00-089-8842 | 2025-02-32 | 5 | Taiwan |
| 6645-00-089-8842 | 2024-04-94 | 1 | United States |
| 6645-00-089-8842 | 2023-06-178 | 1 | US |
| 6645-00-089-8842 | 2023-06-178 | 1 | United States |
| 6645-00-089-8842 | 2023-06-166 | 2 | United States |
| 6645-00-089-8842 | 2022-12-350 | 5 | United States |
| 6645-00-089-8842 | 2022-07-187 | 9 | Taiwan |
| 6645-00-089-8842 | 2022-03-85 | 9 | TW |
| 6645-00-089-8842 | 2021-08-242 | 50 | us |
| 6645-00-089-8842 | 2021-08-229 | 6 | United States |
| 6645-00-089-8842 | 2021-08-225 | 8 | CA |
| 6645-00-089-8842 | 2020-06-174 | 6 | US |
| 6645-00-089-8842 | 2020-02-42 | 12 | United States |
| 6645-00-089-8842 | 2019-12-345 | 12 | KW |
| 6645-00-089-8842 | 2019-07-190 | 8 | United States |
| 6645-00-089-8842 | 2019-07-190 | 8 | United States |
| C1JZ10951A | 2019-02-59 | 5 | United States |
| 6645-00-089-8842 | 2019-02-59 | 5 | AE |
| 6645-00-089-8842 | 2019-02-43 | 19 | United States |
| 6645-00-089-8842 | 2018-12-345 | 10 | United States |
| C1JZ10951A | 2018-11-317 | 3 | Kuwait |
| 6645-00-089-8842 | 2018-09-270 | 10 | TW |
| 6645-00-089-8842 | 2018-09-268 | 6 | KW |
| 6645-00-089-8842 | 2018-09-256 | 1 | Singapore |
| 6645-00-089-8842 | 2018-03-82 | 2 | United States |
| 6645-00-089-8842 | 2018-03-81 | 2 | United Arab Emirates |
| 6645-00-089-8842 | 2018-03-77 | 10 | US |
| 6645-00-089-8842 | 2017-11-324 | 1 | United States |
| 6645-00-089-8842 | 2017-11-319 | 1 | US |
| 6645-00-089-8842 | 2017-09-271 | 6 | US |
| 6645-00-089-8842 | 2017-09-270 | 6 | United Arab Emirates |
| 6645-00-089-8842 | 2017-06-156 | 4 | United States |
| 6645-00-089-8842 | 2017-01-10 | 5 | United States |
| 6645-00-089-8842 | 2017-01-10 | 5 | United Arab Emirates |
| 6645-00-089-8842 | 2016-08-235 | 1 | United Arab Emirates |
| 6645-00-089-8842 | 2016-07-193 | 3 | United States |
| 6645-00-089-8842 | 2015-10-299 | 10 | Saudi Arabia |
| 6645-00-089-8842 | 2015-06-176 | 1 | Singapore |
| 6645-00-089-8842 | 2015-06-175 | 1 | Singapore |
| 6645-00-089-8842 | 2014-04-91 | 1 | US |
| 6645-00-089-8842 | 2014-02-34 | 1 | United States |
| 6645-00-089-8842 | 2012-02-48 | 1 | us |
| 6645-00-089-8842 | 2011-07-184 | 50 | DIBBS |
| 6645-00-089-8842 | 2011-06-161 | 1600 | DIBBS |
| 6645-00-089-8842 | 2011-03-86 | 50 | DIBBS |
| 6645-00-089-8842 | 2011-03-68 | 161 | MANUAL |
| 119379 | 2010-03-68 | 2 | United States |
Cross Reference | NSN 6645-00-089-8842
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 119379 | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| 119379 | K4733 | HYSTER EUROPE LTD |
| 73-0507 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| 771 | 16476 | MAXIMA TECHNOLOGIES & SYSTEMS LLC DBA MAXIMA TECHNOLOGIES |
| C1JZ10951A | 57526 | FORD MOTOR CO |
| M3971/1-5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M3971/1-5-S | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-3971 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-3971E | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PC5120376 | C7432 | POWER COMPONENTS (DEUTSCHLAND) GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6645-00-089-8842
Related Products | NSN 6645-00-089-8842
Technical Data | NSN 6645-00-089-8842
| Characteristic | Specifications |
|---|---|
| INDICATOR TYPE | DRUM REGISTER |
| MEASUREMENT UNIT | HOURS |
| MAXIMUM MEASUREMENT | 9999.90 |
| SMALLEST INCREMENT INDICATED | 0.10 |
| MARKING COLOR | WHITE NUMERALS FOR HOURS,BLACK NUMERALS FOR TENTHS |
| BACKGROUND COLOR | BLACK BACKGROUND ON HR WHEELS,WHITE BACKGROUND ON TENTHS WHEEL |
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| ELECTRICAL MOVEMENT TYPE | MAGNETIC |
| CURRENT TYPE | DC |
| VOLTAGE RATING | 4.0 VOLTS MINIMUM AND 40.0 VOLTS MAXIMUM |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | SOLDER LUG OR STUD |
| CASE MATERIAL | METAL OR PLASTIC |
| HERMETIC PROTECTION | NOT PROVIDED |
| UNIT TYPE | MOUNTED |
| MOUNTING TYPE | PANEL |
| MOUNTING METHOD | FLUSH |
| MOUNTING FLANGE DIAMETER | 2.875 INCHES MAXIMUM |
| BODY DIAMETER | 2.210 INCHES MAXIMUM |
| BODY DEPTH | 3.000 INCHES MAXIMUM |
| MOUNTING CONFIGURATION | THREE 0.150 IN. DIA MTG HOLES ON 1.265 IN. RADIUS SPACED 120 DEG APART |
| NONDEFINITIVE SPEC/STD DATA | B GRADE AND I TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-3971E |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M3971/1-5 |
Restrictions/Controls & Freight Information | NSN 6645-00-089-8842
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
